S-COB Floodlight|Ceramic Substrate SMT Light Source Anti-sulfurization|Long Service Life|Low Decay|Equipped with ZHAGA Standard Optics|50W-320W

S-COB Floodlight|Ceramic Substrate SMT Light Source Anti-sulfurization|Long Service Life|Low Decay|Equipped with ZHAGA Standard Optics|50W-320W

1. Application scenarios: The product covers 50W to 320W, providing cost-effective solutions, and is used in high-power lighting places such as stadiums, airport high-pole lighting, docks, and building projection;

2. Light source characteristics: KWCOB's ceramic COB surface mount light source S-COB, low thermal resistance packaging process, significantly reduces the center temperature of the light source. Adopting a highly reflective ceramic substrate, there is no risk of silver plating sulfide, no resin bracket aging problems, and a longer service life design;

3. Heat dissipation: The light source array is dispersed, natural heat diffusion, reducing heat dissipation costs, combined with vertical fin structure design and up and down convection ventilation, optimize and improve heat dissipation efficiency;

4. Optics: Adaptive matrix lens, there are more than 100 optical solutions to choose from, which can meet the lighting needs of different occasions such as outdoor lighting and indoor projection of buildings. Customized lighting solutions can be provided according to the specific scene requirements of customers;

5. Reliability: Conventional 5-year warranty;

    Related Products

    Installation Type

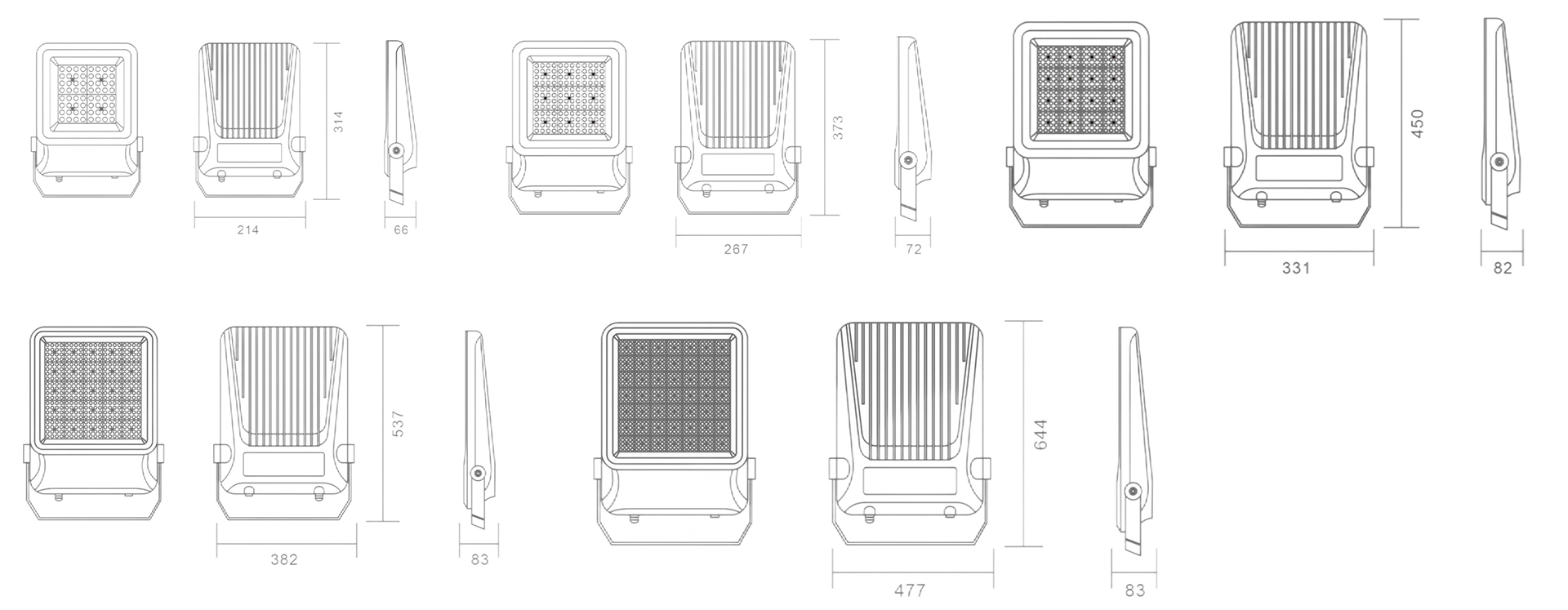

    Ceramic Substrate COB SMT light source Floodlight size

    Technical Parameters

    Item

    KWCOB-B11TG02K0050A

    KWCOB-B11TG02K0100A

    KWCOB-B11TG02K0200A

    KWCOB-B11TG02K0240A

    KWCOB-B11TG02K0320A

    Power

    50W

    100W

    150-200W

    200/240W

    320W

     Luminous Efficiency

    ≥130lm/w

    ≥130lm/w

    ≥130lm/w

    ≥130lm/w

    ≥130lm/w

    Product Dimensions

    L214mm * W66mm * H314mm

    L267mm * W72mm * H373mm

    L331mm * W82mm * H450mm

    L382mm * W83mm * H537mm

    L477mm * W83mm * H644mm

    Net Weight

    2.4KG

    3.9KG

    5.2KG

    11.3kg

    13.2KG

    CRI(Ra)

    Ra70、80、90(Standard Ra80)

     Color Temperature

    2700-6500K(Standard 5000K)

    IP Rating

    IP67

    The Beam Angle

    30°/45°/60°/90°/120°/road lighting beam angle/asymmetric beam angle/Other beam angle available by customization

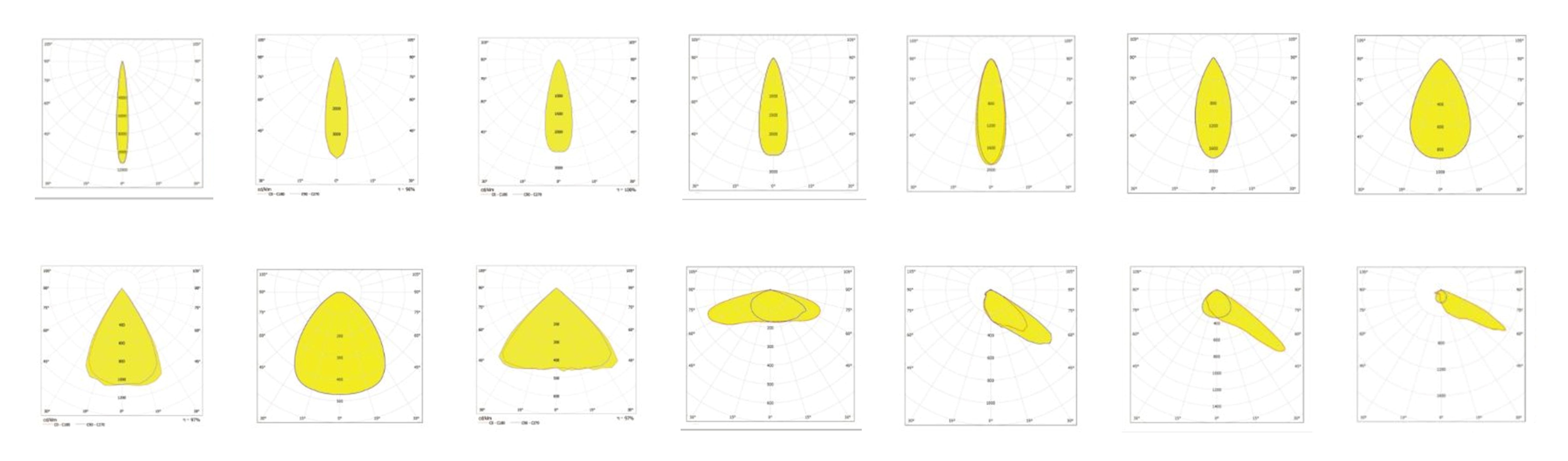

    Part of the light distribution curves

    Ceramic Substrate COB SMT light source Floodlight distribution curve
