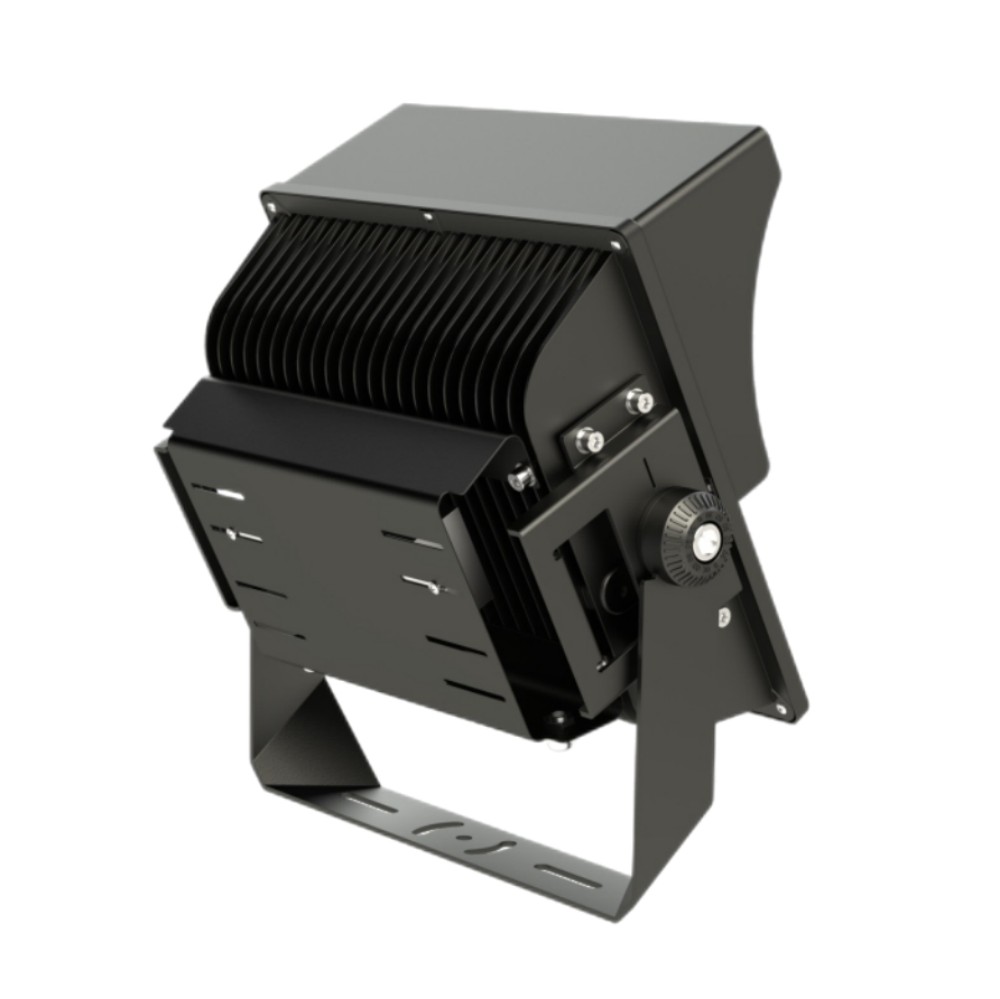

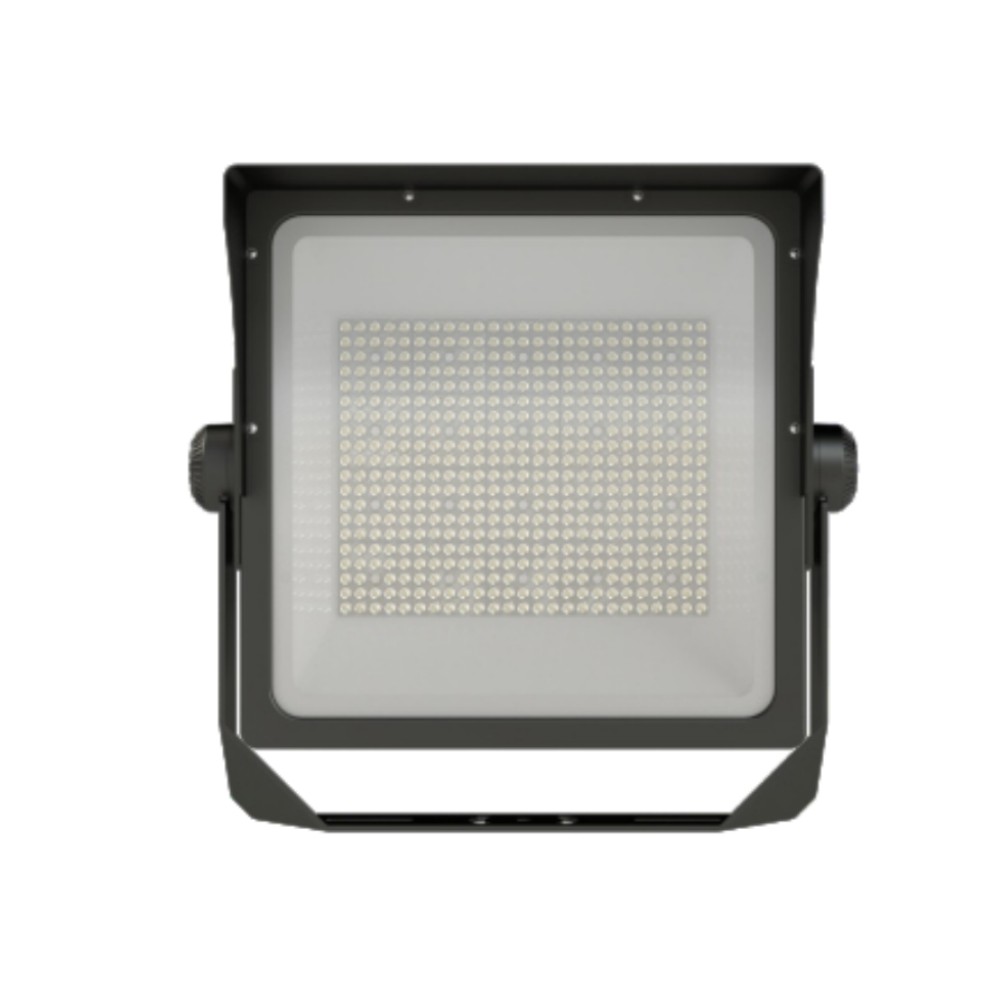

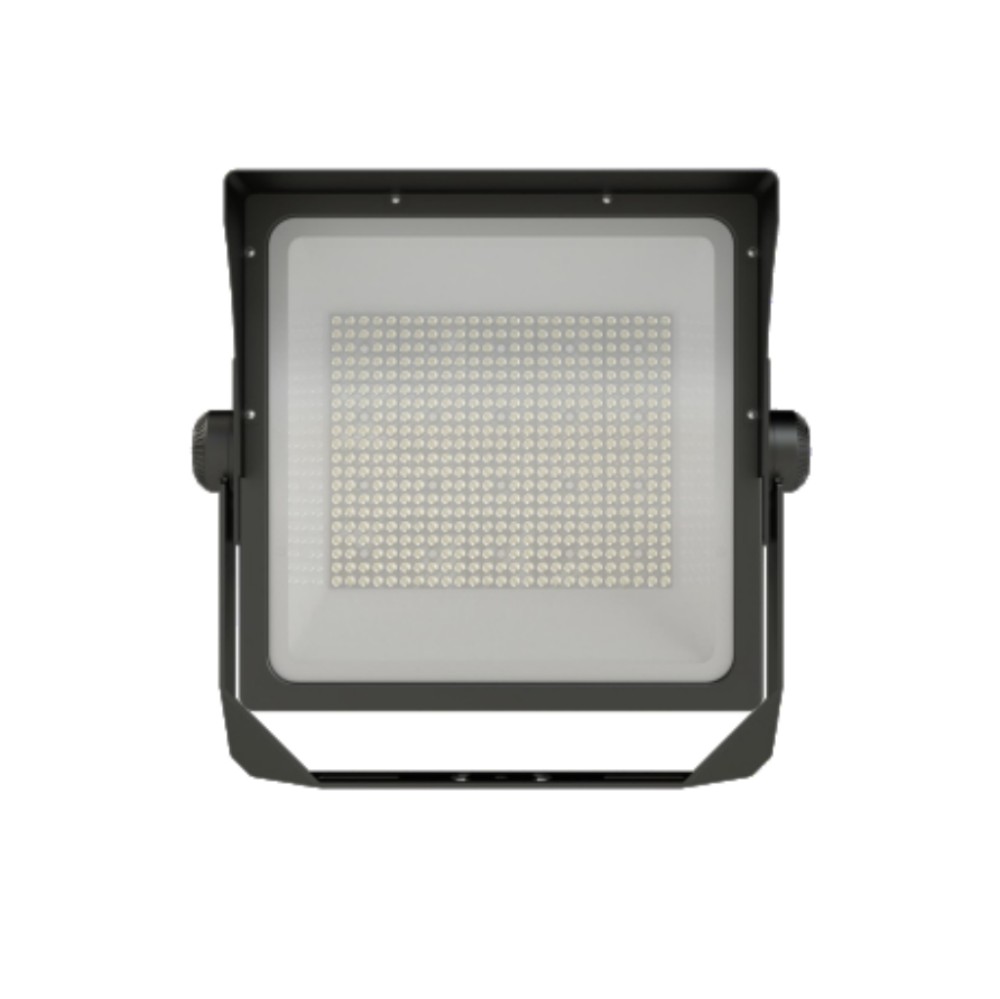

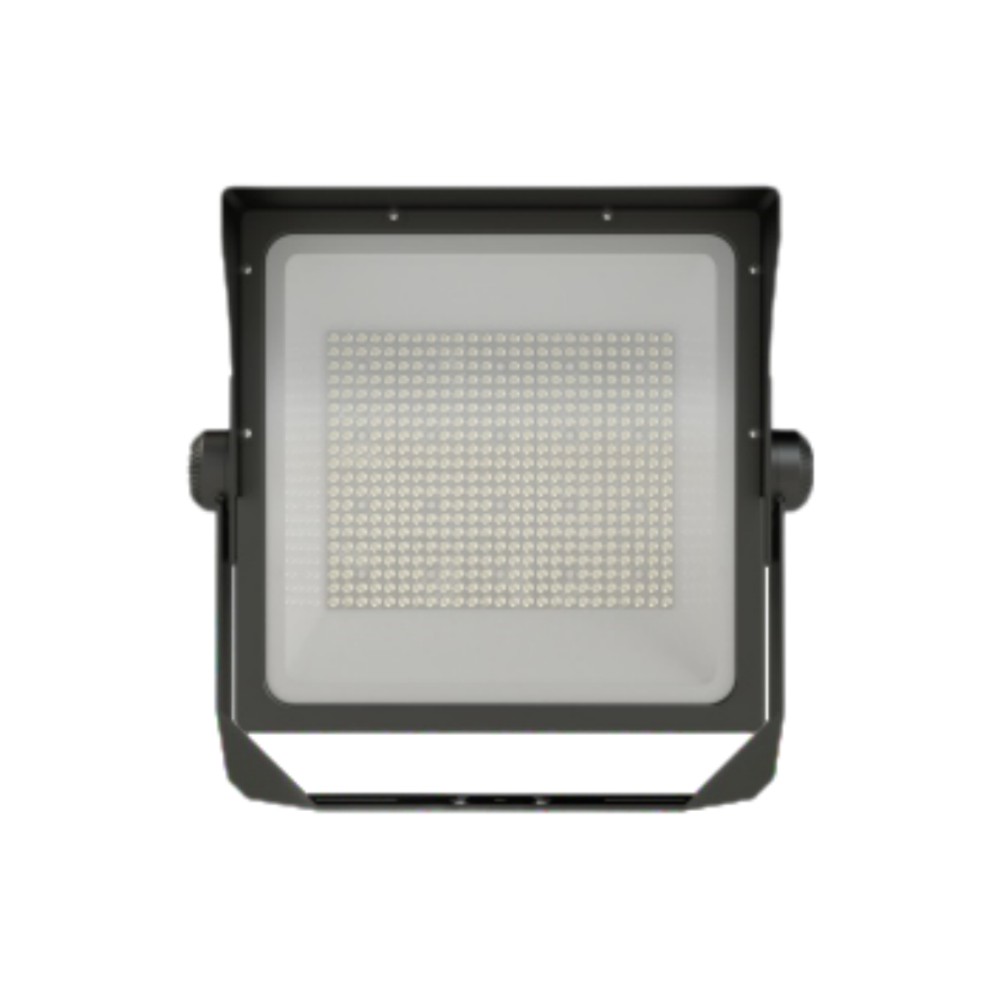

SCOB Floodlight|Ceramic Substrate SMT Light Source|Anti-sulfurization|Long Service Life|Low Decay|Equipped with ZHAGA Standard Optics|240W-720W

SCOB Floodlight|Ceramic Substrate SMT Light Source|Anti-sulfurization|Long Service Life|Low Decay|Equipped with ZHAGA Standard Optics|240W-720W

1. Application scenarios: high-power product solutions above 200W, suitable for high-power lighting places such as stadiums, airport high pole lighting, docks, and building projection;

2. Light source characteristics: KWCOB's ceramic COB surface mount light source S-COB, low thermal resistance packaging process, significantly reduces the center temperature of the light source. Adopting high-reflection ceramic substrate, there is no risk of silver plating sulfide, no resin bracket aging trouble, and longer service life design;

3. Heat dissipation: The light source array is dispersed, natural heat diffusion, reducing the heat dissipation cost, combined with the vertical fin structure design and up and down convection ventilation, optimize and improve the heat dissipation efficiency;

4. Optics: Adaptive matrix lens, there are more than 100 optical solutions to choose from, which can meet the lighting needs of different occasions such as stadiums, airport docks, and building projection. Customized lighting solutions can be provided according to the specific scene requirements of customers;

5. Reliability: conventional 5-year warranty;

    Related Products

    Installation Type

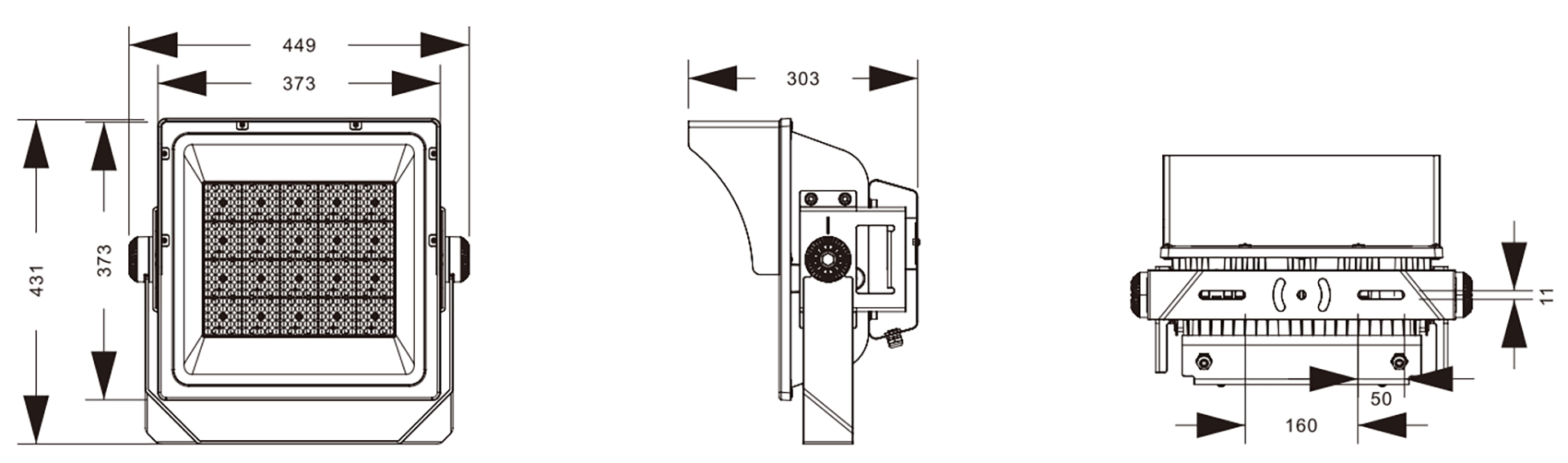

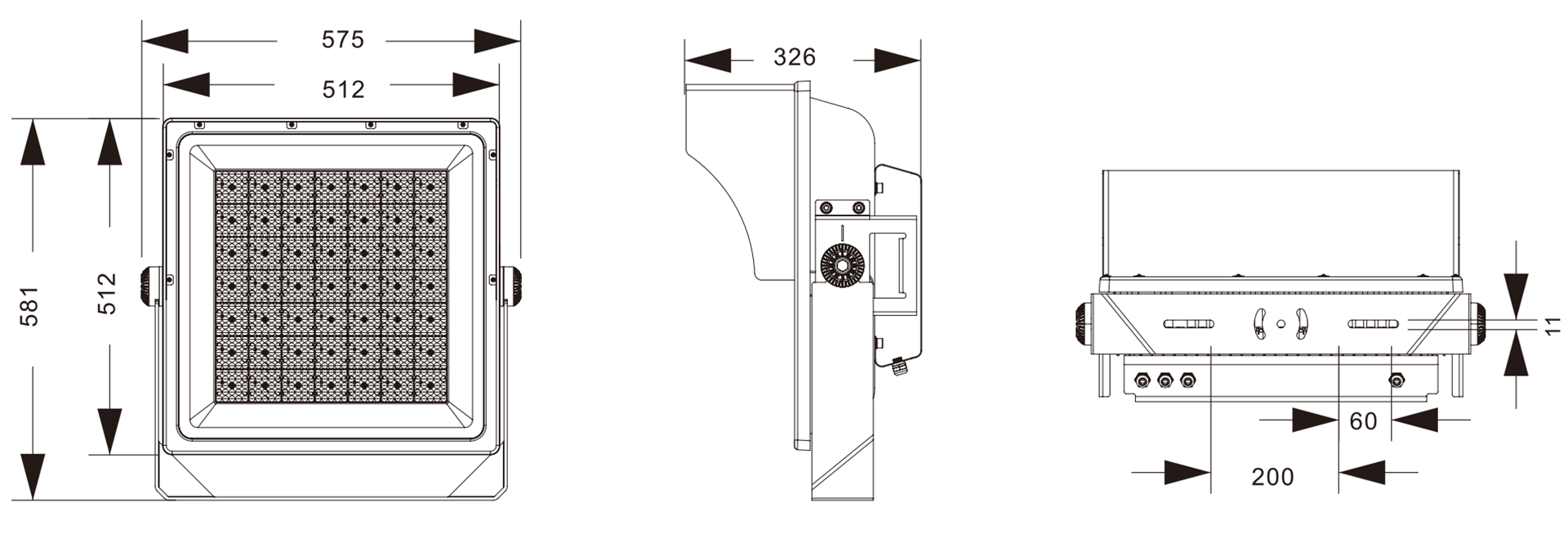

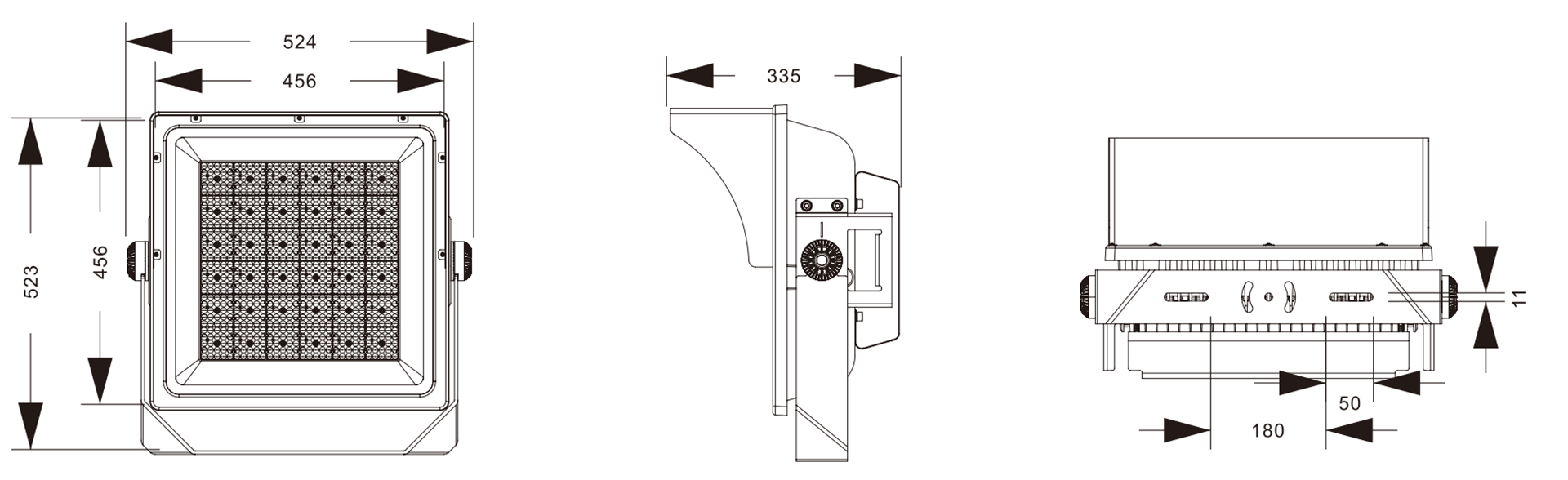

    SCOB Floodlight (1)SCOB Floodlight (2)SCOB Floodlight (3)

    Technical Parameters

    Item

    KWCOB-R10TG01K0240A

    KWCOB-X10TG01K0480A

    KWCOB-X10TG01K0720A

    Power

    240W

    480W

    720W

     Luminous Efficiency

    ≥130lm/w

    ≥130lm/w

    ≥130lm/w

    Product Dimensions

    L449mm*W303mm*H431mm

    L524mm*W335mm*H523mm

    L575mm*W326mm*H581mm

    Net Weight

    11.2KG

    20.5KG

    27.5KG

    CRI(Ra)

    Ra70、80、90(Standard Ra80)

     Color Temperature

    2700-6500K(Standard 5000K)

    IP Rating

    IP67

    The Beam Angle

    25°/55°/90°/120°

    Part of the light distribution curves

    ceramic-substrate-cob-smt-light-source-floodlight-distribution-curve
