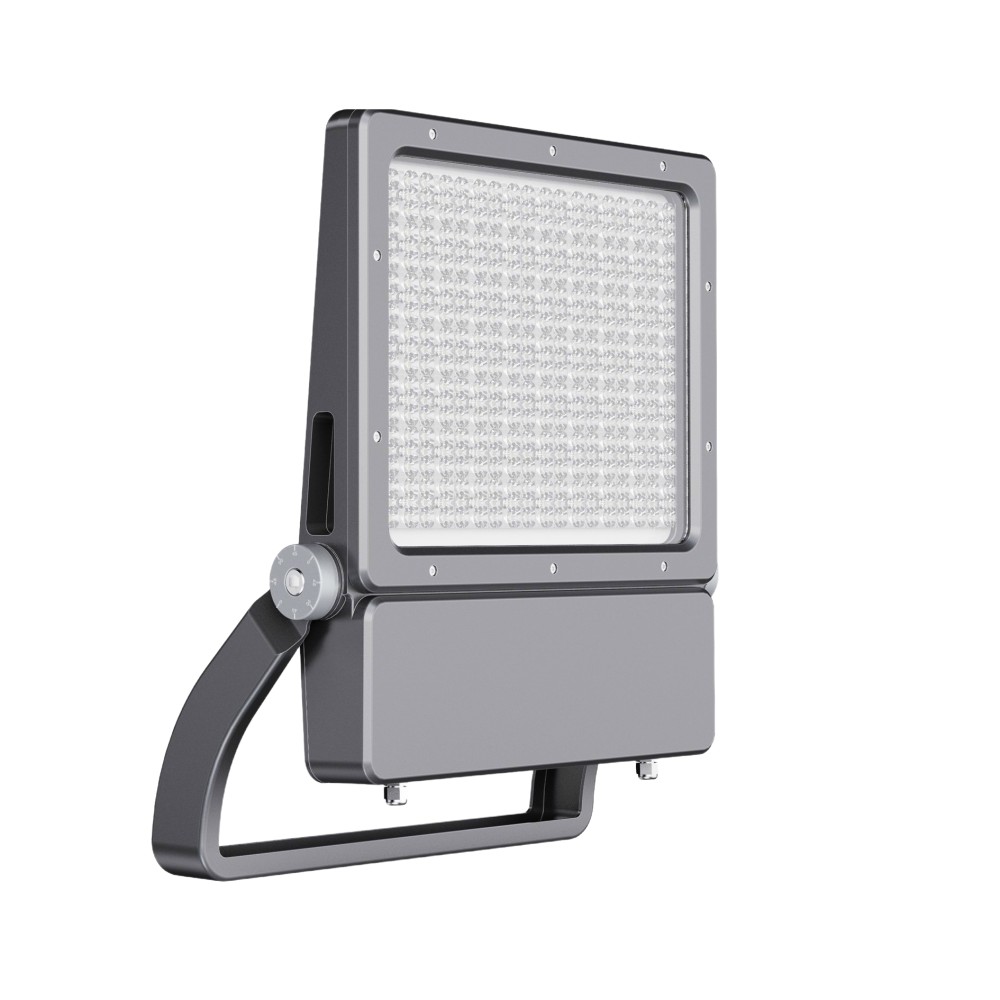

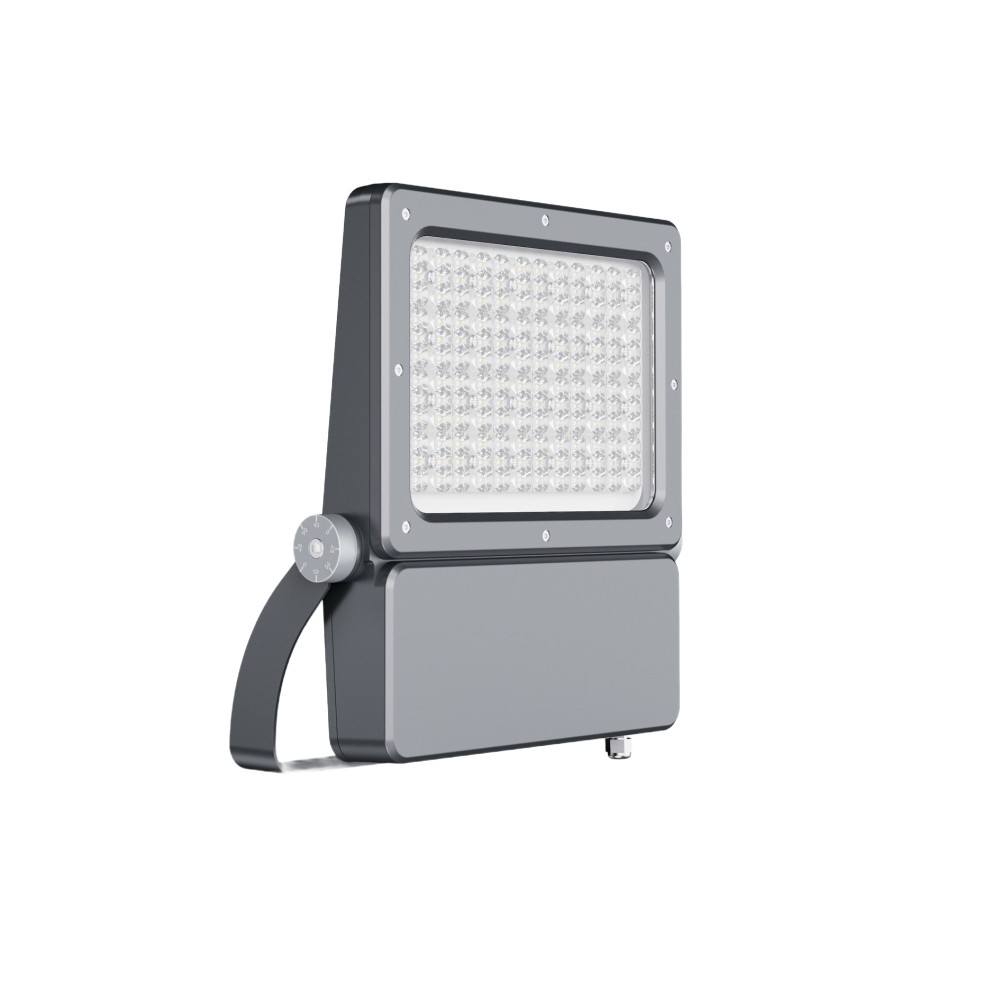

SCOB Floodlight|Ceramic Substrate SMT Light Source Anti-sulfurization|Long Service Life|Low Decay|Equipped with ZHAGA Standard Optics|200W-1000W

SCOB Floodlight|Ceramic Substrate SMT Light Source Anti-sulfurization|Long Service Life|Low Decay|Equipped with ZHAGA Standard Optics|200W-1000W

1. Application scenarios: high-power product solutions above 200W, suitable for high-power lighting places such as stadiums, airport high pole lighting, docks, and building projection;

2. Light source characteristics: KWCOB's ceramic COB surface mount light source S-COB, low thermal resistance packaging process, significantly reduces the center temperature of the light source. Adopting high-reflection ceramic substrate, there is no risk of silver plating sulfide, no resin bracket aging trouble, and longer service life design;

3. Heat dissipation: The light source array is dispersed, natural heat diffusion, reducing the heat dissipation cost, combined with the vertical fin structure design and up and down convection ventilation, optimize and improve the heat dissipation efficiency;

4. Optics: Adaptive matrix lens, there are more than 100 optical solutions to choose from, which can meet the lighting needs of different occasions such as stadiums, airport docks, and building projection. Customized lighting solutions can be provided according to the specific scene requirements of customers;

5. Reliability: conventional 5-year warranty;

    Related Products

    Installation Type

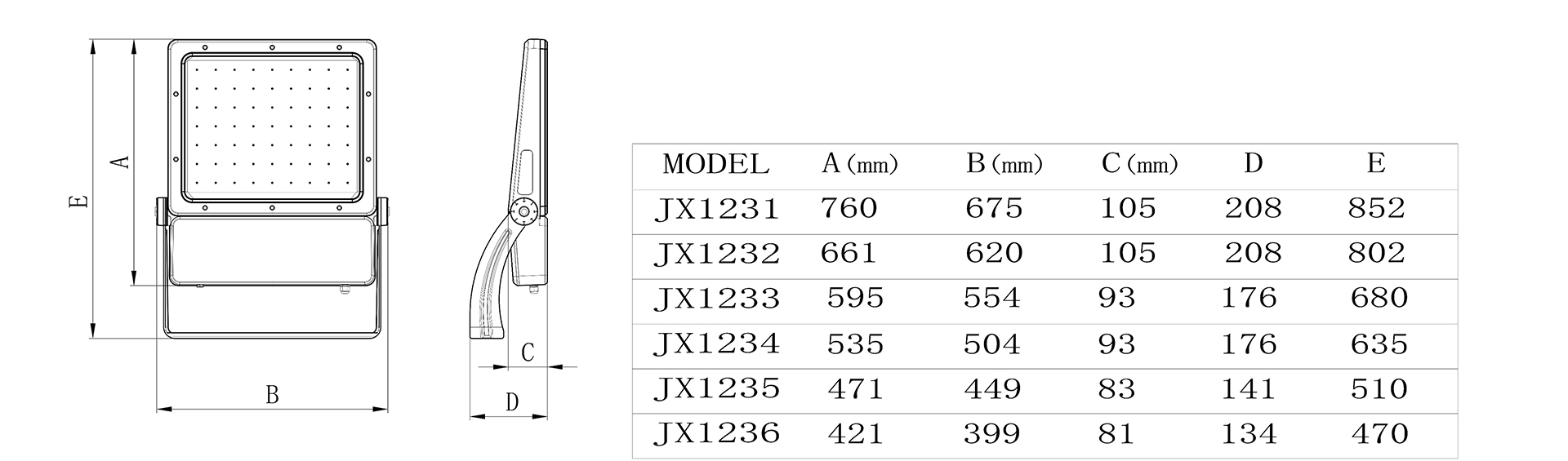

    Ceramic Substrate COB SMT light source Floodlight2 size

    Technical Parameters

    Item

    KWCOB-B22TG01K0200A

    KWCOB-B22TG01K0240A

    KWCOB-B22TG01K0320A

    KWCOB-B22TG01K0480A

    KWCOB-B22TG01K0600A

    KWCOB-B22TG01K0880A

    Power

    200W

    240W

    320W

    480W

    600W

    880W

     Luminous Efficiency

    ≥130lm/w

    ≥130lm/w

    ≥130lm/w

    ≥130lm/w

    ≥130lm/w

    ≥130lm/w

    Product Dimensions

    L470mm * W399mm * H134mm

    L510mm * W449mm * H141mm

    L635mm * W504mm * H176mm

    L680mm * W554mm * H176mm

    L802mm * W620mm * H208mm

    L852mm * W675mm * H208mm

    Net Weight

    7.5KG

    10.3KG

    14.5KG

    20.2kg

    26.7KG

    30.2KG

    CRI(Ra)

    Ra70、80、90(Standard Ra80)

     Color Temperature

    2700-6500K(Standard 5000K)

    IP Rating

    IP67

    The Beam Angle

    30°/45°/60°/90°/120°/road lighting beam angle/asymmetric beam angle/Other beam angle available by customization

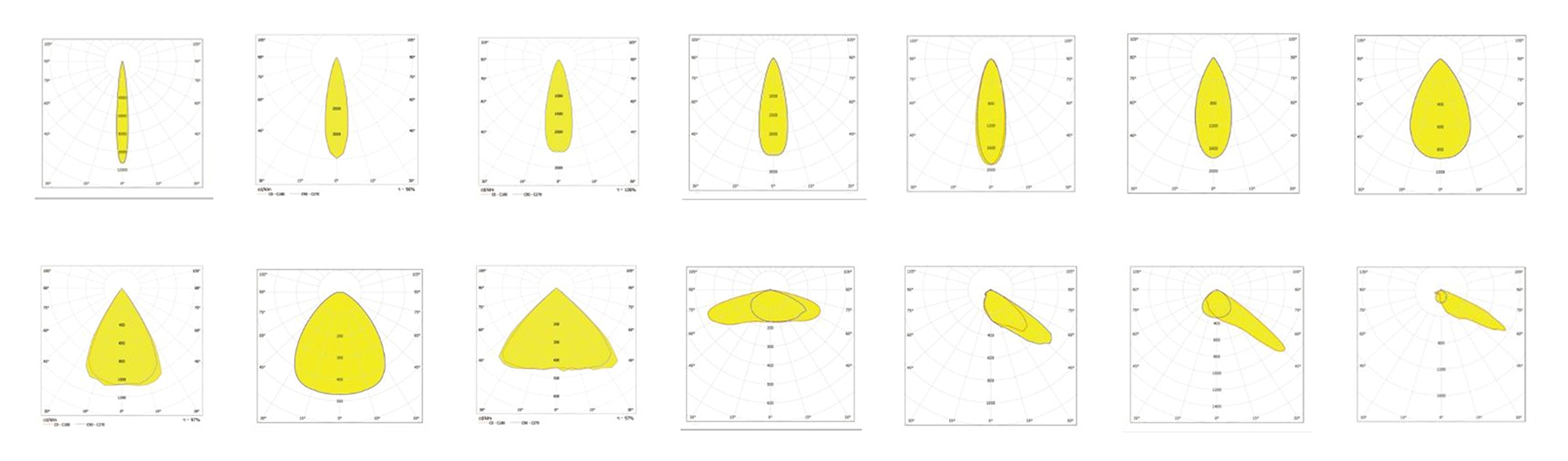

    Part of the light distribution curves

    Ceramic Substrate COB SMT light source Floodlight distribution curve
