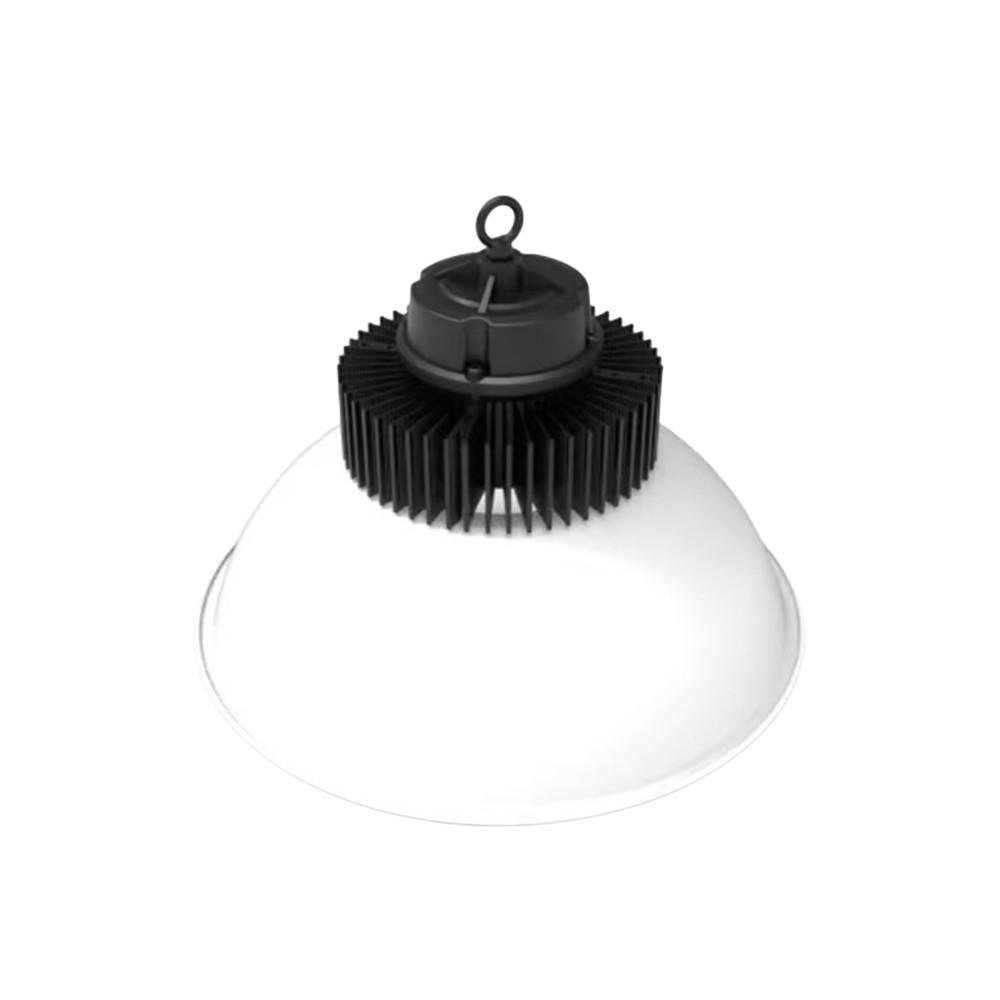

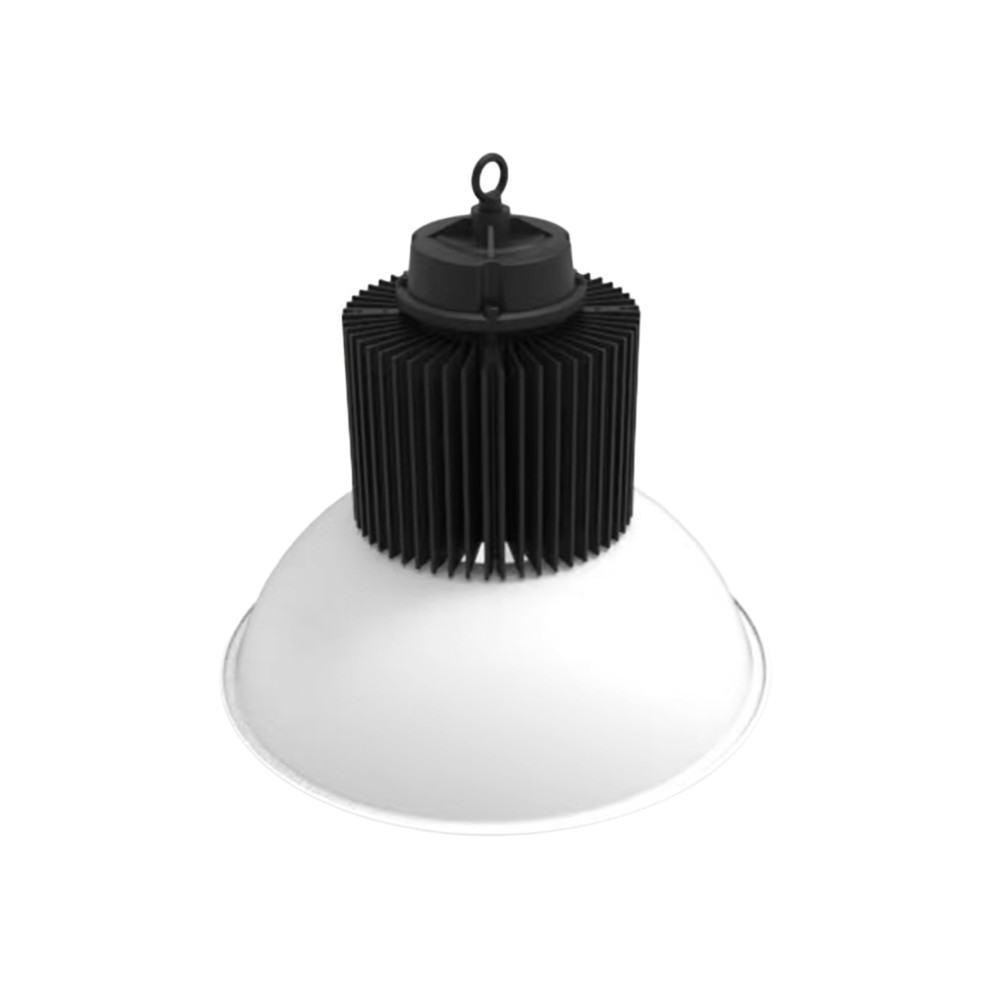

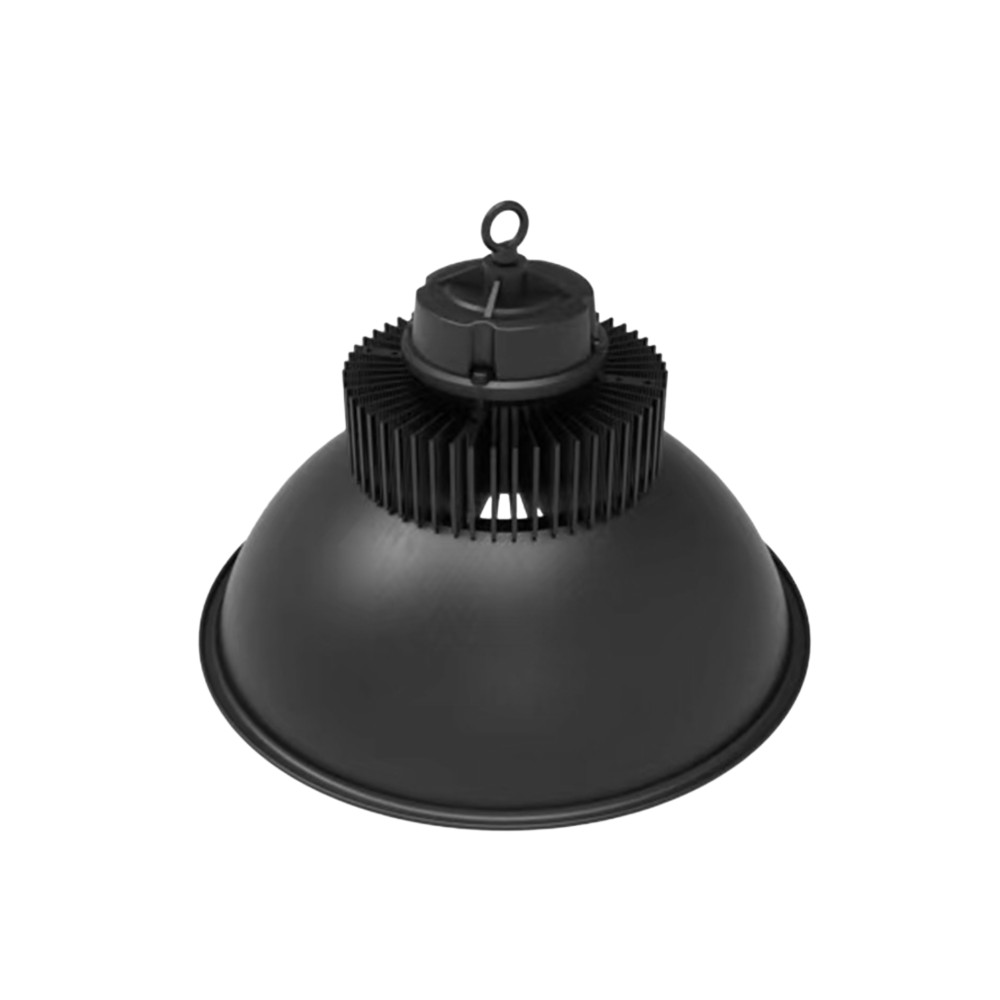

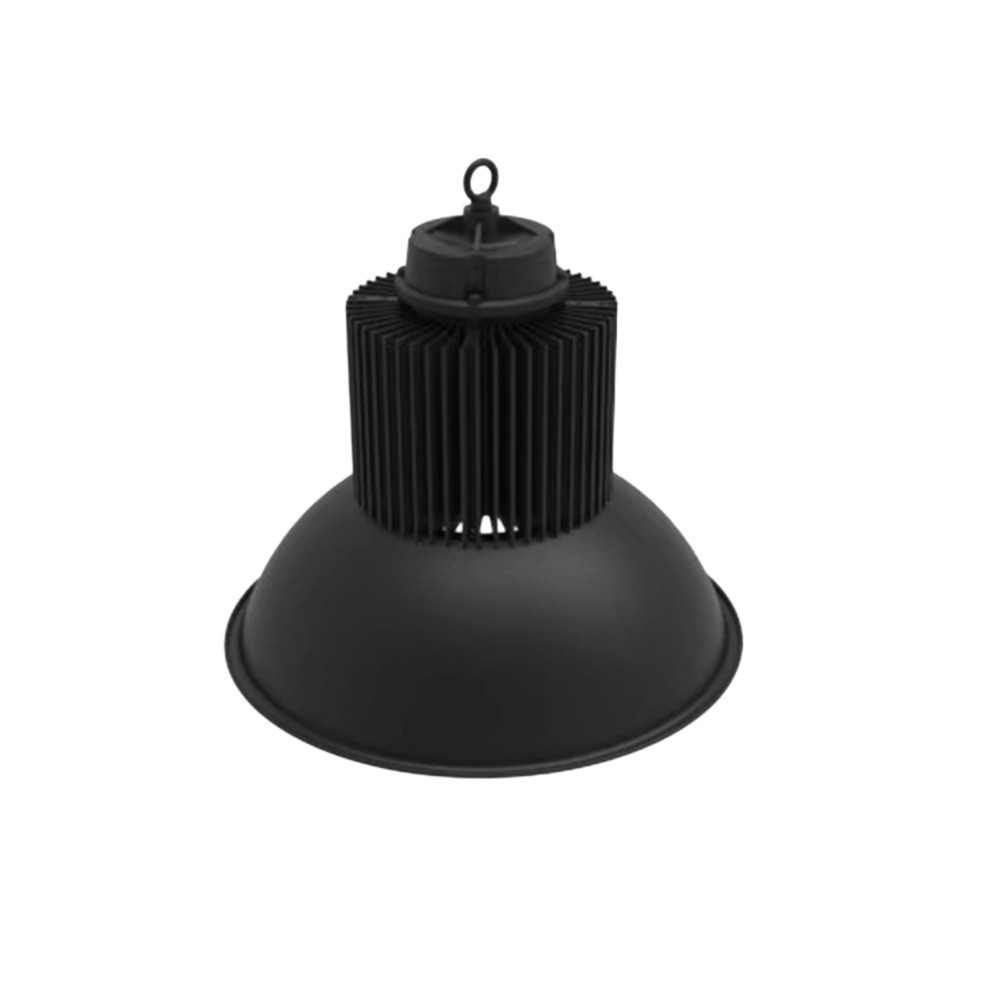

X20 High Bay Light Anti-glare Series

1. Application scenarios: production workshops, train stations, auditoriums, stadiums and other places;

2. Light source characteristics: The lamp adopts KWCOB new ceramics phosphor packaging technology and has a strong 1000W-level light source packaging capacity. Its low thermal resistance packaging process effectively reduces the center temperature of the light source, significantly slows down the light decay phenomenon, and ensures the stability of the light source brightness in long-term use. This technology not only improves the service life of the light source, but also reduces the operating and maintenance costs, providing users with efficient and economical lighting solutions, suitable for various application environments;

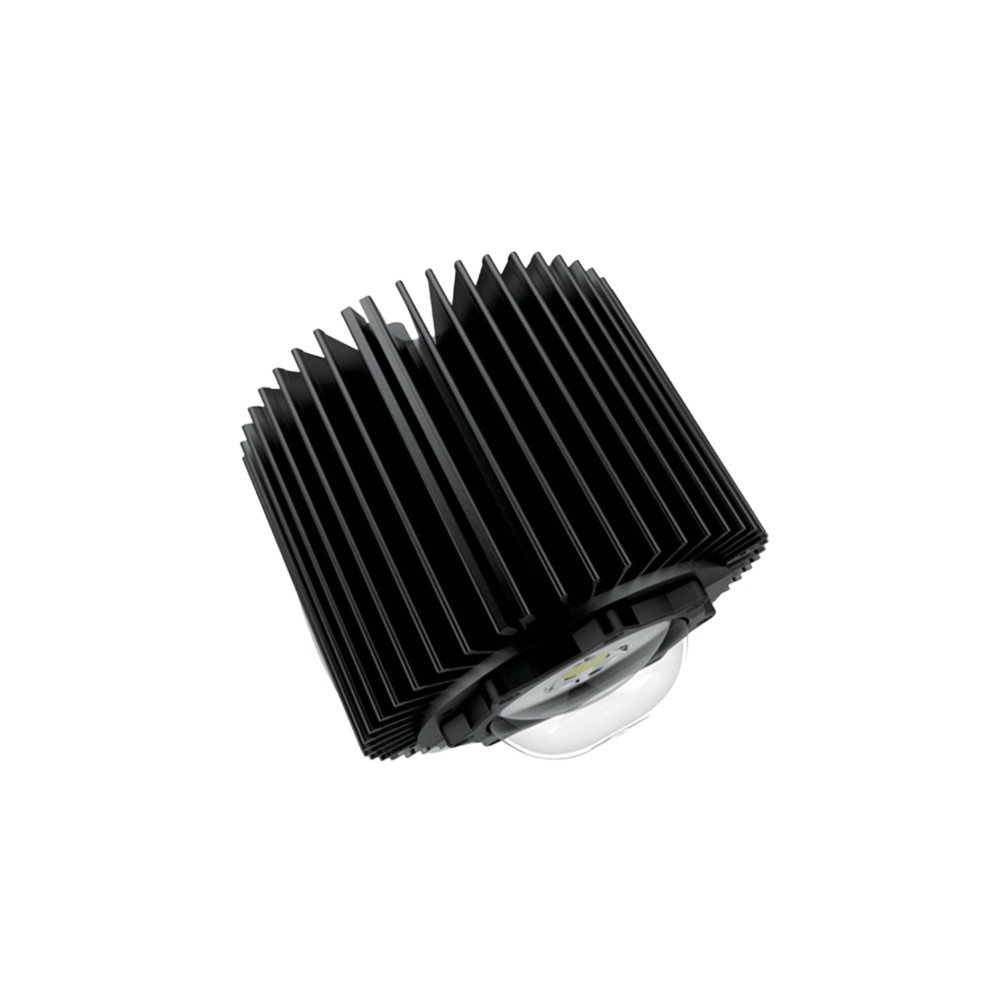

3. Heat dissipation: The radiator adopts high-conductivity phase change structure heat transfer technology, super-strong central heat extraction, and up and down convection vertical fin structure design to improve the overall temperature uniformity and heat dissipation efficiency, and ensure long-term operation at a safe temperature.

4. Optics: Glass is used as the light output window. It ensures the long-term stability of optical performance and excellent weather resistance. By not using plastic optical materials, it effectively prevents the influence of material aging on the reliability of the lamp and ensures its stability throughout the entire service life;

5. Reliability: Provide 5 years warranty service, customizable 10 years warranty.

Why Partner With Us

Ø Cut off design：KWCOB light source has high power and small emitting surface, with optical design advantages. Each light source has an independent optical system that can be matched with different lampshades to meet different light interception designs, providing a low glare and high comfort lighting environment；

Ø The design employs mirror reflector cups and glass lenses for optics, avoiding the use of PC and PMMA plastic optical materials, ensuring the long service life of optical components is not constrained by material aging；

Ø KWCOB Integrated Design of Photoelectric Heating: Covering 80W-500W Whole Lamp Product Solution；

Ø Mature light source packaging technology：

n Fluorescent Crystal New Materials: Excellent Thermal Quenching Characteristics, Higher Light Conversion Efficiency, Lower Attenuation；

n Independent packaging patent technology: Fluorescent crystal kilowatt level COB light source packaging technology invention team；

n Phase change thermal conductivity technology: Vacuum phase change strengthening center for heat extraction, providing reliable heat dissipation for high-power COB；

n Can be paired with aluminum substrate COB or ceramic substrate COB light sources, capable of replacing and adapting to high-voltage isolation and non isolation drivers, filling in the gaps in the lamp's lifespan；

Ø Long lifespan cycle: can provide customized products with a lifespan of 5-10 years；

Ø High protection design: can provide personalized customization for IP65-IP67 protection requirements, adapting to more stringent high and low temperature environmental requirements；

Ø Personalized customization development: OPM specializes in designing customized services, focusing on providing full lifecycle cost reduction solutions for low glare high ceiling lighting scenarios in global production workshops, high-speed trains, auditoriums, sports venues, and other areas；

Installation Type

Technical Parameters

Item	KWCOB-X20HB01Y120A	KWCOB-X20HB150A	KWCOB-X20HB200A
Power	120W	150W	200W
Luminous Efficiency	≥130lm/w	≥130lm/w	≥130lm/w

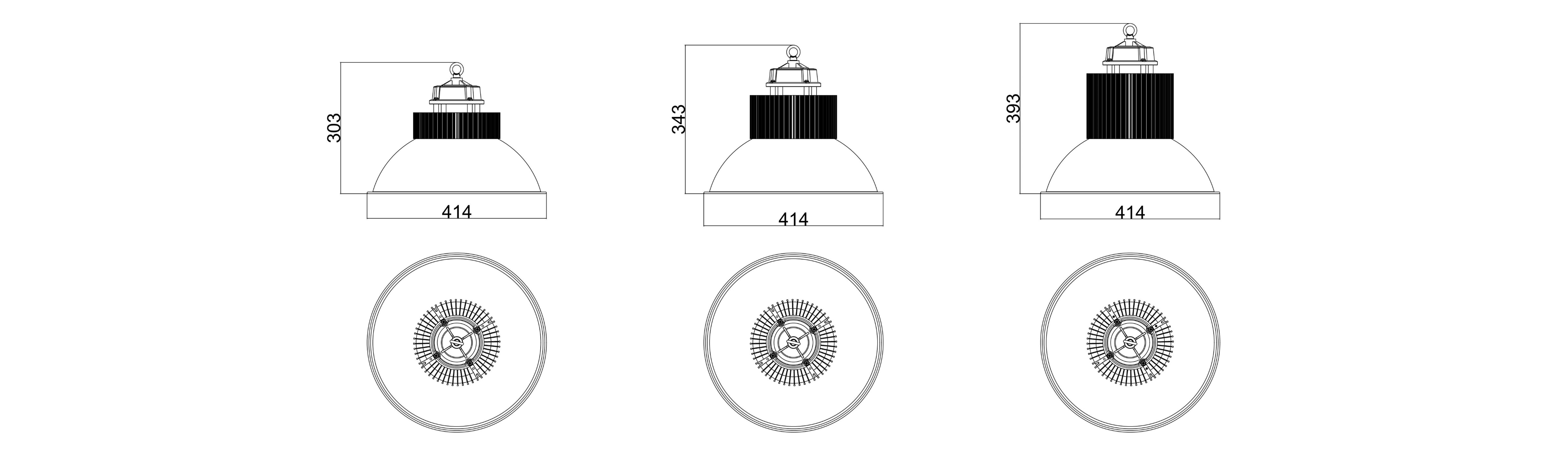

Product Dimensions	φ414mm*H303mm	φ414mm*H343mm	φ414mm*H393mm
Net Weight	4.0KG	5.1KG	6.2KG
CRI(Ra)	≥70、80
Color Temperature	2700-6500K（Standard 5000K）
IP Rating	IP65
The Beam Angle	60°/90°/120°
Application scenarios: workshops, high-temperature steel mills, railway station waiting halls, auditoriums and other large-space indoor lighting

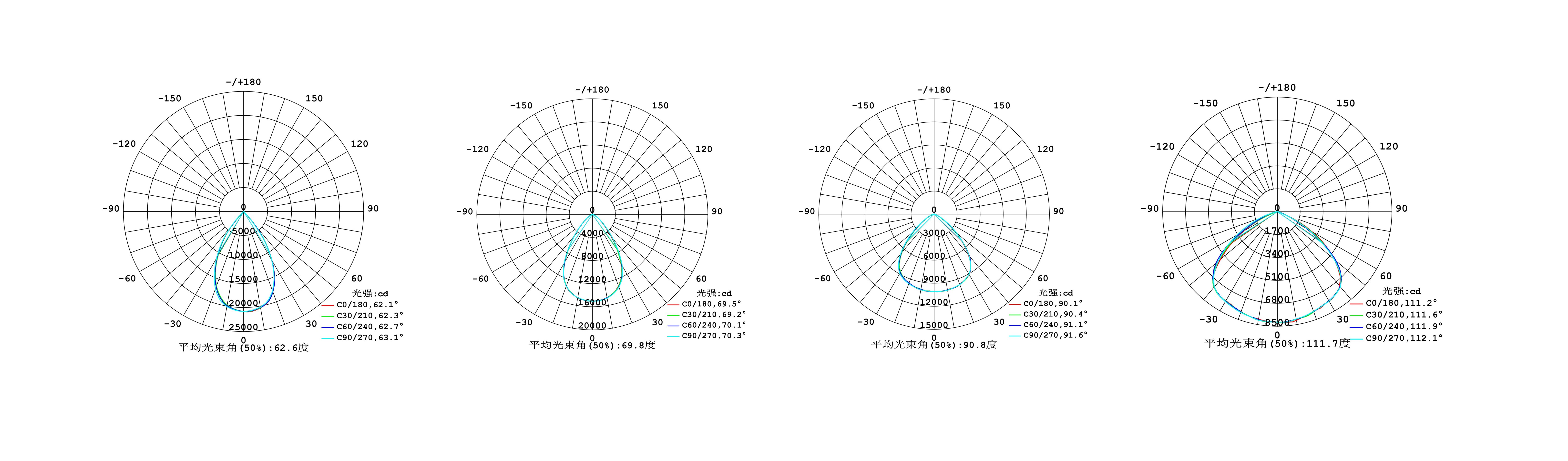

Part of the light distribution curves
