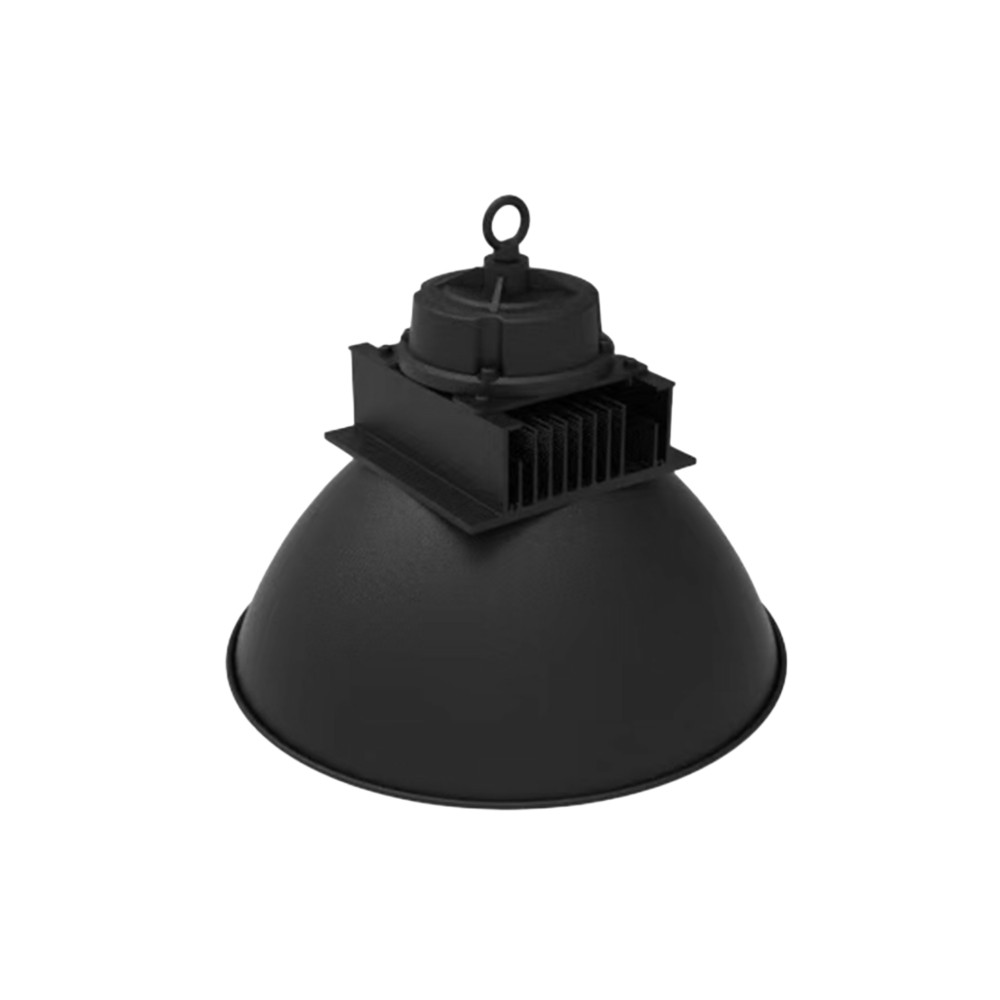

Y20 High Bay Light Anti-glare Series

1. Application scenarios: production workshops, train stations, auditoriums, stadiums and other places;

2. Light source characteristics: KWCOB new ceramics phosphor 1000W-level light source packaging technology. The low thermal resistance packaging process reduces the center temperature of the light source and slows down the light decay phenomenon. Maintain stable brightness while reducing later operation and maintenance costs.

3. Heat dissipation: High thermal conductivity aluminum heat transfer solution, combined with vertical fin structure, the overall temperature uniformity of the radiator is good, long life, low light decay design.

4. Optics: High-quality optical glass, excellent weather resistance, avoids the aging problem of plastic optical materials, thereby effectively improving the reliability and service life of lamps.

5. Reliability: 5 years standard warranty, can provide a 10 years life design solution;

Why choose us

Ø Cut off design：KWCOB light source has high power and small emitting surface, with optical design advantages. Each light source has an independent optical system that can be matched with different lampshades to meet different light interception designs, providing a low glare and high comfort lighting environment；

Ø The design employs mirror reflector cups and glass lenses for optics, avoiding the use of PC and PMMA plastic optical materials, ensuring the long service life of optical components is not constrained by material aging；

Ø KWCOB Integrated Design of Photoelectric Heating: Covering 80W-500W Whole Lamp Product Solution；

Ø Mature light source packaging technology：

n Fluorescent Crystal New Materials: Excellent Thermal Quenching Characteristics, Higher Light Conversion Efficiency, Lower Attenuation；

n Independent packaging patent technology: Fluorescent crystal kilowatt level COB light source packaging technology invention team；

n Super high conductivity heat disspation technology: high thermal conductivity aluminum strengthening center for heat extraction, providing reliable heat dissipation for high-power COB；

n Can be paired with aluminum substrate COB or ceramic substrate COB light sources, capable of replacing and adapting to high-voltage isolation and non isolation drivers, filling in the gaps in the lamp's lifespan；

Ø Long lifespan cycle: can provide customized products with a lifespan of 5-10 years；

Ø High protection design: can provide personalized customization for IP65-IP67 protection requirements, adapting to more stringent high and low temperature environmental requirements；

Ø Personalized customization development: OPM specializes in designing customized services, focusing on providing full lifecycle cost reduction solutions for low glare high ceiling lighting scenarios in global production workshops, high-speed trains, auditoriums, sports venues, and other areas；

Installation Type

Technical Parameters

Item	KWCOB-Y20HB01Y080A	KWCOB-Y20HB01Y100A
Power	80W	100W
Luminous Efficiency	≥130lm/w	≥130lm/w

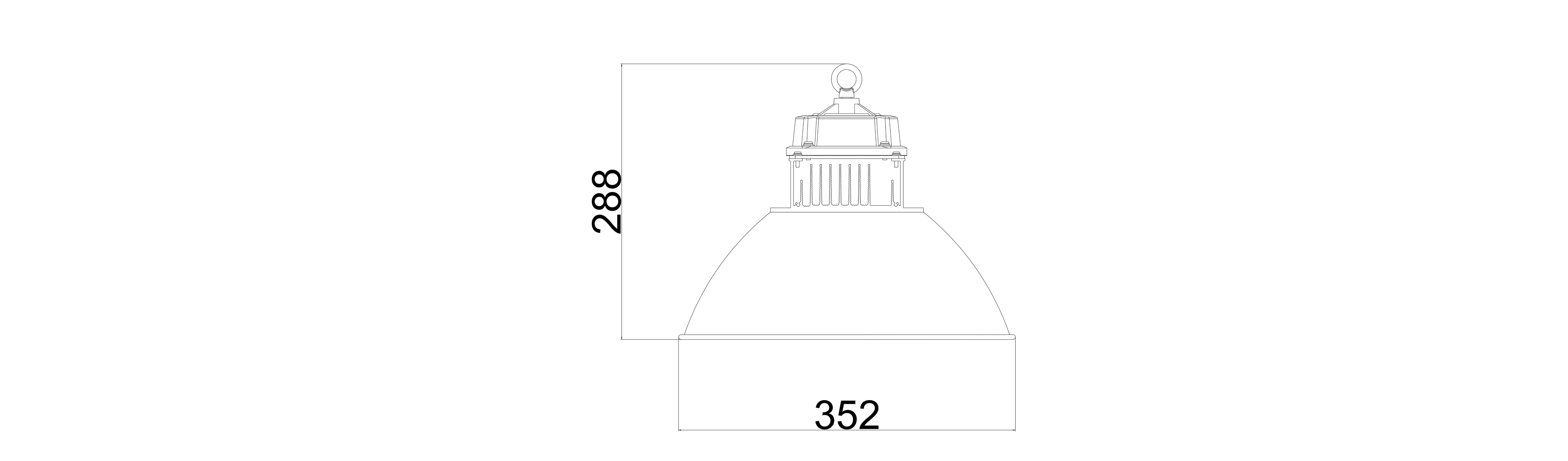

Product Dimensions	φ352mm*H288mm	φ352mm*H288mm
Net Weight	3.0KG	3.0KG
CRI(Ra)	≥70、80
Color Temperature	2700-6500K（Standard 5000K）
IP Rating	IP65
The Beam Angle	60°/90°/120°
Application scenarios: Indoor lighting in large spaces such as workshops, high-temperature environments in steel plants, high-speed railway station waiting halls, and auditoriums

Part of the light distribution curves
