Low Glare Road Lighting|New Ceramics Phosphor Light Source|Optical Glass Lens Module|Each Light Source Module Individually Designed for Optics|Cutoff Type Anti Glare|High Lumen| Low Glare |10 Years' S

1. Application scenarios: Suitable for a variety of scenarios such as main roads, secondary roads, branch roads and rural roads.

2. Light source characteristics: KWCOB new ceramics phosphor 1000W-level light source low thermal resistance packaging process reduces the center temperature of the light source. Extend the service life of the light source and reduce light decay;

3. Heat dissipation: High thermal conductivity aluminum has excellent heat dissipation performance. Supports 40-120W modular design, and efficient heat dissipation solutions ensure that the temperature rise of the light source TC point is less than 40 degrees.

4. Optics: Made of high borosilicate glass, it has stable optical performance and excellent weather resistance, is not easy to age and maintains long-term reliability. COB light-cutting optical design effectively prevents light overflow, achieves low glare lighting under parts, and improves the safety and comfort of night driving;

5. Reliability: standard 5 years warranty, 5-10 years lifespan plan can be customized;

Why Select Our Solutions

Ø Cut off design：KWCOB light source has high power and small emitting surface, with optical design advantages. Each light source has an independent optical system and different depth cutoff designs, which can control the road glare index TI ≤ 6, providing low glare, safe and comfortable road lighting for various roads and intersections；

Ø Adopting glass lens optics, without using PC and PMMA plastic optical materials, to ensure the long life cycle of optical devices is not limited by material aging；

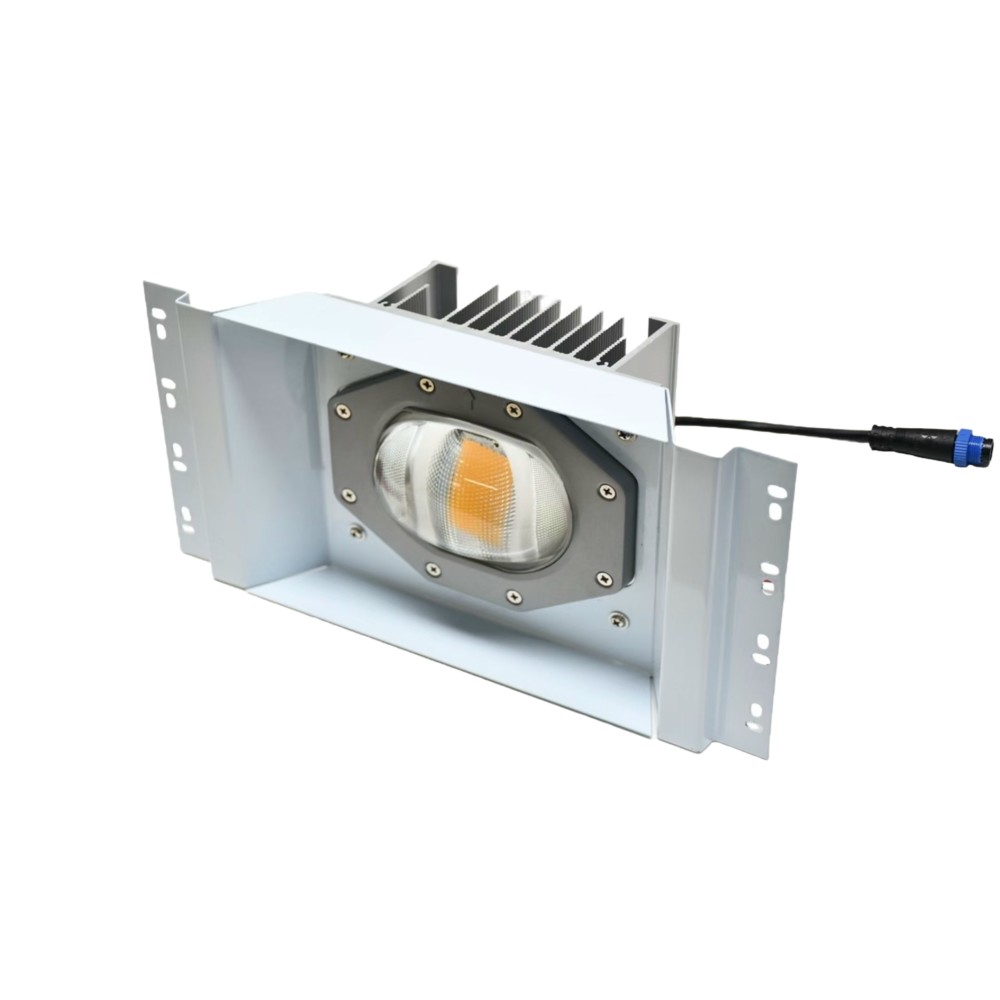

Ø KWCOB Integrated Design of Photoelectric Heating: Covering 40W-120W Modular Design, Customizable 40W-600W Whole Lamp Product Solution；

Ø Mature light source packaging technology：

n Fluorescent Crystal New Materials: Excellent Thermal Quenching Characteristics, Higher Light Conversion Efficiency, Lower Attenuation；

n Independent packaging patent technology: Fluorescent crystal kilowatt level COB light source packaging technology invention team；

n Super high conductivity heat disspation technology: high thermal conductivity aluminum strengthening center for heat extraction, providing reliable heat dissipation for high-power COB；

n Can be paired with aluminum substrate COB or ceramic substrate COB light sources, capable of replacing and adapting to high-voltage isolation and non isolation drivers, filling in the gaps in the lamp's lifespan；

Ø High luminous efficiency design: replacing traditional sodium lamps to achieve 70% energy savings；

Ø Long lifespan cycle: can provide customized products with a lifespan of 5-10 years；

Ø High protection design: can provide personalized customization for IP65-IP67 protection requirements, adapting to more stringent high and low temperature environmental requirements；

Ø Personalized customization development: OPM specializes in designing customized services, focusing on providing full lifecycle cost reduction solutions for low glare high ceiling lighting scenarios in global production workshops, high-speed trains, auditoriums, sports venues, and other areas；

Installation Type

Technical Parameters

Item	KWCOB-Y20LD01K080A	KWCOB-Y20LD01K150A	KWCOB-Y20LD01K200A	KWCOB-Y20LD01K240A	KWCOB-Y20LD01K300A
Power	80W	150W	200W	240W	300W
Luminous Efficiency	≥140lm/w	≥150lm/w	≥150lm/w	≥150lm/w	≥150lm/w
Net Weight	7.5KG				12.5KG

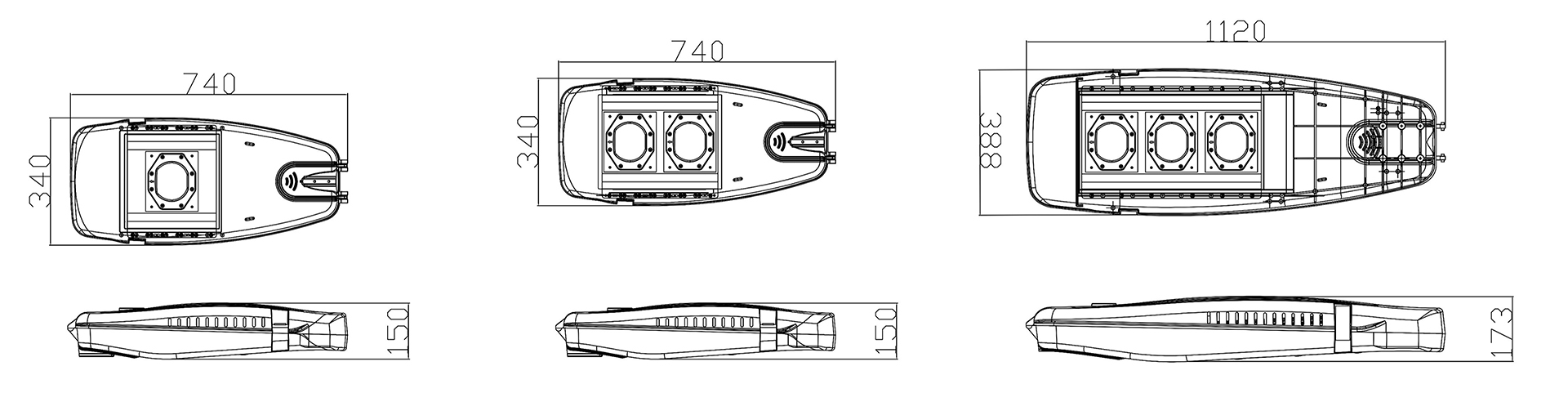

Product Dimensions	L740mmW340H150mm	L740mmW340H150mm		L740mmW340H173mm
CRI(Ra)	≥70
Color Temperature	2700-6500K（Standard 4000K）
IP Rating	IP65
The Beam Angle	Kindly check the attached images(other beam angle available by customization)

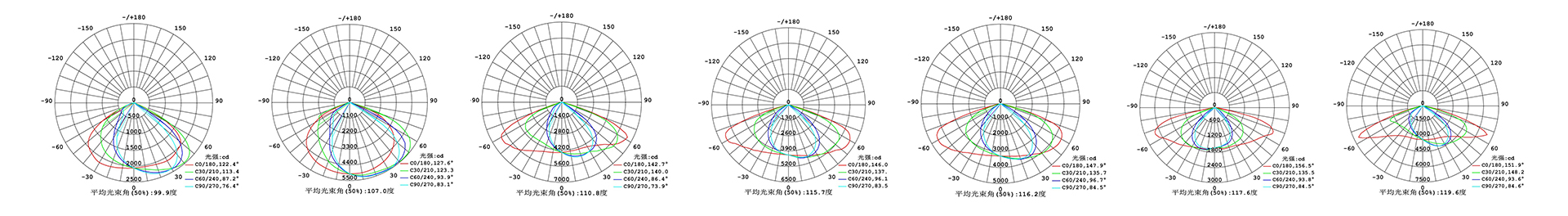

Part of the light distribution curves

Low Glare Road Lighting 2 Distribution Curve
