Low Glare Road Lighting|Optical Glass Lens Module|Equipped with New Ceramics Phosphor Light Source|Each Light Source Module Individually Designed for Cutoff Type Anti Glare| Road Light|Medium Pole Lam

1. Application scenario: The lamp is designed for urban intersection lighting, with a cut-off optical structure.

2. Light source features: KWCOB new ceramics phosphor 1000W-level light source low thermal resistance packaging process, reducing the center temperature of the light source. Extend the service life of the light source and reduce light decay;

3. Heat dissipation: High thermal conductivity aluminum has excellent heat dissipation performance. Supports 40-120W modular design, and the efficient heat dissipation solution ensures that the TC point temperature rise of the light source is less than 40 degrees.

4. Optics: Made of high borosilicate glass, it has stable optical performance and excellent weather resistance, is not easy to age and maintains long-term reliability. COB cut-off optical design effectively prevents light overflow, achieves low glare lighting under the parts, and improves the safety and comfort of night driving;

5. Cut-off optical design, controllable cut-off distance, intercepts light in the effective lighting area, reduces strong glare interference to driving, and prevents light overflow from forming light pollution;

6. Reliability: standard 5 years warranty, 5-10 years lifespan plan can be customized;

Why We're Your Ideal Choice

Ø Cut off design：KWCOB light source has high power and small emitting surface, with optical design advantages. Each light source has an independent optical system and different depth cutoff designs, which can control the road glare index TI ≤ 6, providing low glare, safe and comfortable road lighting for various roads and intersections；

Ø Adopting glass lens optics, without using PC and PMMA plastic optical materials, to ensure the long life cycle of optical devices is not limited by material aging；

Ø KWCOB Integrated Design of Photoelectric Heating: Covering 40W-120W Modular Design, Customizable 40W-600W Whole Lamp Product Solution；

Ø Mature light source packaging technology：

n Fluorescent Crystal New Materials: Excellent Thermal Quenching Characteristics, Higher Light Conversion Efficiency, Lower Attenuation；

n Independent packaging patent technology: Fluorescent crystal kilowatt level COB light source packaging technology invention team；

n Super high conductivity heat disspation technology: high thermal conductivity aluminum strengthening center for heat extraction, providing reliable heat dissipation for high-power COB；

n Can be paired with aluminum substrate COB or ceramic substrate COB light sources, capable of replacing and adapting to high-voltage isolation and non isolation drivers, filling in the gaps in the lamp's lifespan；

Ø High luminous efficiency design: replacing traditional sodium lamps to achieve 70% energy savings；

Ø Long lifespan cycle: can provide customized products with a lifespan of 5-10 years；

Ø High protection design: can provide personalized customization for IP65-IP67 protection requirements, adapting to more stringent high and low temperature environmental requirements；

Ø Personalized customization development: OPM specializes in designing customized services, focusing on providing full lifecycle cost reduction solutions for low glare high ceiling lighting scenarios in global production workshops, high-speed trains, auditoriums, sports venues, and other areas；

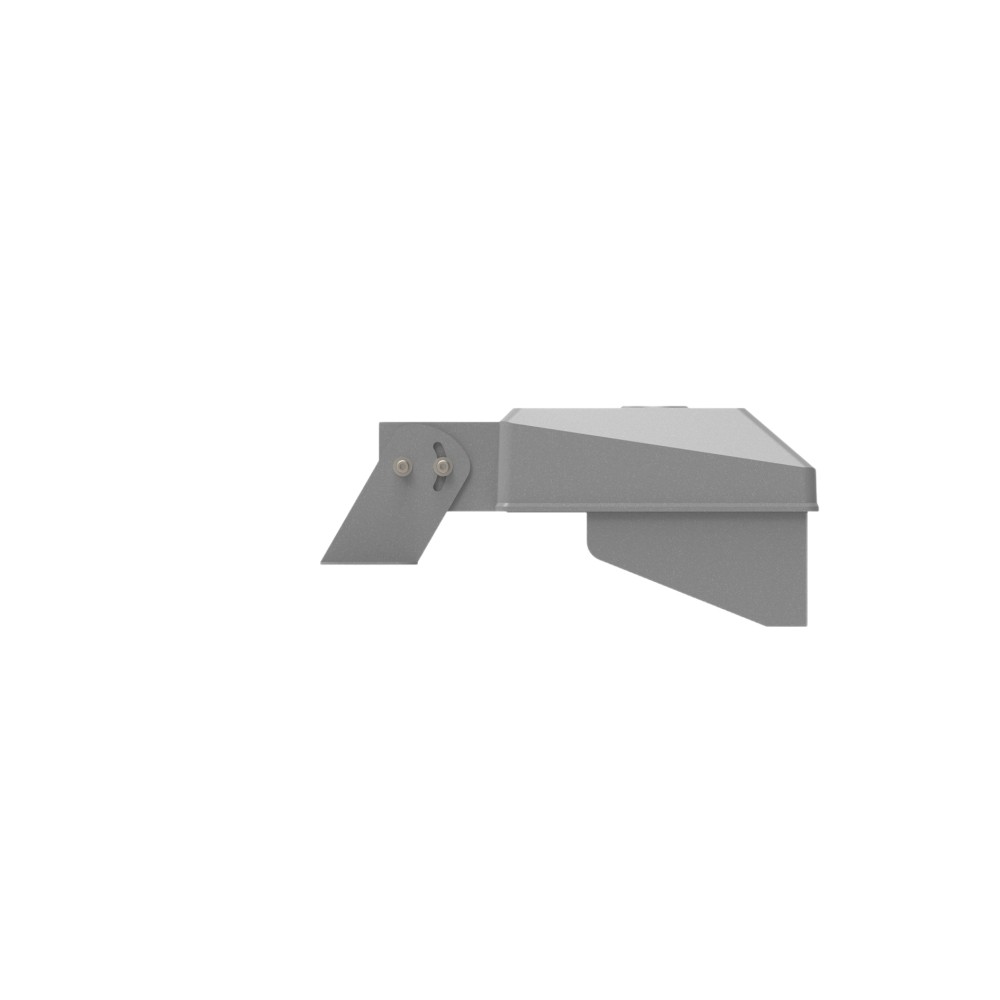

Installation Type

Technical Parameters

Item	KWCOB-Y20LD03K040A	KWCOB-Y20LD03K100A	KWCOB-Y20LD03K150A	KWCOB-Y20LD03K200A	KWCOB-Y20LD03K240A
Power	40W	80-100W	120-150W	150-200W	200-240W
Luminous Efficiency	≥140lm/w	≥140lm/w	≥150lm/w	≥150lm/w	≥150lm/w
Net Weight	7.5KGS	8.0KGS	8.6KGS	7.5KGS	8.0KGS

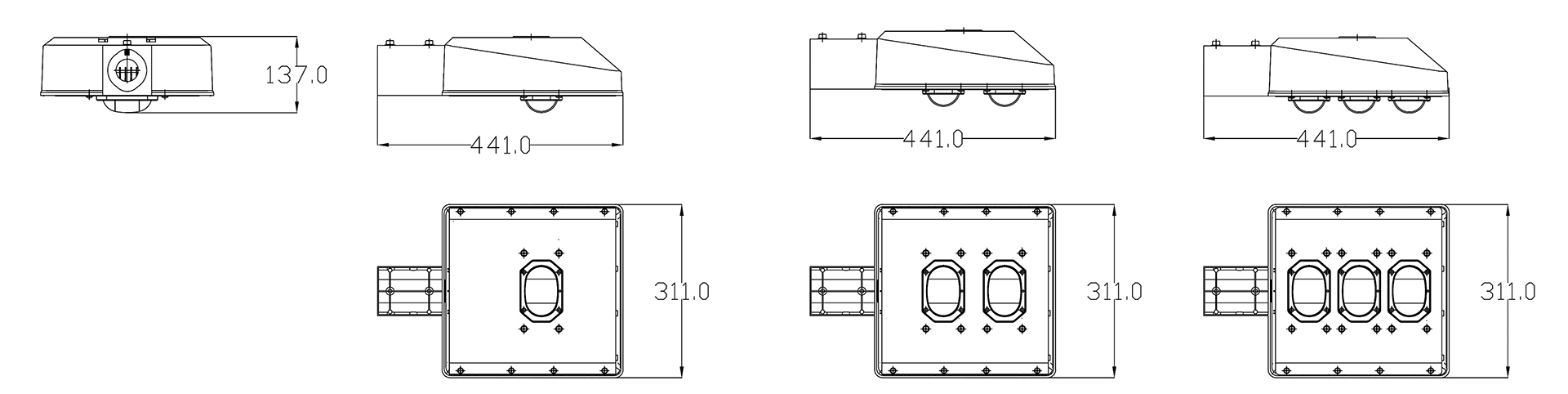

Product Dimensions	L411mmW311H137mm
CRI(Ra)	≥70
Color Temperature	2700-6500K（Standard 4000K）
IP Rating	IP65
The Beam Angle	Kindly check the attached images(other beam angle available by customization)

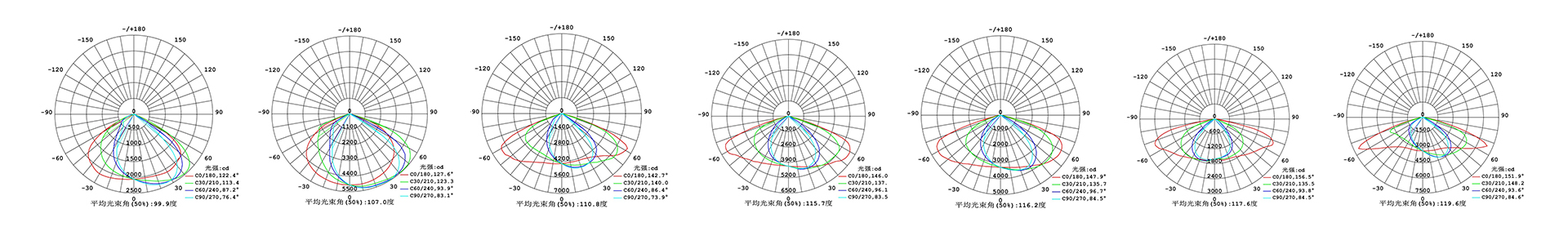

Part of the light distribution curves

Low Glare Road Lighting 4Distribution Curve
