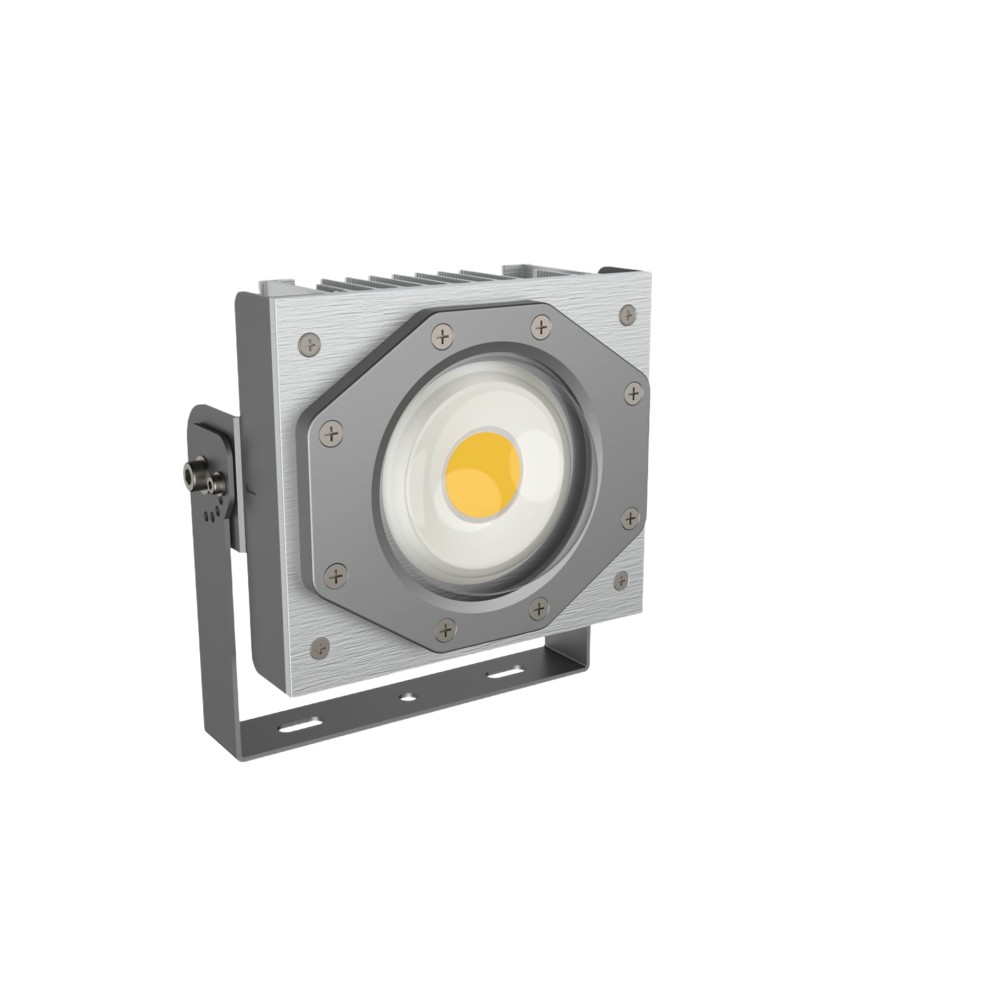

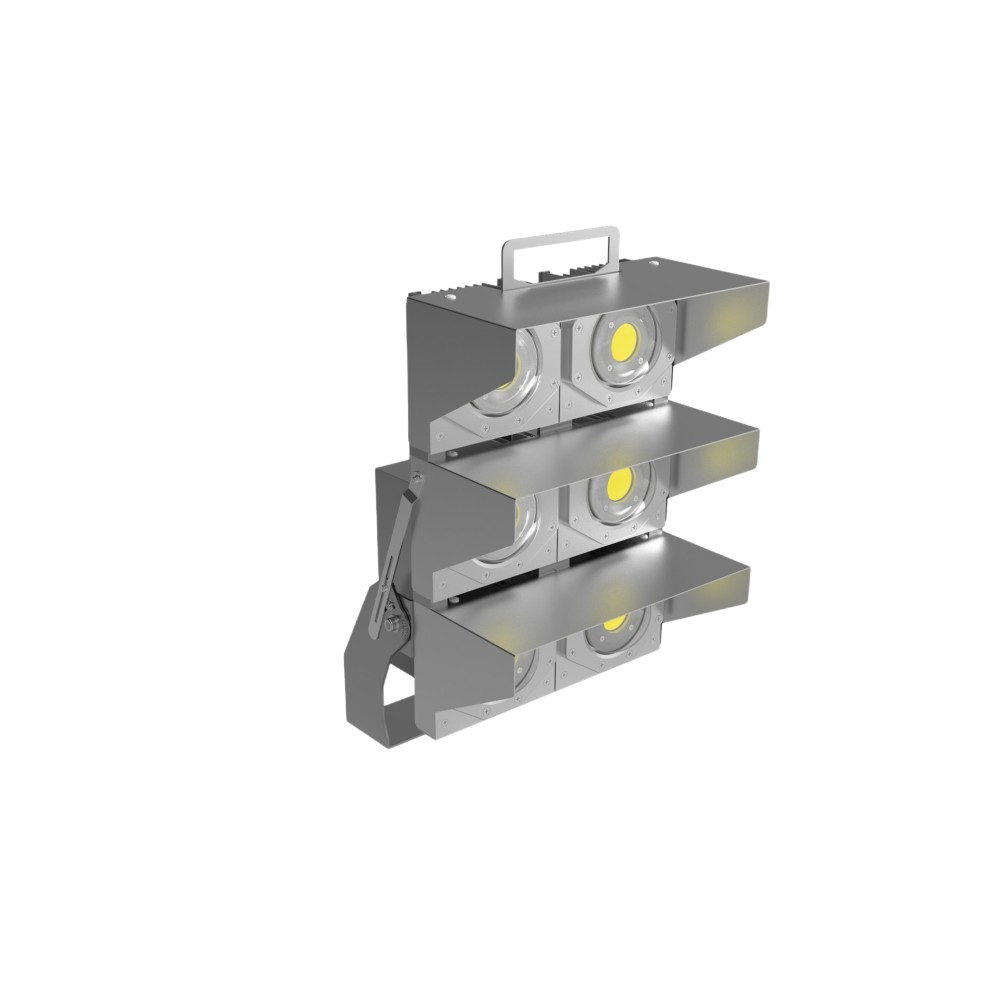

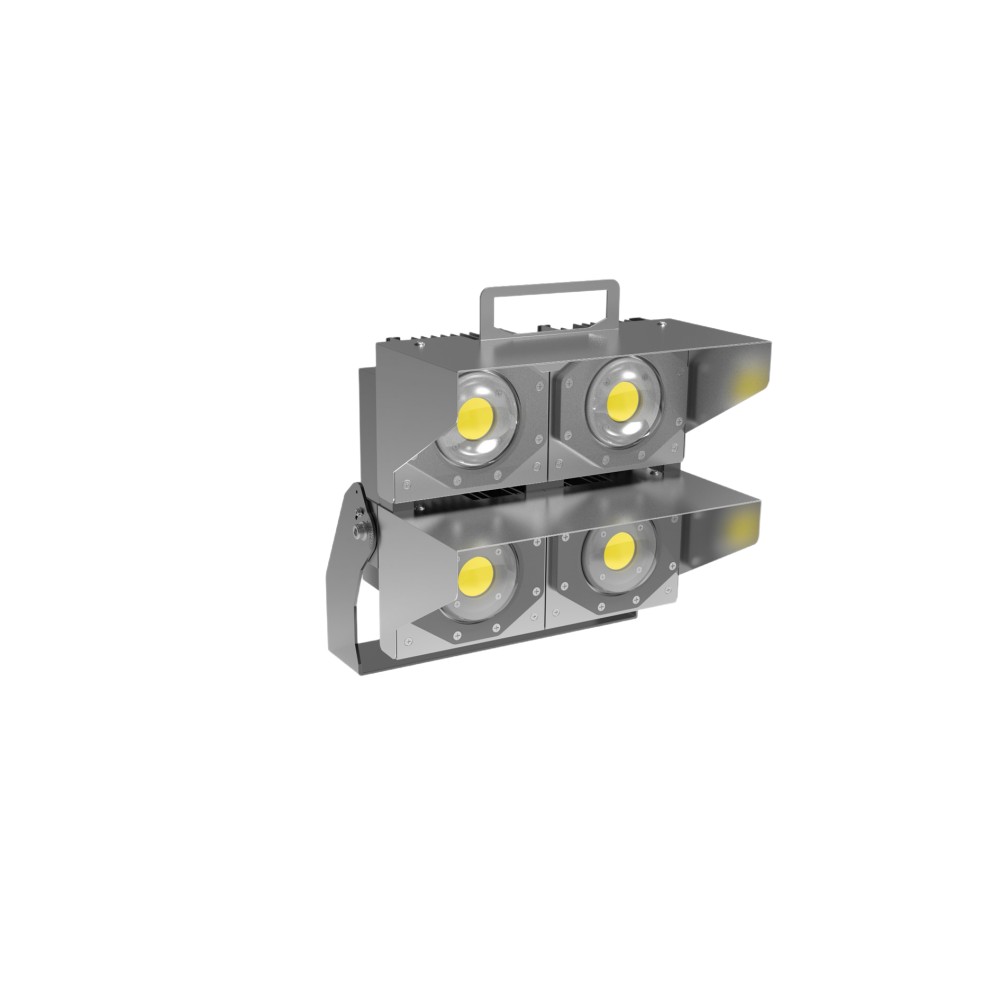

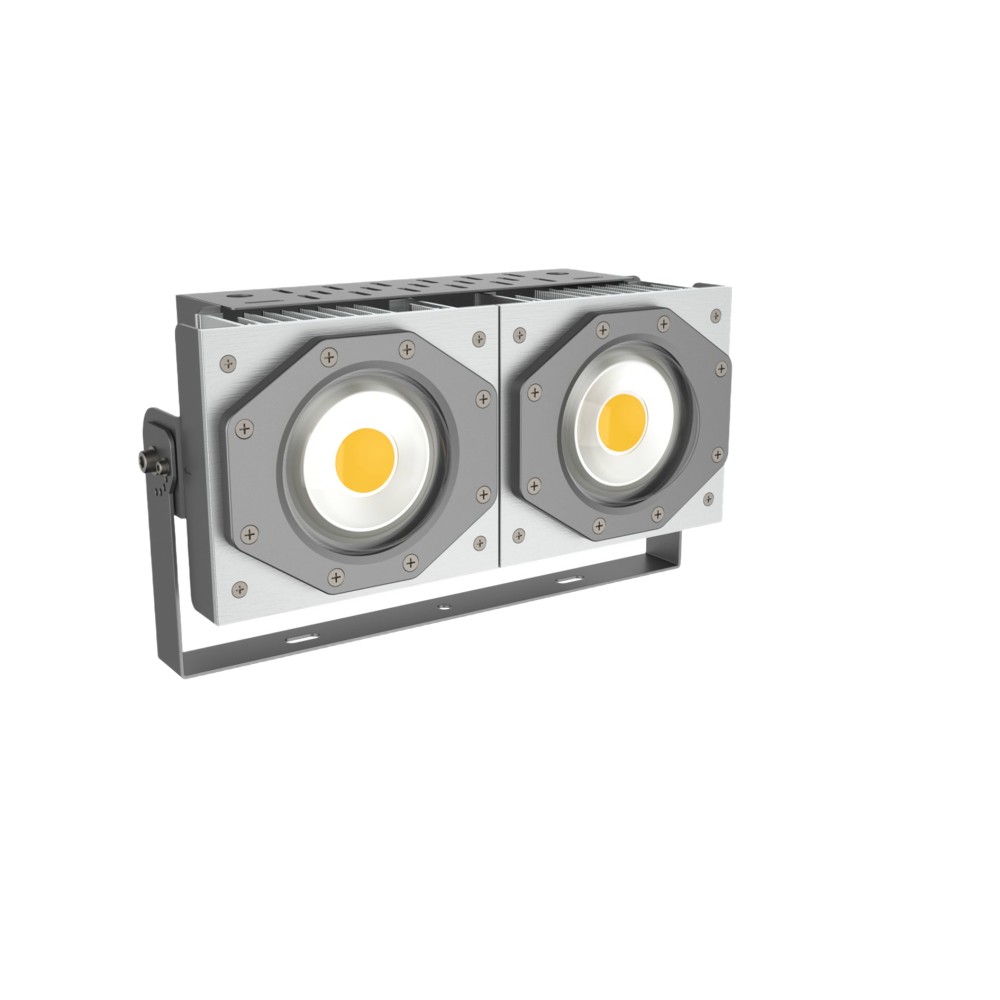

Y20 Spot Light|Optical Glass Lens|High Watts|Long Service Life|Cost-performance|Sport Stadium|Ports|Roads|High Mast Lamp|40W-480W

1. Application scenarios: The product is widely used in stadiums, airport high pole lighting, docks, traffic intersections, mid-pole lights and other places that require high-power lighting, and is the most cost-effective solution;

2. Light source characteristics: Adopt KWCOB new ceramics phosphor 1000W-level low thermal resistance packaging technology to effectively reduce the center temperature of the light source, greatly extend the service life, and significantly reduce light decay. Maintain constant illumination and reduce later maintenance costs.

3. Heat dissipation: High thermal conductivity aluminum strengthens central heat extraction, vertical fin structure design, long life, low light decay design. Reduce the later operating costs of engineering projects;

4. Optical materials: Mirror aluminum and glass window materials are used, with excellent weather resistance. Prevent material aging from affecting the reliability of lamps.

5. Independent optical design for each light source: Each light source has an independent optical system, giving full play to the advantages of COB light sources in light-cutting optical design, and can be customized for optical design to meet personalized design effects;

6. Reliability: standard 5 years warranty, 10 customized solutions are provided;

Why partner with us

Why choose us

Ø Cut off design：KWCOB light source has high power and small emitting surface, with optical design advantages. Each light source has an independent optical system and a light cutting structure optical design to prevent light pollution caused by light overflow, providing a low glare and high comfort lighting environment;

Ø The design employs mirror reflector cups and glass lenses for optics, avoiding the use of PC and PMMA plastic optical materials, ensuring the long service life of optical components is not constrained by material aging；

Ø High power COB opto electric integrated module design: covering 50W-400W modular design, can customize 200W-1800W whole lamp product solutions;

Ø Kilowatt level COB light source packaging technology：

n Independent packaging patent technology: The packaging technology invention team of the Chinese Academy of Sciences, with leading fluorescent crystal COB light source technology；

n Fluorescent Crystal New Materials: Excellent Thermal Quenching Characteristics, Higher Light Conversion Efficiency, Lower Attenuation；

n Super high conductivity heat disspation technology: high thermal conductivity aluminum strengthening center for heat extraction, providing reliable heat dissipation for high-power COB；

n We can provide aluminum substrate COB and ceramic substrate COB light sources, which can be replaced and adapted to high-voltage isolation and non isolation drivers, filling the gaps in the lamp life cycle；

Ø Long lifespan cycle: can provide customized products with a lifespan of 5-10 years；

Ø High protection design: can provide personalized customization for IP65-IP67 protection requirements and adapt to more environmental requirements；

Ø Personalized customization development: OPM provides professional design and customization services, focusing on providing full lifecycle cost reduction solutions for global sports venues, airports, ports, plazas, traffic intersections, and other high pole lighting scenarios that cut off light and prevent glare；

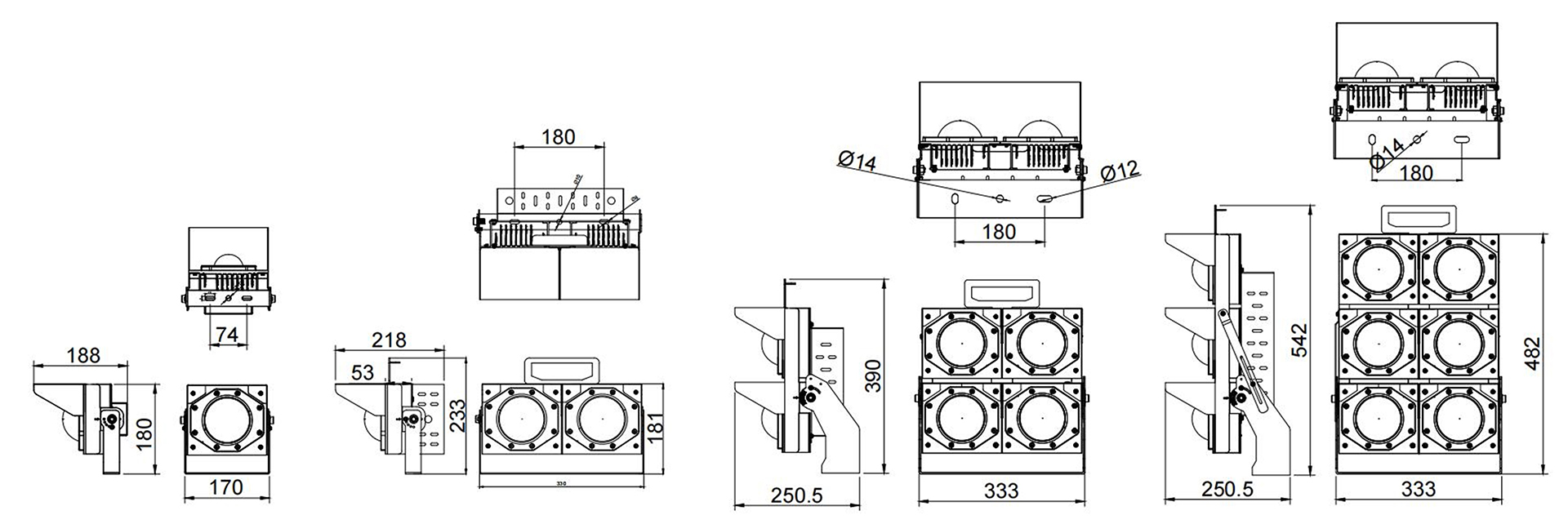

Installation Type

Technical Parameters

Item	KWCOB-Y20TG01K040A	KWCOB-Y20TG01K060A	KWCOB-Y20TG01K080A	KWCOB-Y20TG01K100A	KWCOB-Y20TG01K150A	KWCOB-Y20TG01K200A	KWCOB-Y20TG01K240A	KWCOB-Y20TG01K320A	KWCOB-Y20TG01K400A	KWCOB-Y20TG01K480A	KWCOB-Y20TG01K600A
Power	40W	60W	80W	100W	150W	200W	240W	320W	400W	480W	600W
Luminous Efficiency	≥130lm/w	≥130lm/w	≥130lm/w	≥130lm/w	≥130lm/w	≥130lm/w	≥130lm/w	≥130lm/w	≥130lm/w	≥130lm/w	≥130lm/w
Product Dimensions	L170mm * W120 * H128mm	L170mm * W120 * H140mm	L170mm * W130 * H180mm	L170mm * W130 * H200mm	L340mm * W158 * H180mm	L340mm * W156 * H200mm	L343mm * W164 * H340mm	L343mm * W164 * H402.5mm	L343mm * W164 * H422.5mm	L343 * W164 * H575mm	L343 * W164 * H625mm
Net Weight	1.5KG	1.62KG	2.25KG	2.34KG	4.9KG	5.5KG	6.5KG	7.5KG	8.5KG	16.1KG	18.0KG
CRI(Ra)	70、80、90（Standard 80）
Color Temperature	2700-6500K（Standard 5000K）
IP Rating	IP67
The Beam Angle	60°、90°、120°、Asymmetric optics、road lighting beam angle、tunnel lighting beam angle、Other beam angle available by customization

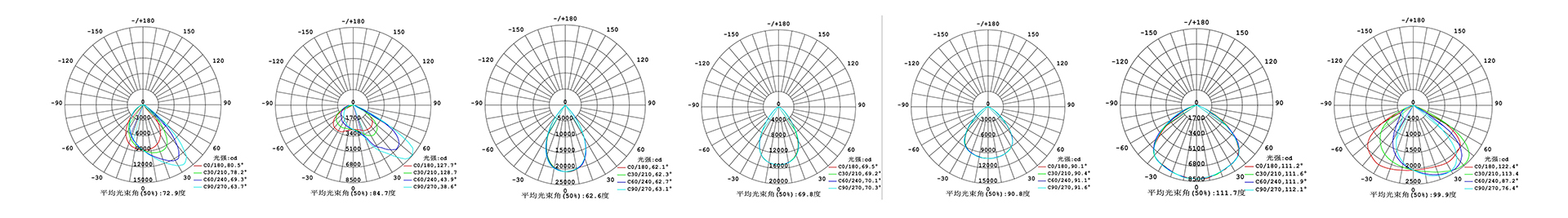

Part of the light distribution curves

High Power COB Spot Light 4 distribution curve
