X11 Spot Light| New Ceramics Phosphor Light Source|KWCOB® Optics,Electric & Thermal Integration|High Power|Low Decay|Structural Cutoff Design Glare-Control|Sport Stadium|Airport|PortsHigh Mast Lamp|24

1. Application scenarios: The product is widely used in stadiums, airport high pole lighting, docks, traffic intersections, mid-pole lights and other places that require high-power lighting;

2. Light source characteristics: Adopt KWCOB new ceramics phosphor 1000W-level low thermal resistance packaging technology to effectively reduce the center temperature of the light source, greatly extend the service life, and significantly reduce light decay. Maintain constant illumination and reduce later maintenance costs.

3. Heat dissipation: Aluminum phase change superconducting heat transfer technology, fast center heat extraction. Vertical fin structure design, long life, low light decay design. Reduce the later operation cost of the project;

4. Optical material: Mirror aluminum, glass window material, excellent weather resistance. Prevent material aging from affecting the reliability of lamps.

5. Independent optical design for each light source: Each light source has an independent optical system, giving full play to the advantages of COB light source in light-cutting optical design, and can be customized optical design to meet personalized design effects;

6. Reliability: standard 5 years warranty, 10 customized solutions are provided;

Why Cooperate With Us

Why choose us

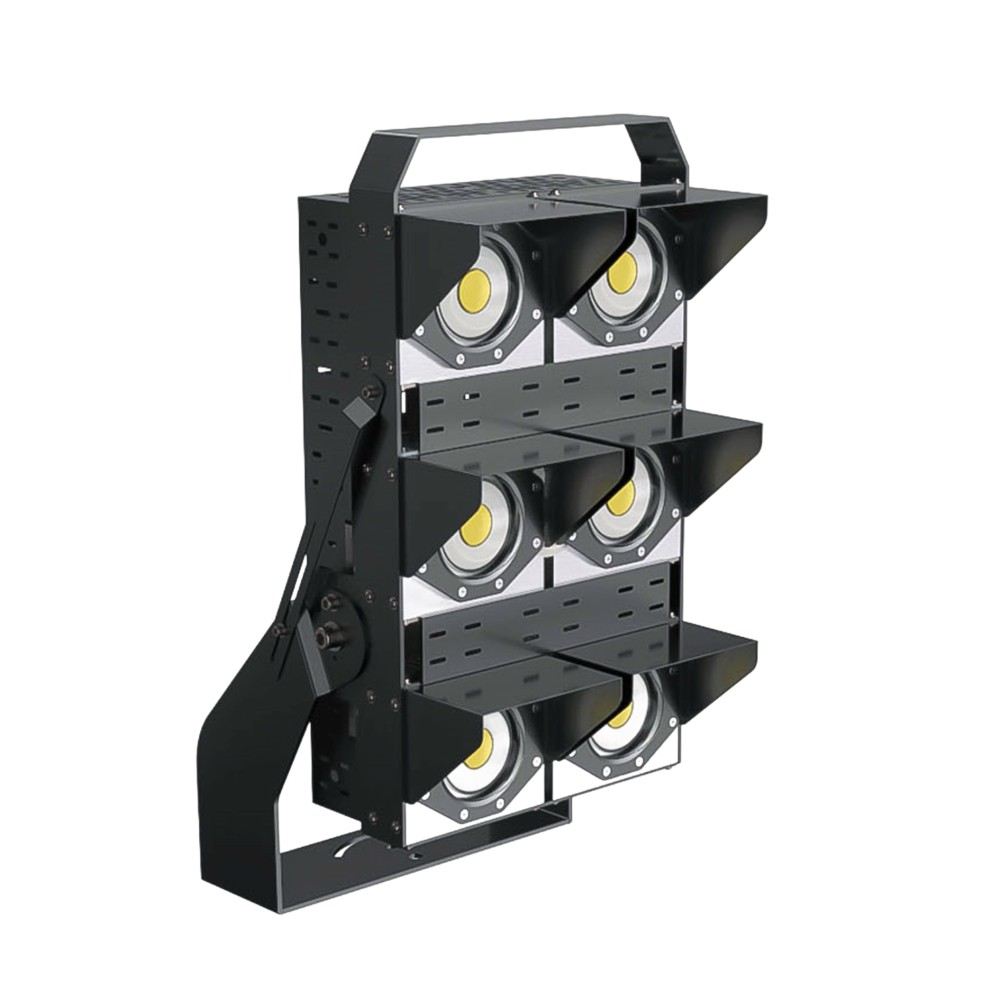

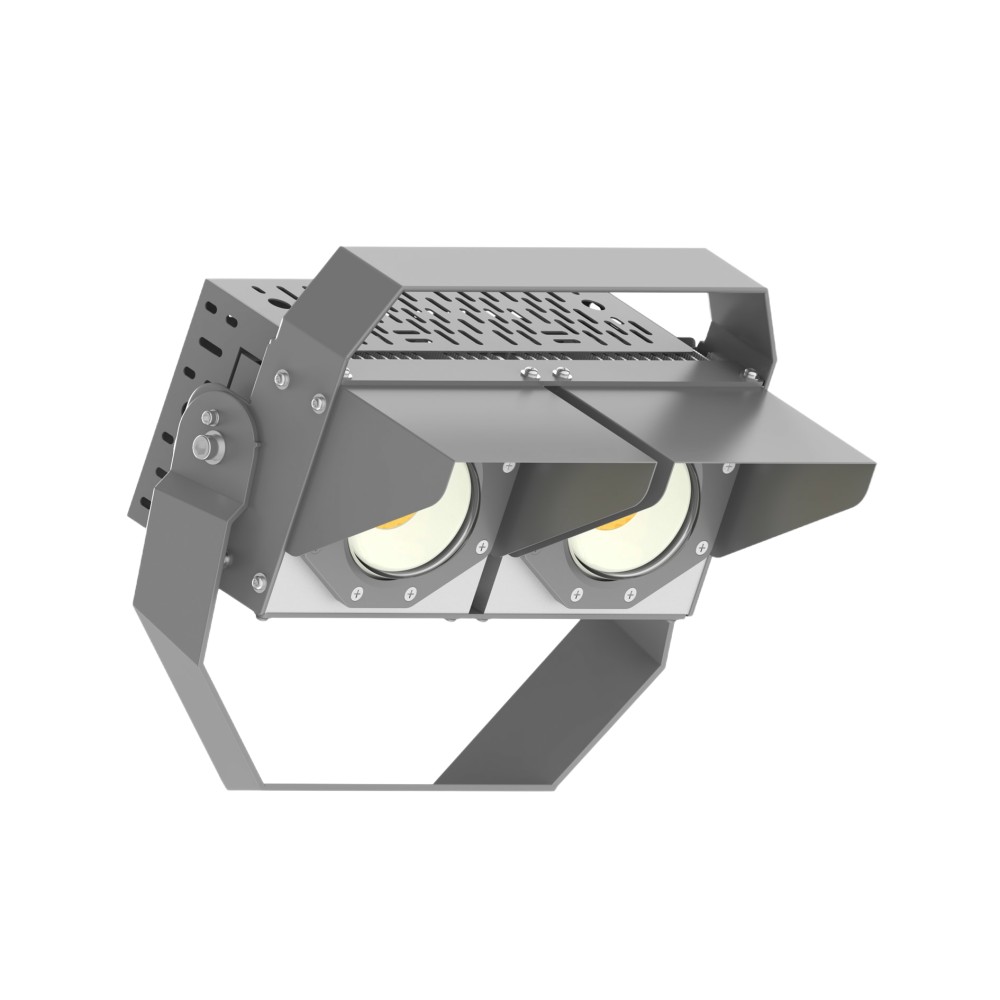

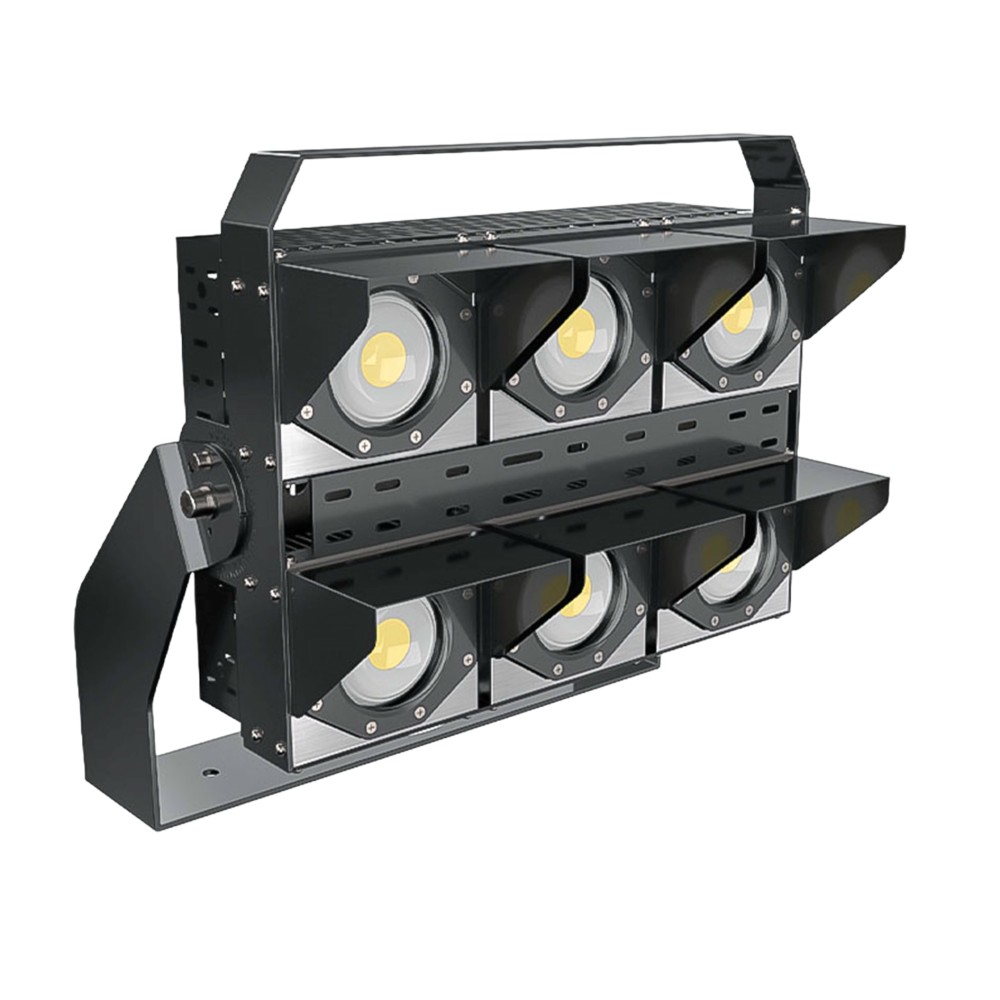

Ø Cut off design：KWCOB light source has high power and small emitting surface, with optical design advantages. Each light source has an independent optical system and a light cutting structure optical design to prevent light pollution caused by light overflow, providing a low glare and high comfort lighting environment;

Ø The design employs mirror reflector cups and glass lenses for optics, avoiding the use of PC and PMMA plastic optical materials, ensuring the long service life of optical components is not constrained by material aging；

Ø High power COB opto electric integrated module design: covering 50W-400W modular design, can customize 200W-1800W whole lamp product solutions;

Ø Kilowatt level COB light source packaging technology：

n Independent packaging patent technology: The packaging technology invention team of the Chinese Academy of Sciences, with leading fluorescent crystal COB light source technology；

n Fluorescent Crystal New Materials: Excellent Thermal Quenching Characteristics, Higher Light Conversion Efficiency, Lower Attenuation；

n Super high conductivity heat disspation technology: high thermal conductivity aluminum strengthening center for heat extraction, providing reliable heat dissipation for high-power COB；

n We can provide aluminum substrate COB and ceramic substrate COB light sources, which can be replaced and adapted to high-voltage isolation and non isolation drivers, filling the gaps in the lamp life cycle；

Ø Long lifespan cycle: can provide customized products with a lifespan of 5-10 years；

Ø High protection design: can provide personalized customization for IP65-IP67 protection requirements and adapt to more environmental requirements；

Ø Personalized customization development: OPM provides professional design and customization services, focusing on providing full lifecycle cost reduction solutions for global sports venues, airports, ports, plazas, traffic intersections, and other high pole lighting scenarios that cut off light and prevent glare；

Installation Type

Technical Parameters

Item	KWCOB-X11HP0240A	KWCOB-X11HP0480A	KWCOB-X11HP0640A
Power	240W	320W	640W
Luminous Efficiency	≥140lm/w	≥140lm/w	≥140lm/w

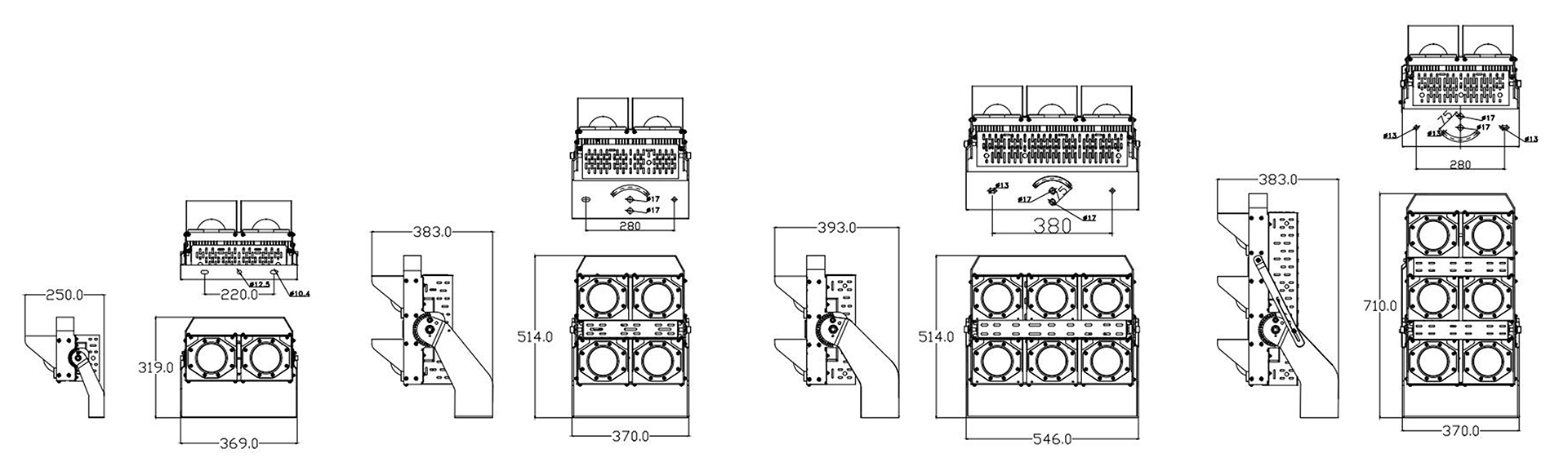

Product Dimensions	L370mmW235mmH284mm	L370mmW380mmH480mm	548mm392mm514mm 370mm380mm710mm
Net Weight	8.4KG	18.0KG	26.5KG
CRI(Ra)	70、80、90（Standard 80）
Color Temperature	2700-6500K（Standard 5000K）
IP Rating	IP67
The Beam Angle	60°、90°、120°、P45、Asymmetric optics、Cut-off design road light distribution、Tunnel Light distribution、Other beam angle available by customization

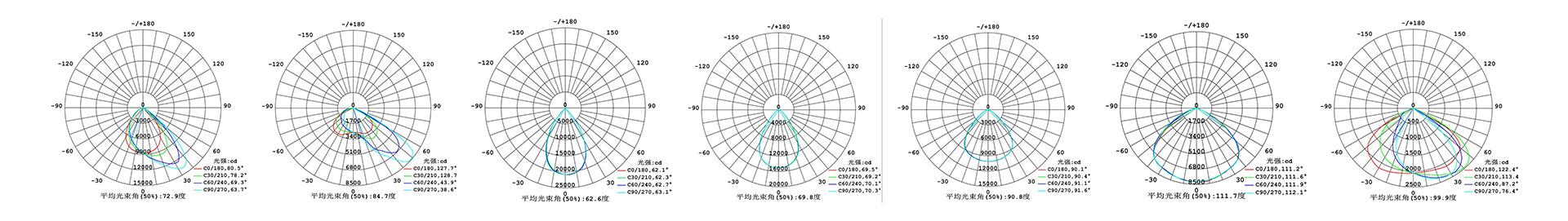

Part of the light distribution curves

High Power COB Spot Light 7distribution curve
