Ultra-high-power Deep Anti-glare Surface Mounted Downlight-high light efficiency and energy saving, providing uniform and soft lighting performance

1. Full scene adaptation, reshaping commercial lighting standards

Specially customized for large commercial spaces such as airport terminals, high-speed railway stations, auditoriums, exhibition halls and commercial complexes to create a professional light environment.

2. Cutting-edge light source technology, defining long-lasting lighting experience

KWCOB new ceramics phosphor packaging 1000W-level light source packaging technology, low thermal resistance packaging process, reduce the center temperature of the light source, and significantly delay the light decay process.

3. Innovative heat dissipation system, release high-power potential

Aluminum phase change heat transfer technology, central heat extraction and vertical fin structure design, power coverage 80W - 200W+, meet all large space high-power lighting needs; small size and high-power design, easily adapt to the replacement of old downlights, fill the market gap.

4. Precision optical configuration to ensure stable and long-lasting light effect

Select high-quality optical materials such as mirror aluminum and glass windows, excellent weather resistance, and good maintenance of constant illumination.

5. Deep anti-glare design creates a comfortable light environment

Deep anti-glare design, anti-glare angle>35°, achieves lower UGR (unified glare value), and can create a glare-free and comfortable visual experience for users.

6. Ultra-long warranty commitment, showing quality confidence

standard 5 years warranty, support 5-10 years customized plan.

Why choose us

Ø Deep Anti-Glare Design：KWCOB light source has high power and small emitting surface, with optical design advantages. The anti glare cutting angle is greater than 35 degrees, providing a low glare and high comfort lighting environment；

Ø High-power fills the gap in the large-space lighting market：A more flexible lighting solution for high-power tube lights, covering the full power range of 50W-200W, and customizable product solutions for 200W and above；

Ø The design employs mirror reflector cups and glass lenses for optics, avoiding the use of PC and PMMA plastic optical materials, ensuring the long service life of optical components is not constrained by material aging；

Ø Mature light source packaging technology：

n Fluorescent Crystal New Materials: Excellent Thermal Quenching Characteristics, Higher Light Conversion Efficiency, Lower Attenuation；

n Independent packaging patent technology: Fluorescent crystal kilowatt level COB light source packaging technology invention team；

n Phase change thermal conductivity technology: Vacuum phase change strengthening center for heat extraction, providing reliable heat dissipation for high-power COB；

n We can provide aluminum substrate COB and ceramic substrate COB light sources, which can be replaced and adapted to high-voltage isolation and non isolation drivers, filling the gaps in the lamp life cycle

Ø Long lifespan cycle: can provide customized products with a lifespan of 5-10 years；

Ø High protection design: can provide personalized customization for IP65-IP67 protection requirements and adapt to more environmental requirements；

Ø Personalized customization development: OPM specializes in designing customized services, focusing on providing full lifecycle cost reduction solutions for large-scale commercial spaces worldwide；

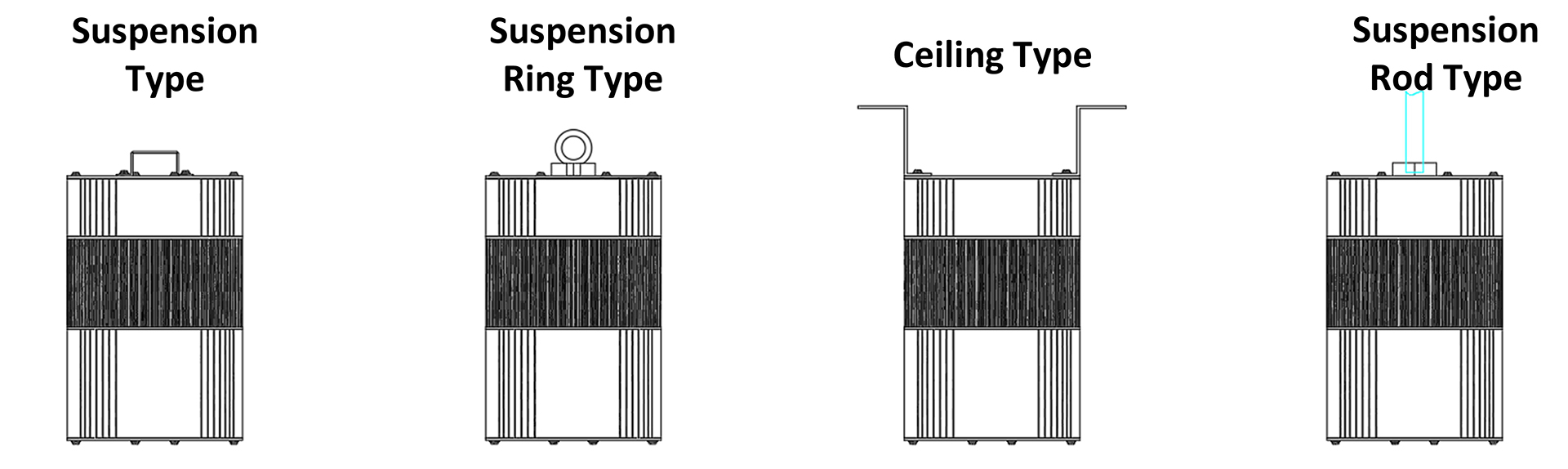

Installation Type

Ultra-high-power Deep Anti-glare Surface Mounted Downlight size

Technical Parameters

Item	KWCOB-X20MT01Y080A	KWCOB-X20MT01Y100A	KWCOB-X20MT01Y120A	KWCOB-X20MT01Y150A	KWCOB-X20MT01Y200A
Power	80W	100W	120W	150W	200W
Luminous Efficiency	≥130lm/w	≥130lm/w	≥130lm/w	≥130lm/w	≥130lm/w
Product Dimensions	φ200mm*H260mm	φ200mm*H260mm	φ200mm*H260mm	φ200mm*H300mm	φ200mm*H350mm
Net Weight	4.0KG	4.0KG	4.0KG	4.8KG	5.65KG
CRI(Ra)	80、90、95（Standard CRI 80）
Color Temperature	2700-6500K（Standard 4000K）
IP Rating	IP50/IP65 available by customization
The Beam Angle	30°/35°/40°/68°/Other beam angle available by customization

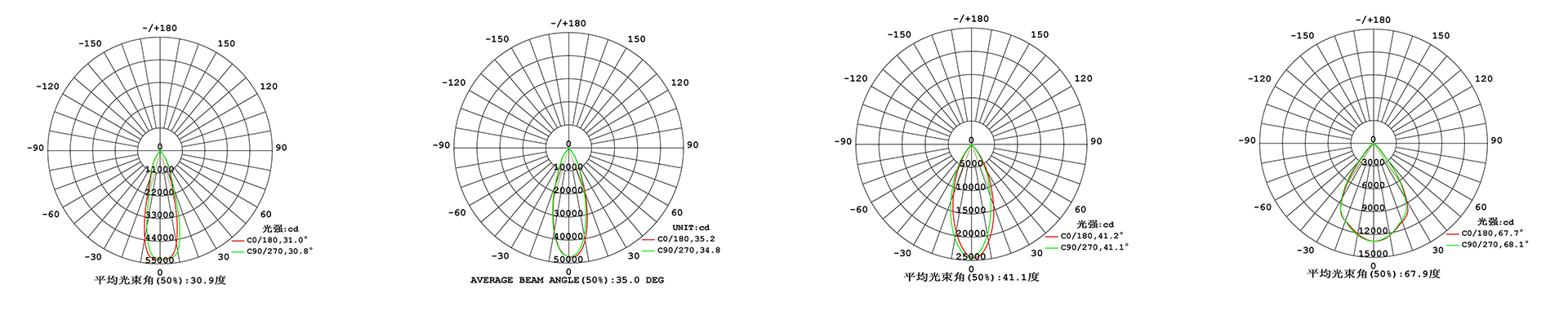

Part of the light distribution curves

Ultra-high-power Deep Anti-glare Surface Mounted Downlight distribution curve
