SCOB Flameproof Type Explosion-proof  Spot Light|50W-150W| Retrofit the Metal Halide Explosion-proof Lamps from 150W-400W

SCOB Flameproof Type Explosion-proof Spot Light|50W-150W| Retrofit the Metal Halide Explosion-proof Lamps from 150W-400W

Application: Tailored for explosive gas atmospheres with high risk, appropriate for Zone 1 and Zone 2 areas, and meets safety criteria for Class IA, IB, and IC gases. Its temperature classification spans T1 to T6, guaranteeing safe and dependable performance in flammable and explosive settings like chemical plants, petrol stations, and steel mills;

Light source: KWCOB’s ceramic substrate COB surface-mounted S-COB light source, low thermal resistance packaging method, markedly decreases the core temperature of the luminous body. A highly reflective ceramic base is used, eliminating risks of silver sulfide corrosion, issues with resin bracket degradation, and enabling extended operational lifespan;

Thermal management: Superior cooling approach, the luminaire uses an integrated die-cast design, the light source array is distributed, allows natural heat dissipation, and lowers cooling expense;

Energy efficiency: High-efficacy illumination design, achieving up to 160lm/w luminous efficacy, offering an economical choice. It aligns with contemporary energy conservation and environmental trends;

Warranty: Standard 5-year warranty;

    Related Products

    Installation Type

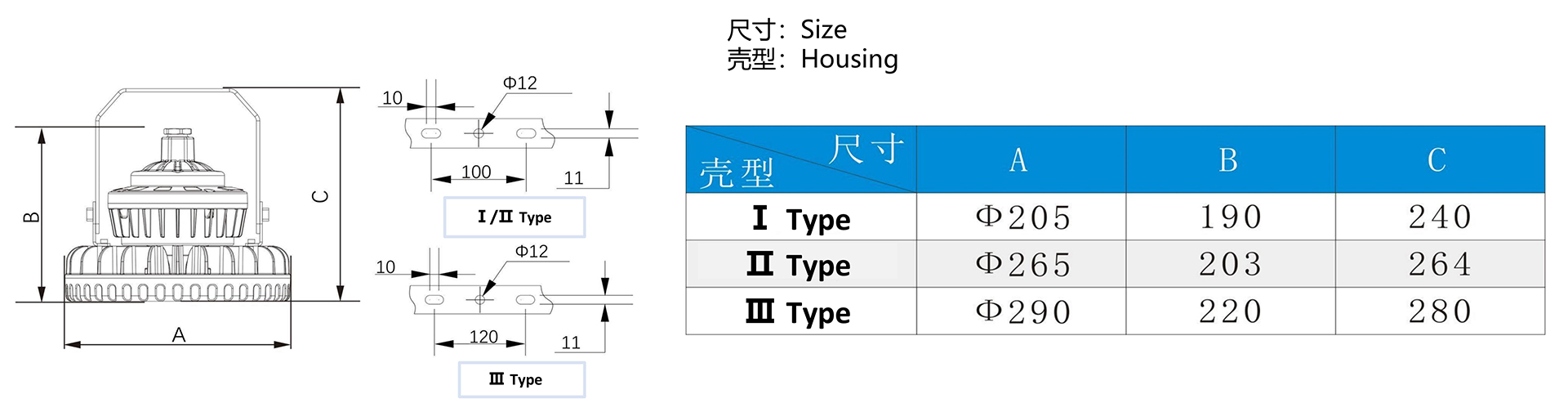

    Ceramic Substrate COB SMT light source explosion proof light3 size

    Technical Parameters

    Item

    KWCOB-B10EX01Y075A

    KWCOB-B10EX01Y100A

    Power

    75W

    100W

     Luminous Efficiency

    ≥120lm/w

    ≥120lm/w

    Product Dimensions

    φ205mm*H240mm

    φ265mm*H264mm

    Net Weight

    3.8KG

    5.5KG

    CRI(Ra)

    Ra70、80

     Color Temperature

    2700-6500K(Standard 5000K)

    IP Rating

    IP65

    Gold thread

    G3/4”

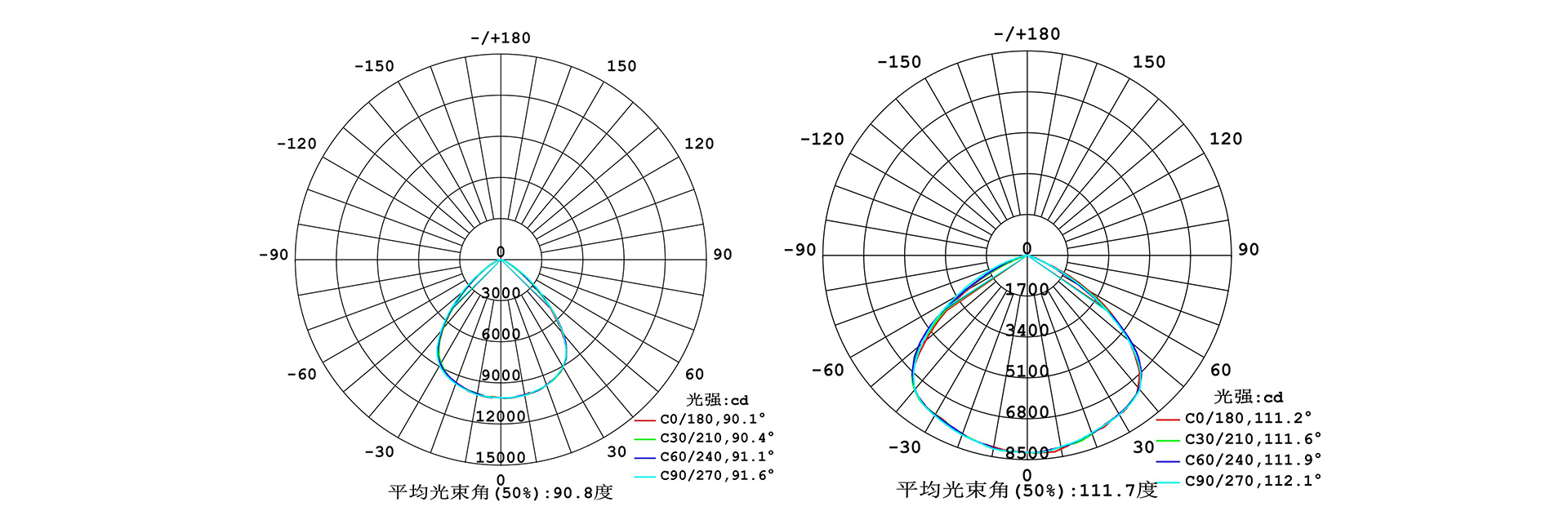

    Part of the light distribution curves

    Ceramic Substrate COB SMT light source explosion proof light3 distribution curve
