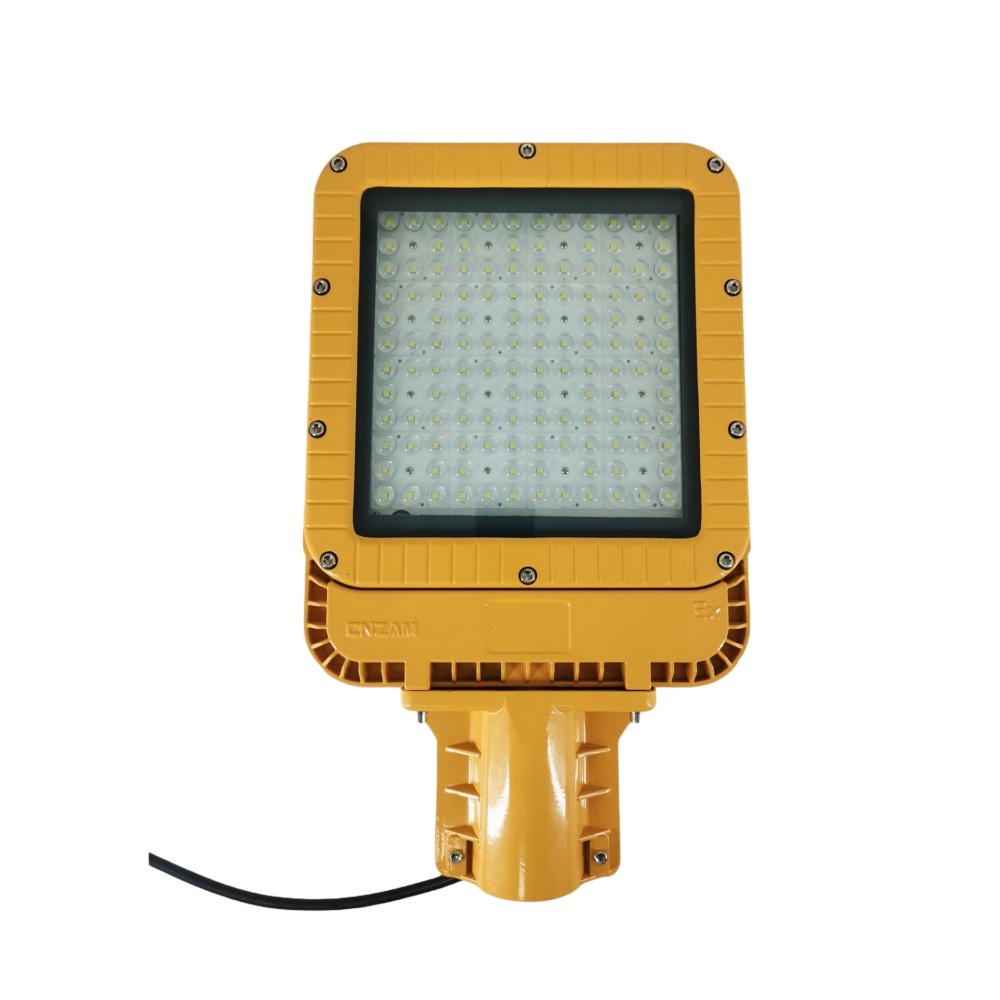

SCOB Flameproof Type Explosion-proof Road Light|40W-120W|Ceramic Substrate SMT Light Source Anti-sulfurization|Equipped with ZHAGA Optics| Retrofit the Metal Halide Explosion-proof Lamps from 70W-250W

SCOB Flameproof Type Explosion-proof Road Light|40W-120W|Ceramic Substrate SMT Light Source Anti-sulfurization|Equipped with ZHAGA Optics| Retrofit the Metal Halide Explosion-proof Lamps from 70W-250W

1. Application scenarios: Designed for high-risk explosive gas environments, suitable for Zone 1 and Zone 2 locations, and in compliance with safety Standard s for Class IA, IB and I1C gases. Its temperature rating ranges from T1 to T6, ensuring safety and reliability in flammable and explosive working environments such as chemical plants, gas stations and steel mills;

2. Light source features: Light source features: KWCOB's ceramic substrate COB surface mount light source S-COB, low thermal resistance packaging process, significantly reduces the center temperature of the light source. Using a highly reflective ceramic substrate, there is no risk of silver plating sulfide, no resin bracket aging problems, and a longer service life design;

3. Heat dissipation: Excellent heat dissipation solution, the lamp adopts a die-casting integrated solution, the light source array is dispersed, natural heat diffusion, and reduces heat dissipation costs;

4. Optics: High-efficiency lighting design, the light efficiency can reach up to 160lm/w, and it is a cost-effective solution. It conforms to the trend of modern energy conservation and environmental protection;

5. Reliability: Conventional 5 years warranty;

    Related Products

    Installation Type

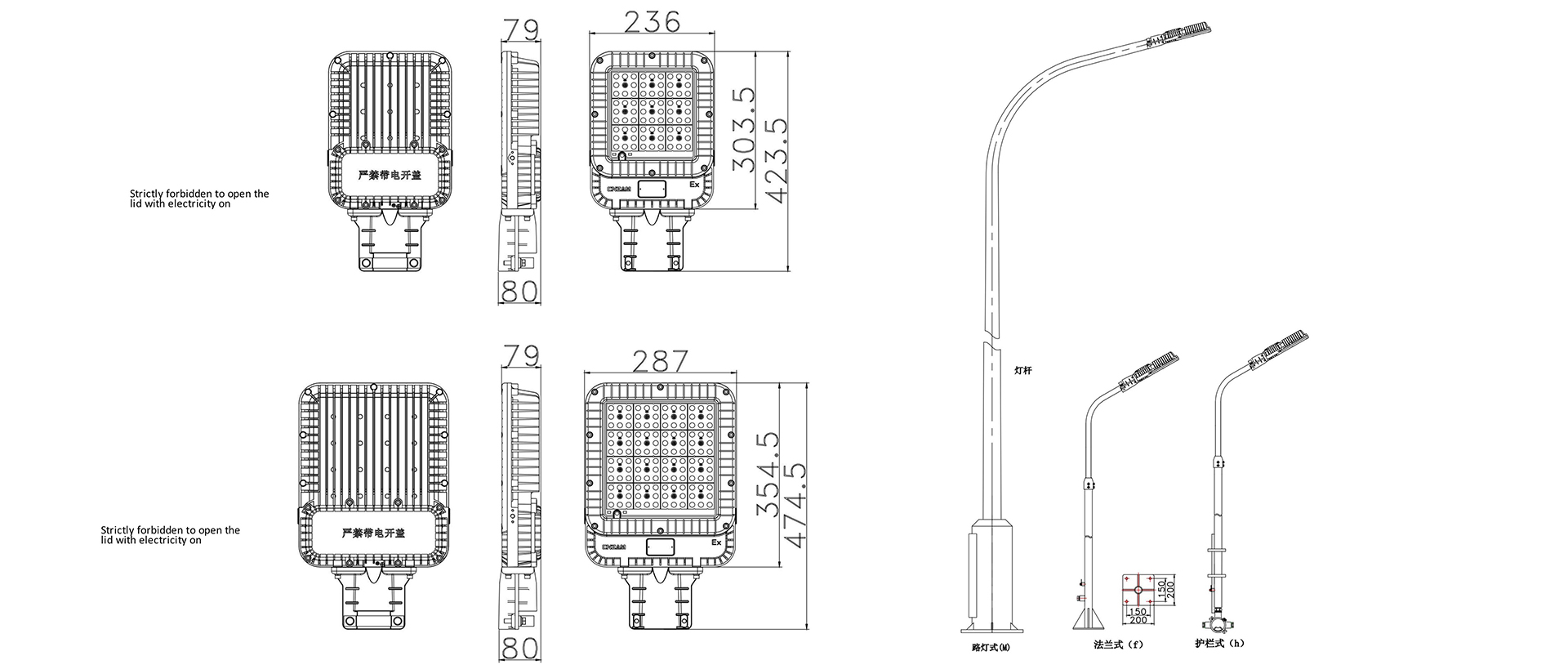

    Ceramic Substrate COB SMT light source explosion proof light size

    Technical Parameters

    Item

    KWCOB-B11EX02F070A

    KWCOB-B11EX02F100A

    Power

    40-70W

    80-120W

     Luminous Efficiency

    ≥120lm/w

    ≥120lm/w

    Product Dimensions

    L423.5*W236*H79mm

    L474.5*W287*H79mm

    Net Weight

    6.5KG

    8.3KG

    CRI(Ra)

    ≥70

     Color Temperature

    2700-6500K(Standard 5000K)

    IP Rating

    IP65

    The Beam Angle

    10°/30°/45°/60°/90°,Other beam angle available by customization

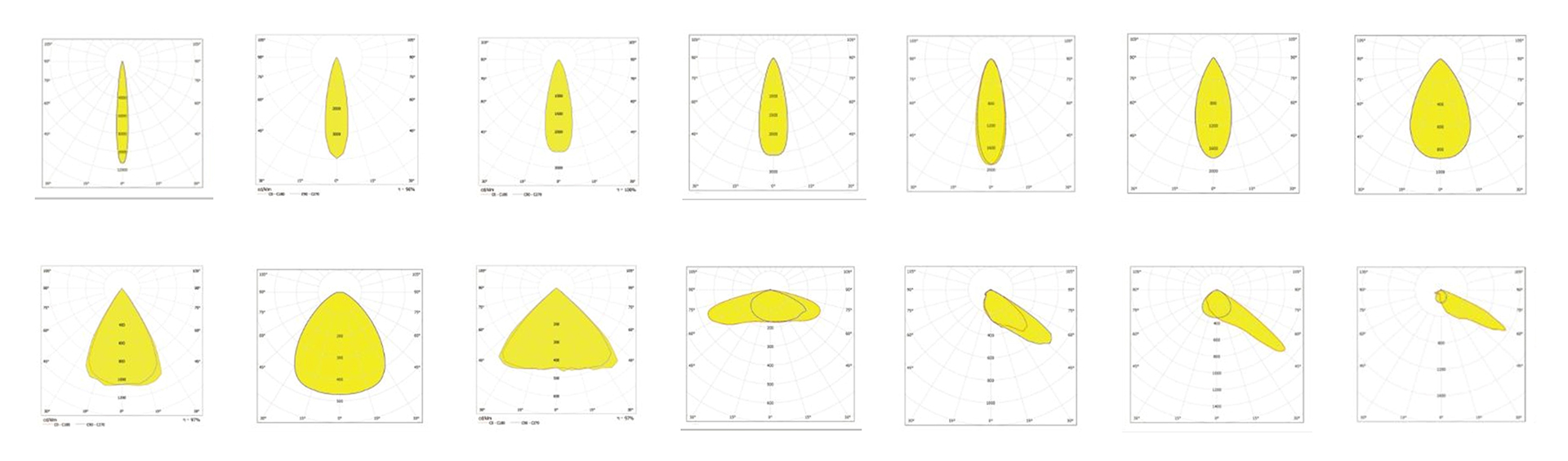

    Part of the light distribution curves

    Ceramic Substrate COB SMT light source explosion proof light2 distribution curve
