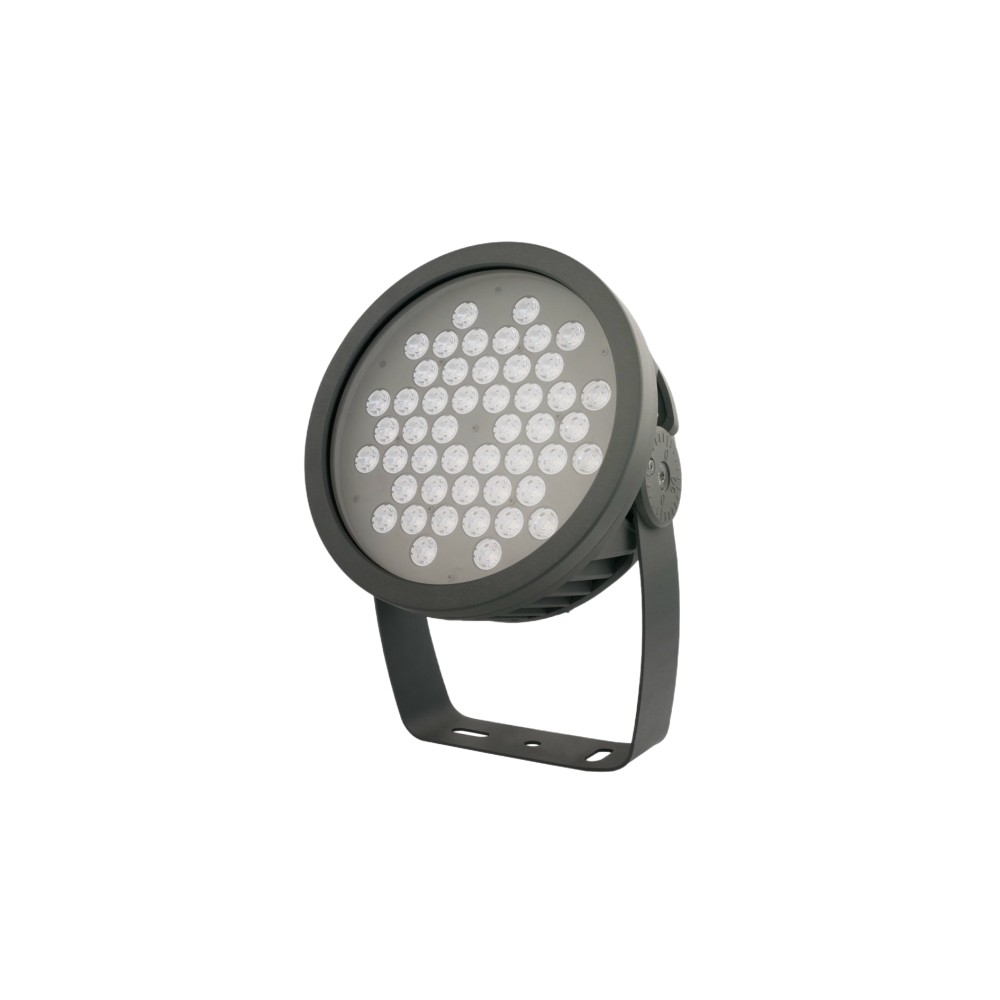

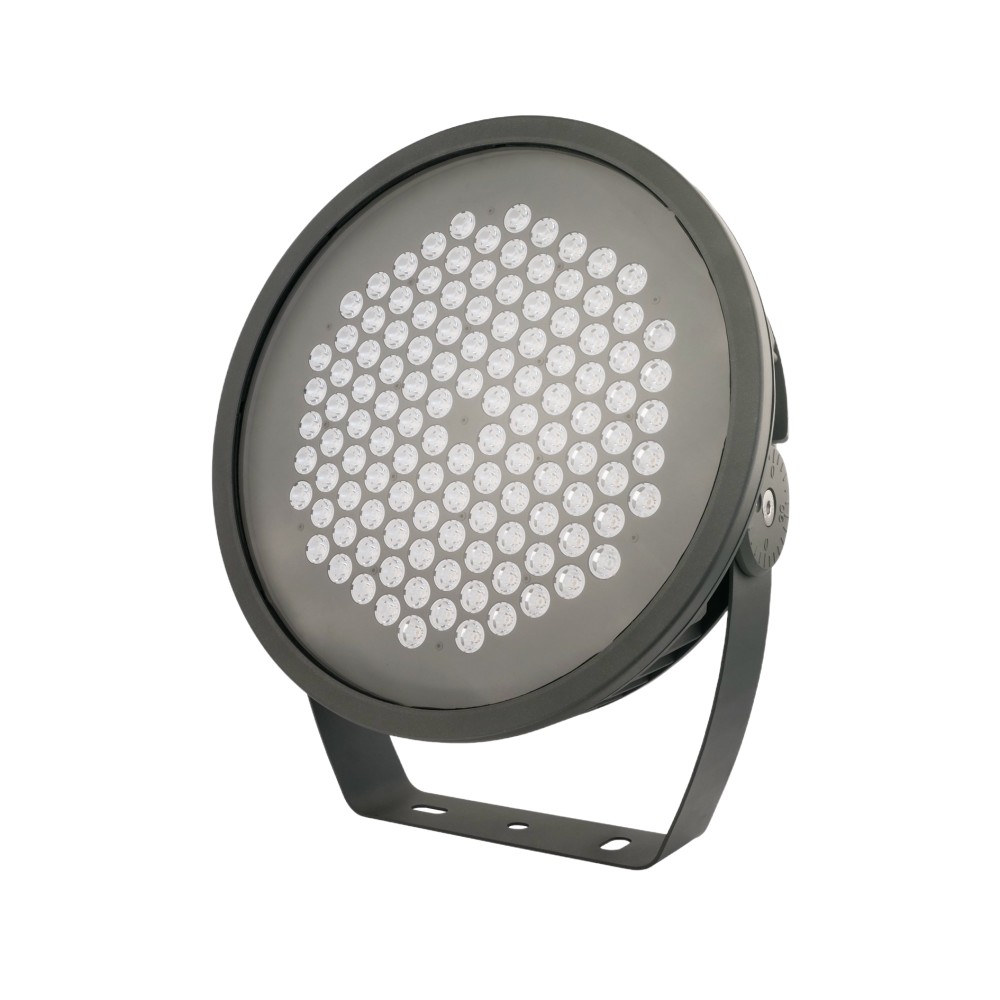

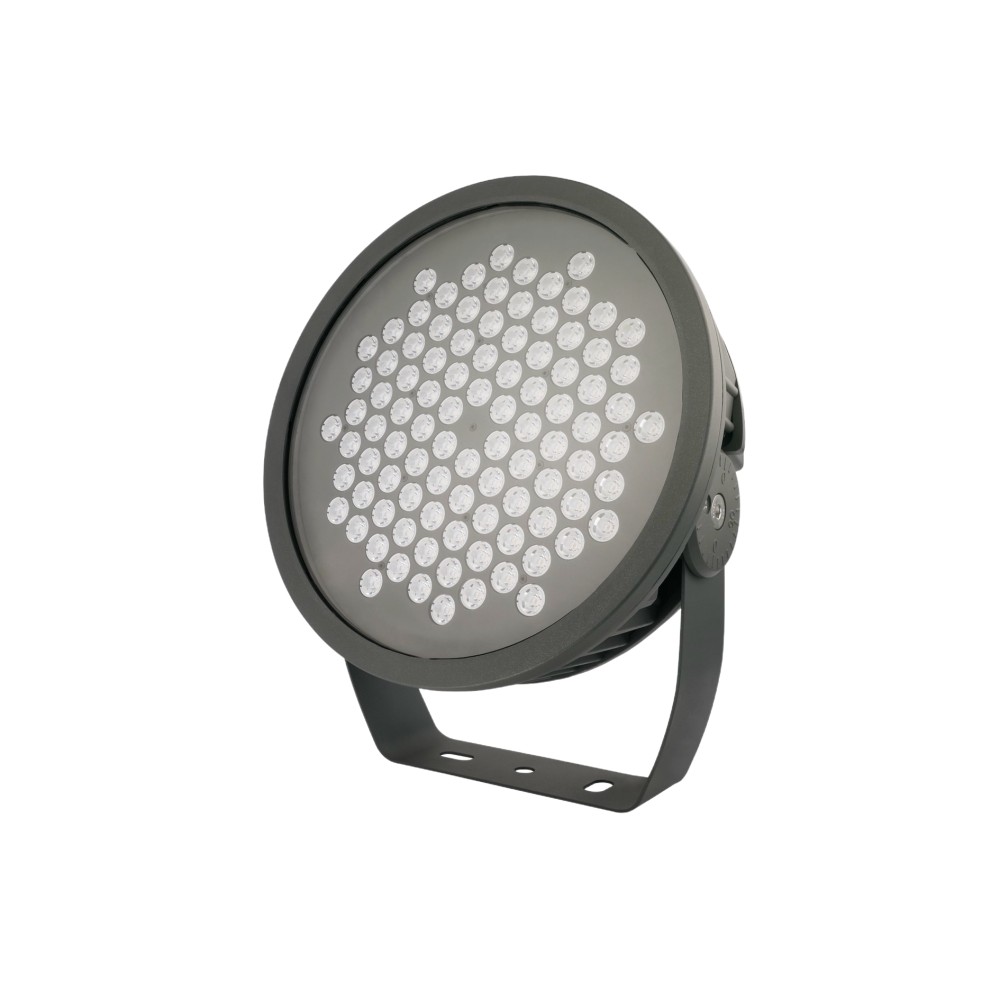

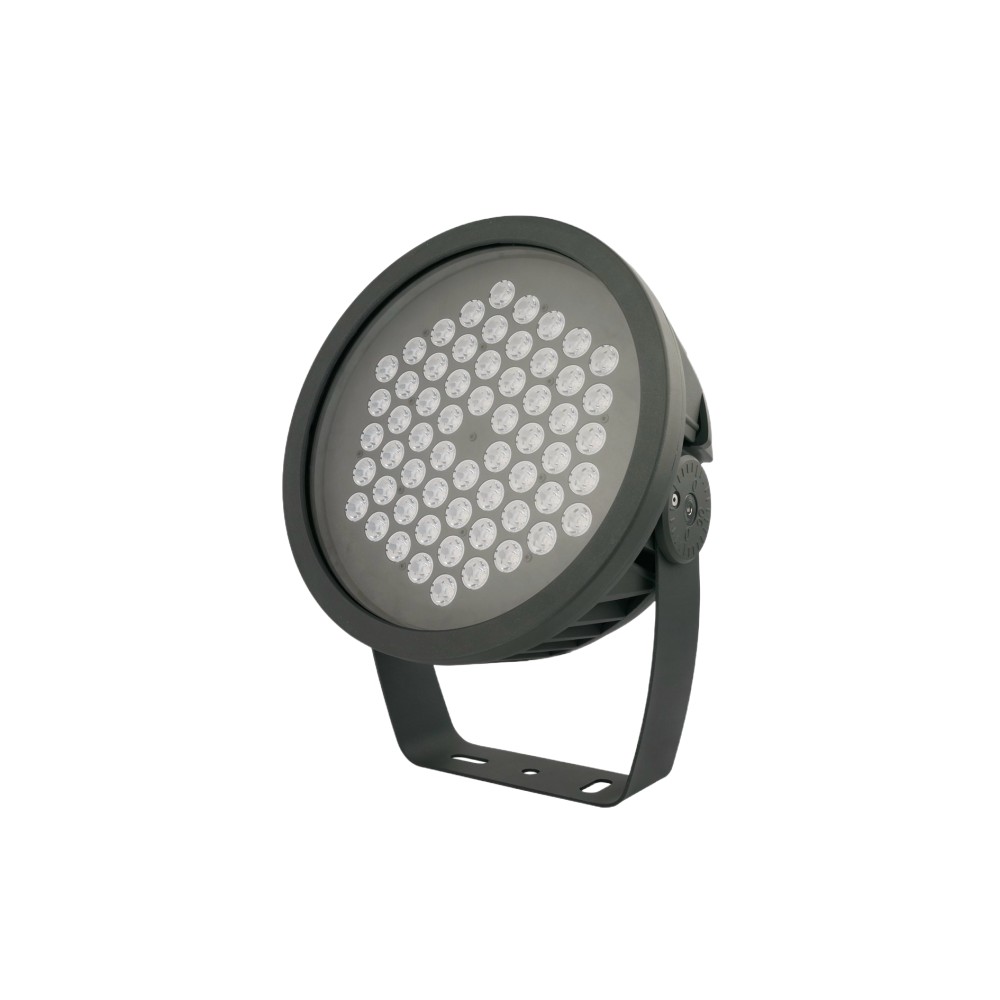

SCOB Architectural Outdoor Floodlight

SCOB Architectural Outdoor Floodlight

1. Application scenarios: 60W to 120W product solutions are widely used in architectural landscape lighting such as large-scale building projection, bridge projection, etc., to meet the needs of high-power projection;

2. Light source characteristics: KWCOB's ceramic COB surface mount light source S-COB, low thermal resistance packaging process, significantly reduces the center temperature of the light source. Adopting high-reflection ceramic substrate, there is no risk of silver plating sulfide, no resin bracket aging trouble, and longer service life design;

3. Heat dissipation: The light source array is dispersed, natural heat diffusion, reducing the heat dissipation cost, combined with the vertical fin structure design and up and down convection ventilation, optimize and improve the heat dissipation efficiency;

4. Optics: Small-angle projection design, can provide customized lighting solutions according to the specific scene requirements of customers;

5. Reliability: Conventional 5-year warranty;

    Related Products

    Installation Type

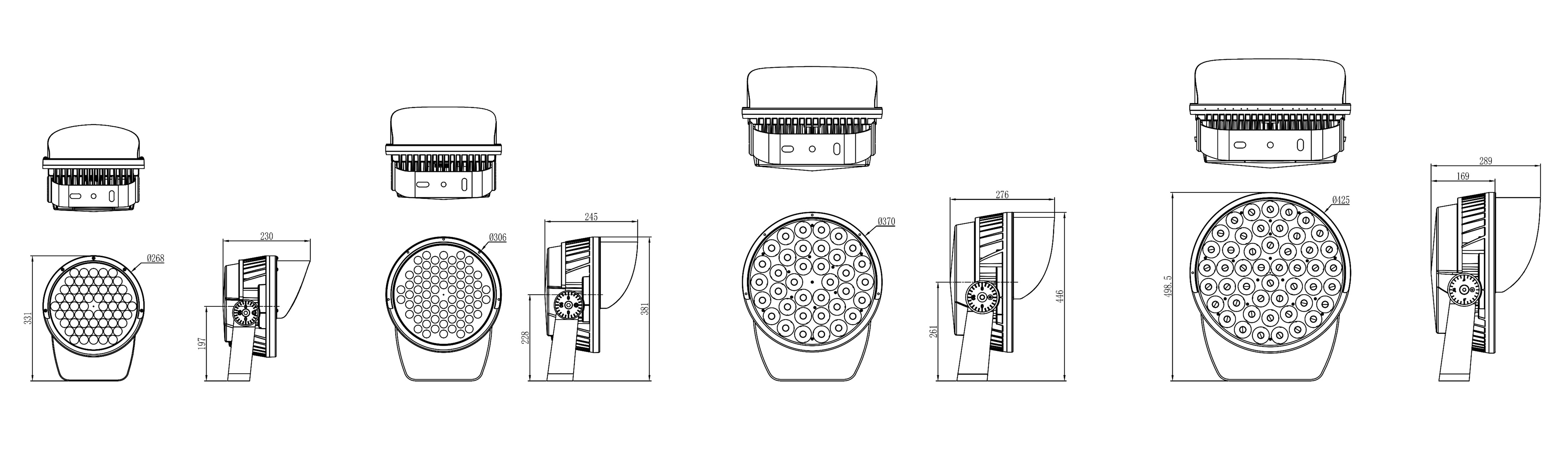

    Ceramic Substrate COB SMT light source spot light2 size

    Technical Parameters

    Item

    KWCOB-V11TG021K060A

    KWCOB-V11TG021K080A

    KWCOB-V11TG021K100A

    KWCOB-V11TG021K120A

    Power

    60W

    80W

    100W

    120W

     Luminous Efficiency

    ≥100lm/w

    ≥110lm/w

    ≥110lm/w

    ≥110lm/w

    Product Dimensions

    φ268mm*W230mm*H331mm

    φ306mm*W245mm*H381mm

    φ370mm*W276mm*H446mm

    φ425mm*W289mm*H498.5mm

    CRI(Ra)

    Ra70、80

     Color Temperature

    2200-6500K(Standard 4000K)

     IP Rating

    IP67

    Beam Angle

    20°/30°/Other beam angle available by customization

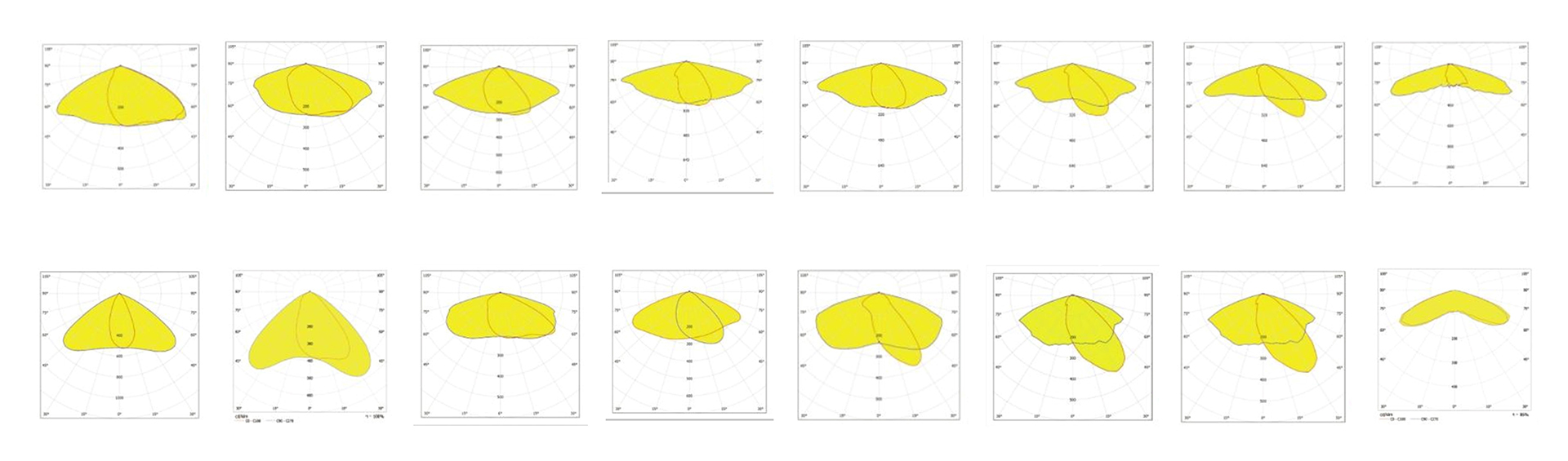

    Part of the light distribution curves

    Ceramic Substrate COB SMT light source road light 2 distribution curve
