SCOB Architectural Outdoor Floodlight

SCOB Architectural Outdoor Floodlight

1. Application scenarios: High-power product solutions above 200W are widely used in architectural landscape lighting such as large-scale building projection, bridge projection, etc. to meet the needs of high-power projection;

2. Light source characteristics: KWCOB's ceramic COB surface mount light source S-COB, low thermal resistance packaging process, significantly reduces the center temperature of the light source. Adopting high-reflection ceramic substrate, there is no risk of silver plating sulfide, no resin bracket aging trouble, and longer service life design;

3. Heat dissipation: The light source array is dispersed, natural heat diffusion, reducing the heat dissipation cost, combined with the vertical fin structure design and up and down convection ventilation, optimize and improve the heat dissipation efficiency;

4. Optics: Small-angle projection design, can provide customized lighting solutions according to the specific scene requirements of customers;

5. Reliability: Conventional 5-year warranty

    Related Products

    Installation Type

    Ceramic Substrate COB SMT light source spot light1 size

    Technical Parameters

    Item

    KWCOB-P11TG01K0200A

    KWCOB-P11TG01K0300A

    KWCOB-P11TG01K0400A

    KWCOB-P11TG01K0600A

    KWCOB-P11TG01K0800A

    KWCOB-P11TG01K1200A

    KWCOB-P11TG01K1600A

    Power

    200W

    300W

    400W

    600W

    800W

    1200W

    1600W

     Luminous Efficiency

    ≥110lm/w

    ≥110lm/w

    ≥110lm/w

    ≥110lm/w

    ≥110lm/w

    ≥110lm/w

    ≥110lm/w

    Product Dimensions

    L404mm * W192mm * H321.5mm

    L490mm * W203mm * H352.5mm

    L643mm * W217mm * H392mm

    L591mm * W457.5mm * H465mm

    L738mm * W466mm * H480mm

    L746mm * W715mm * H632mm

    L703mm * W967mm * H625mm

    CRI(Ra)

    Ra70、80

     Color Temperature

    2200-6500K(Standard 4000K)

     IP Rating

    IP67

    Beam Angle

    20°/30°/Other beam angle available by customization

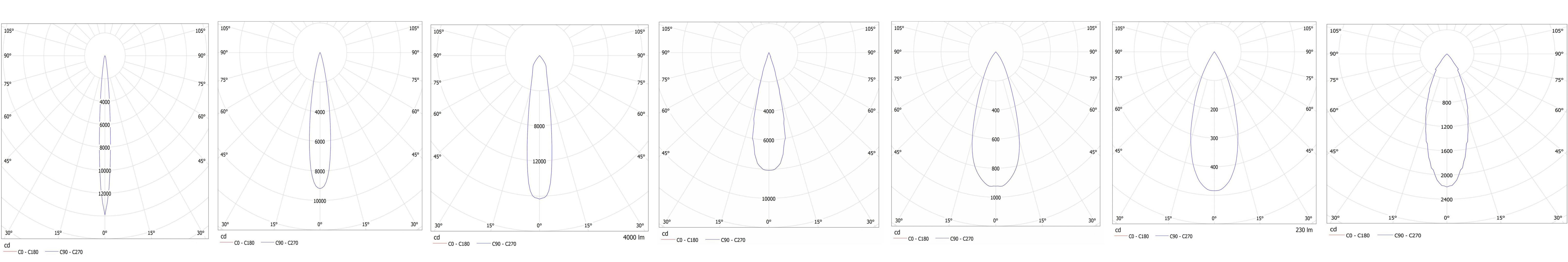

    Part of the light distribution curves

    Ceramic Substrate COB SMT light source spot light1 distribution curve
