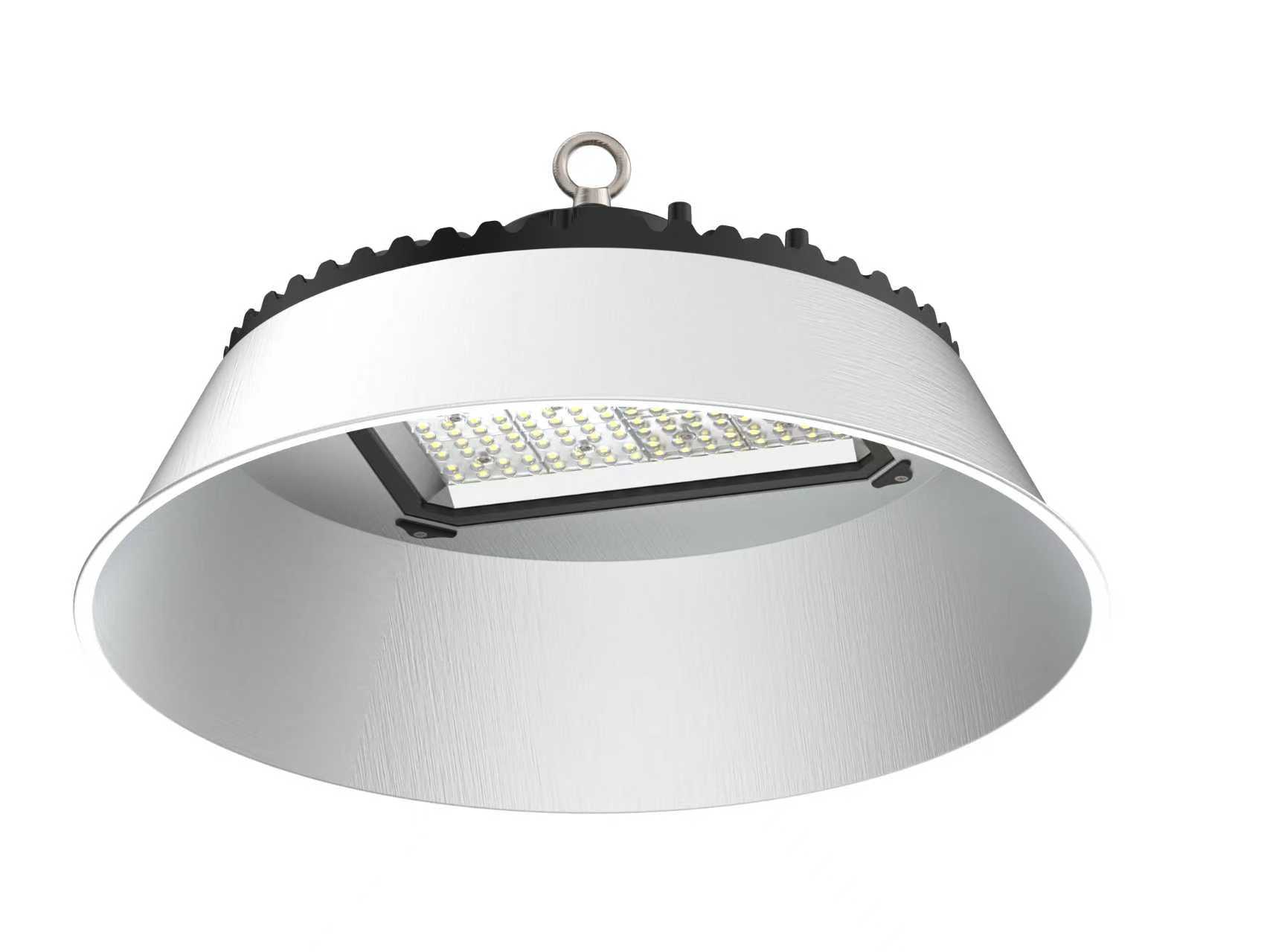

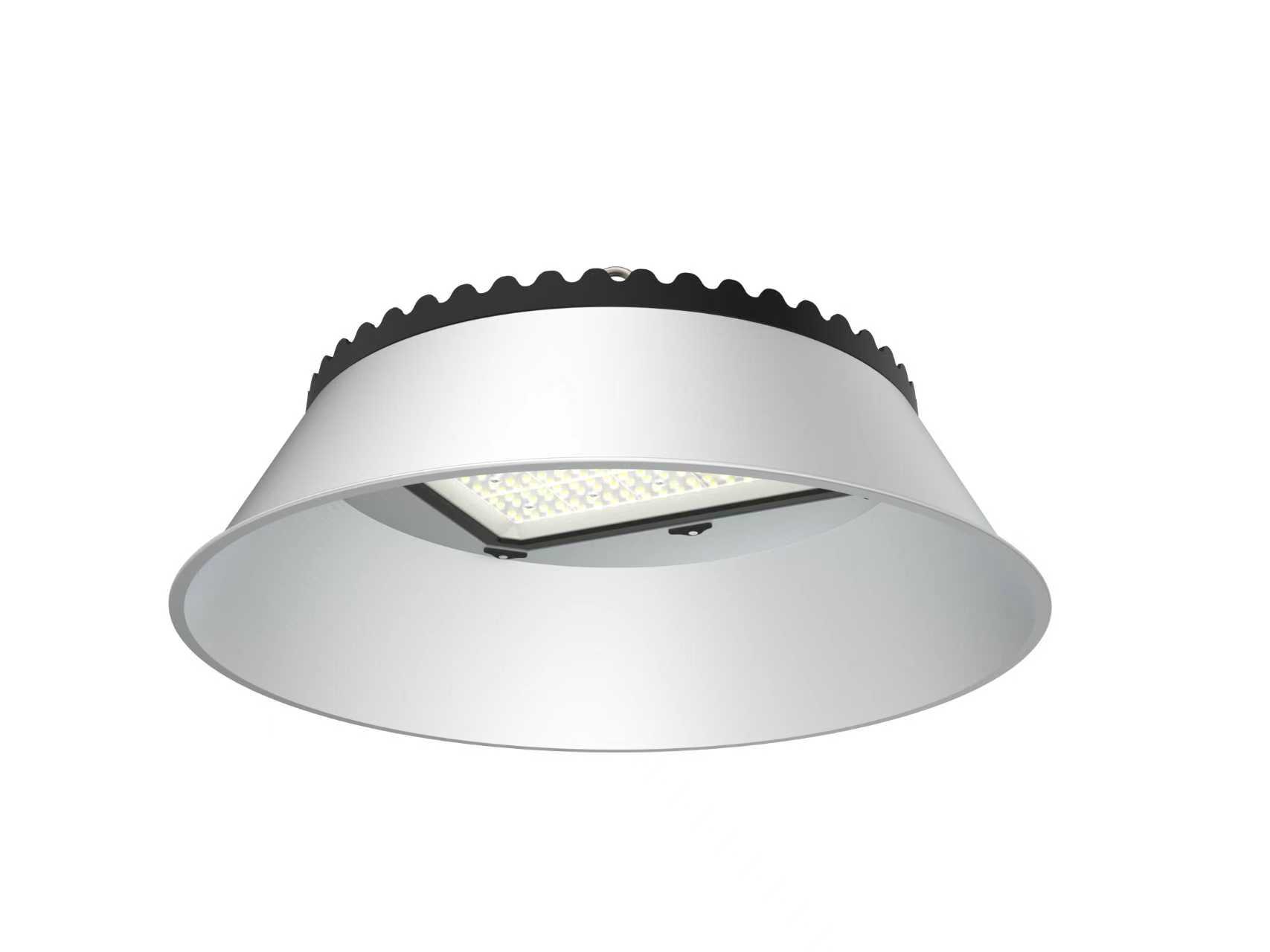

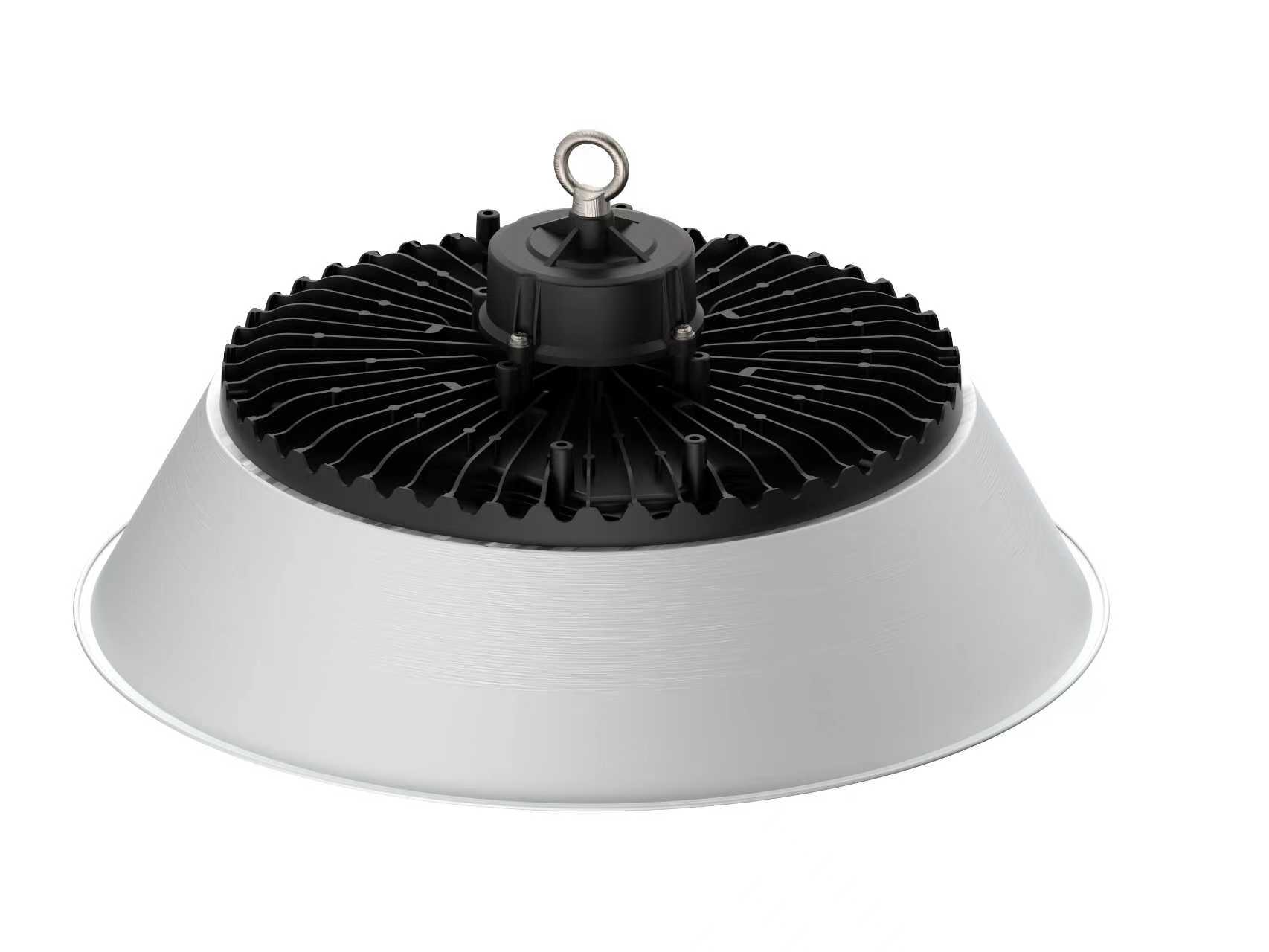

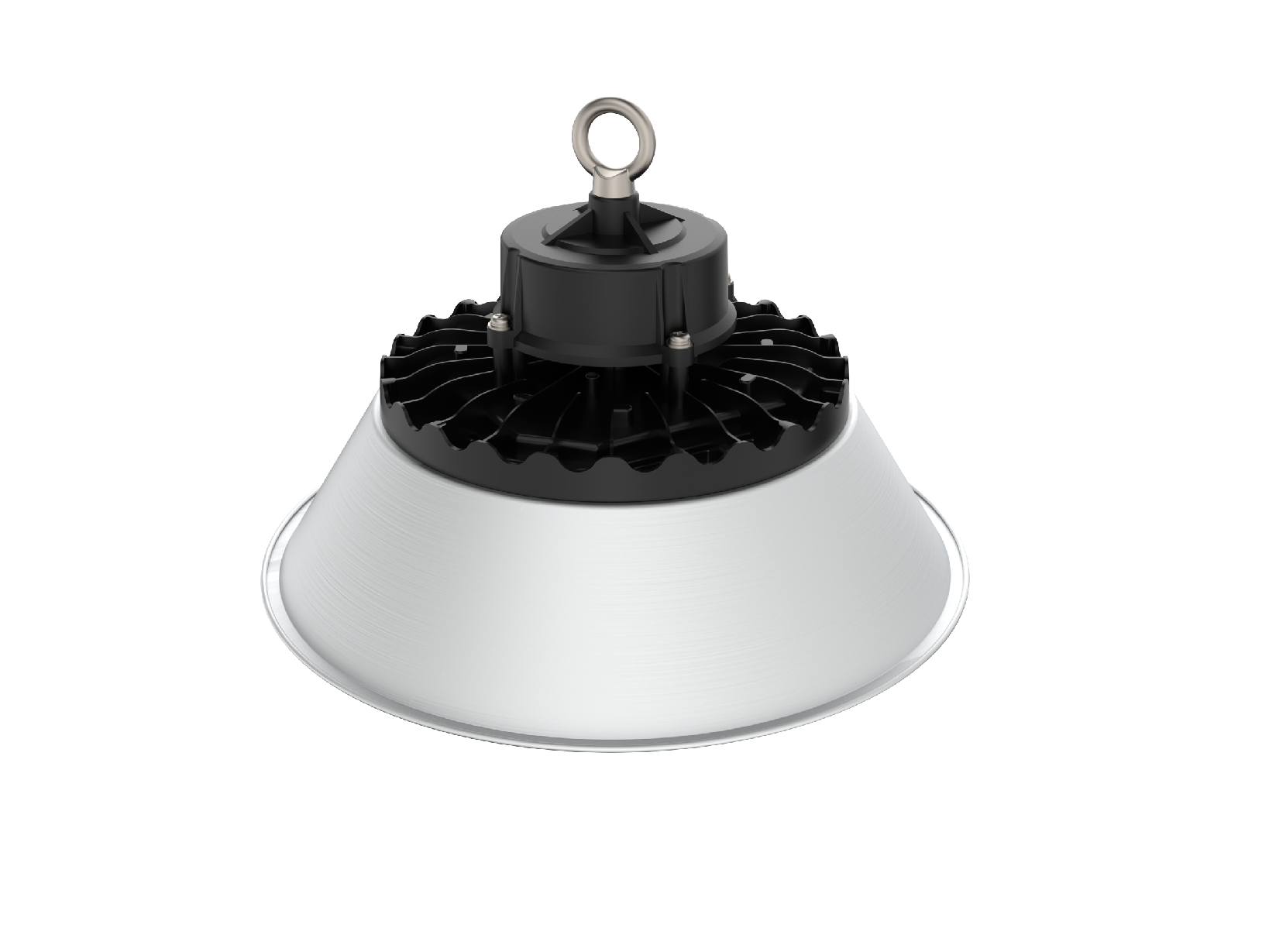

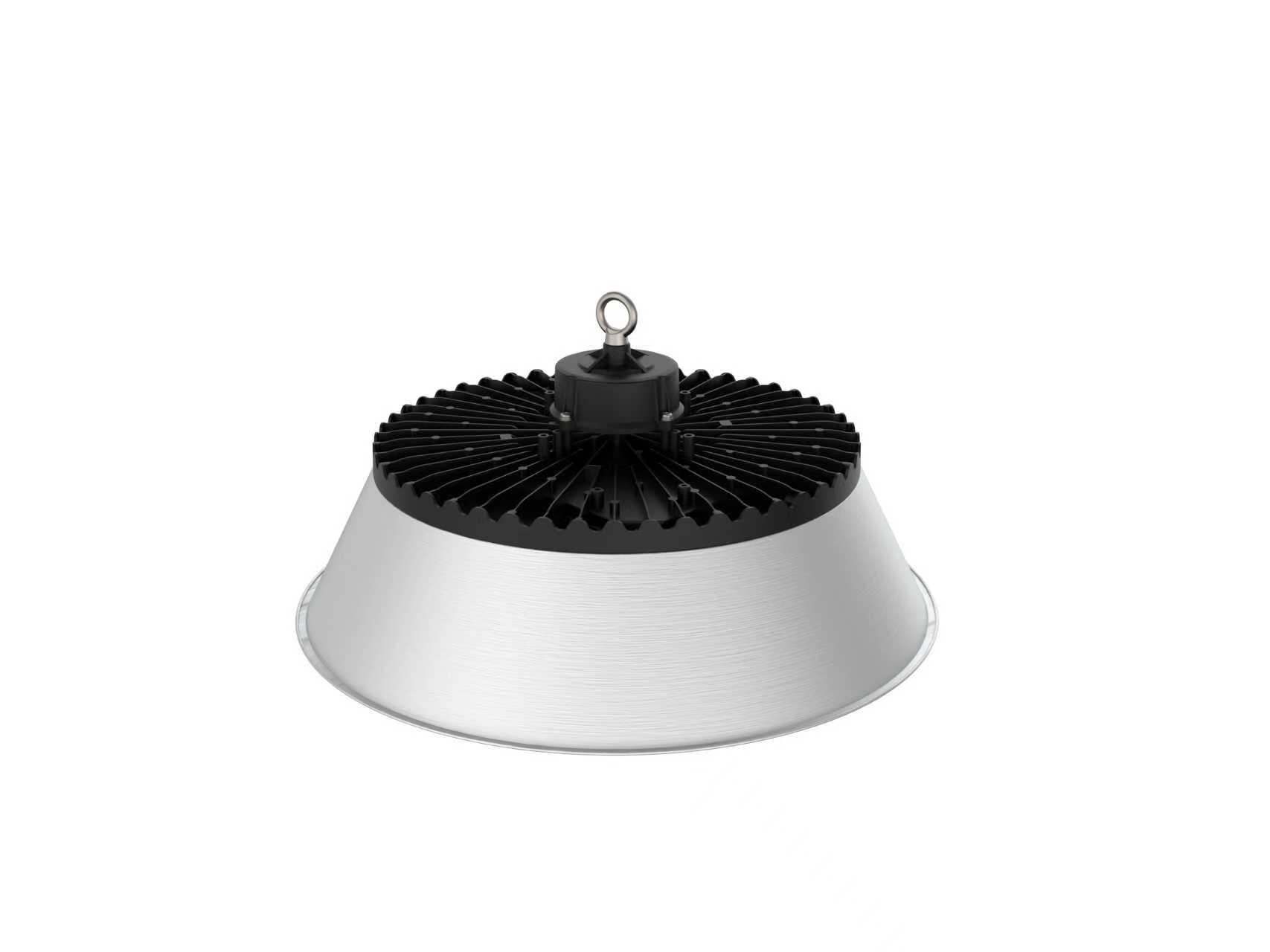

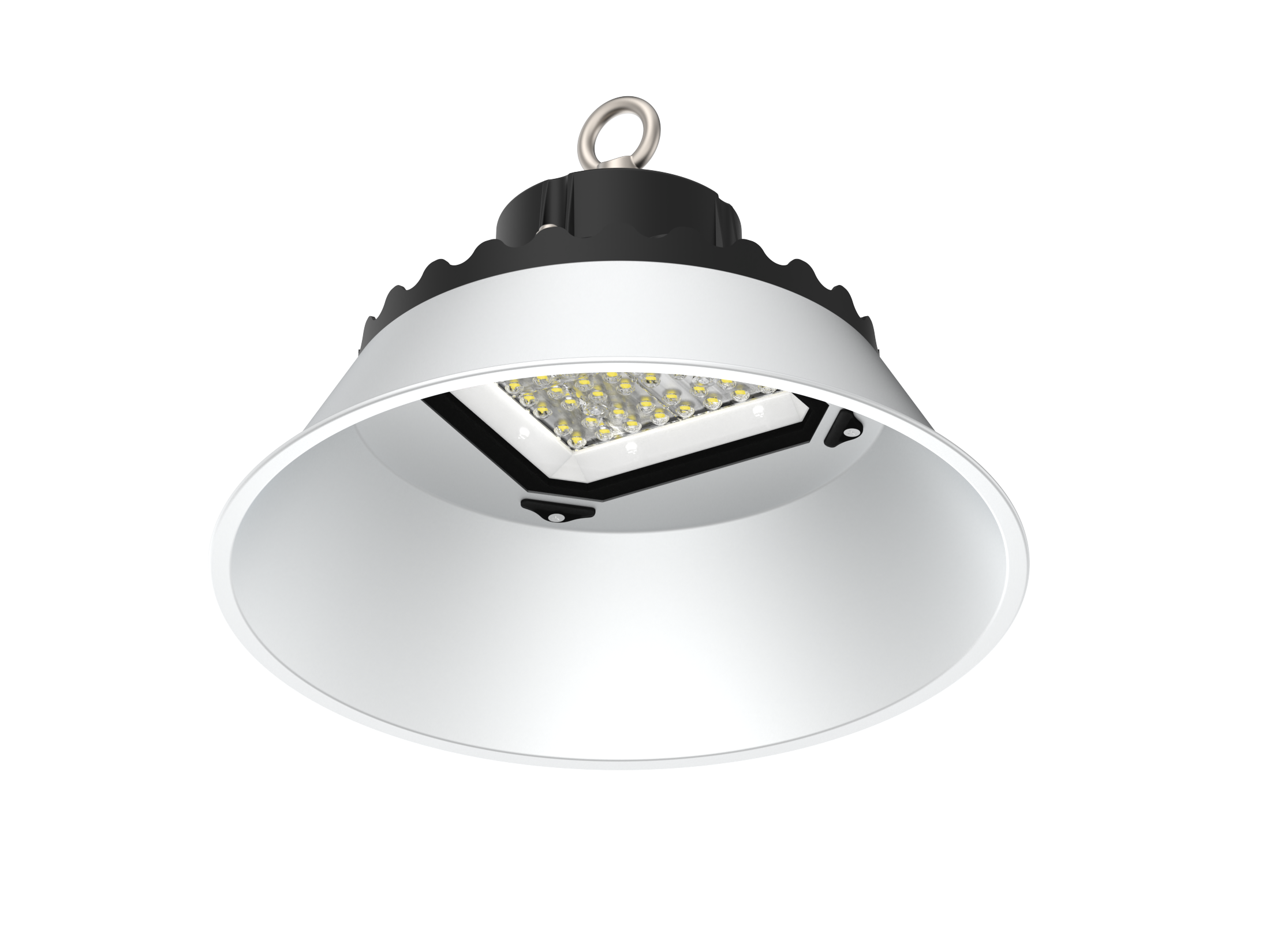

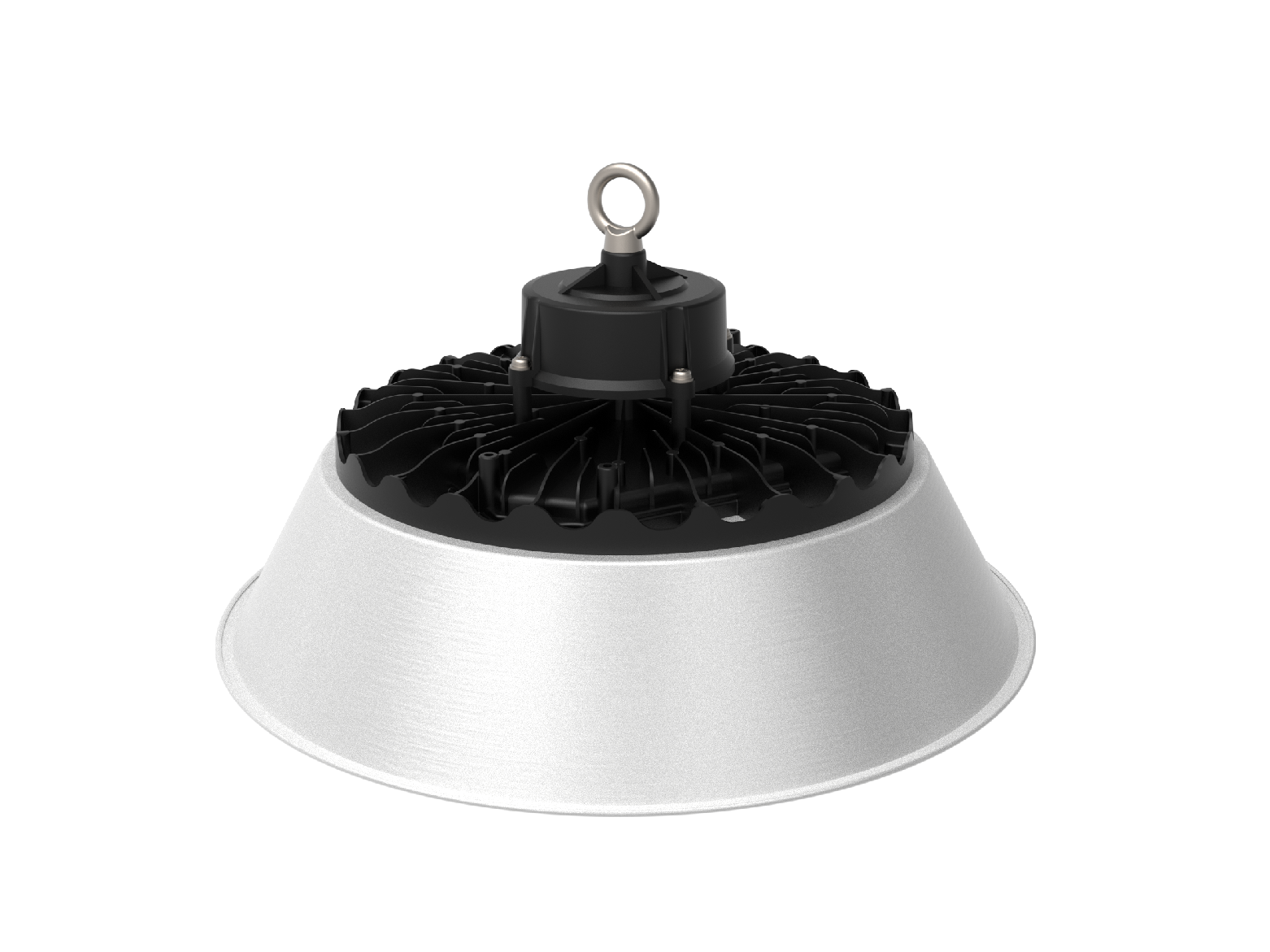

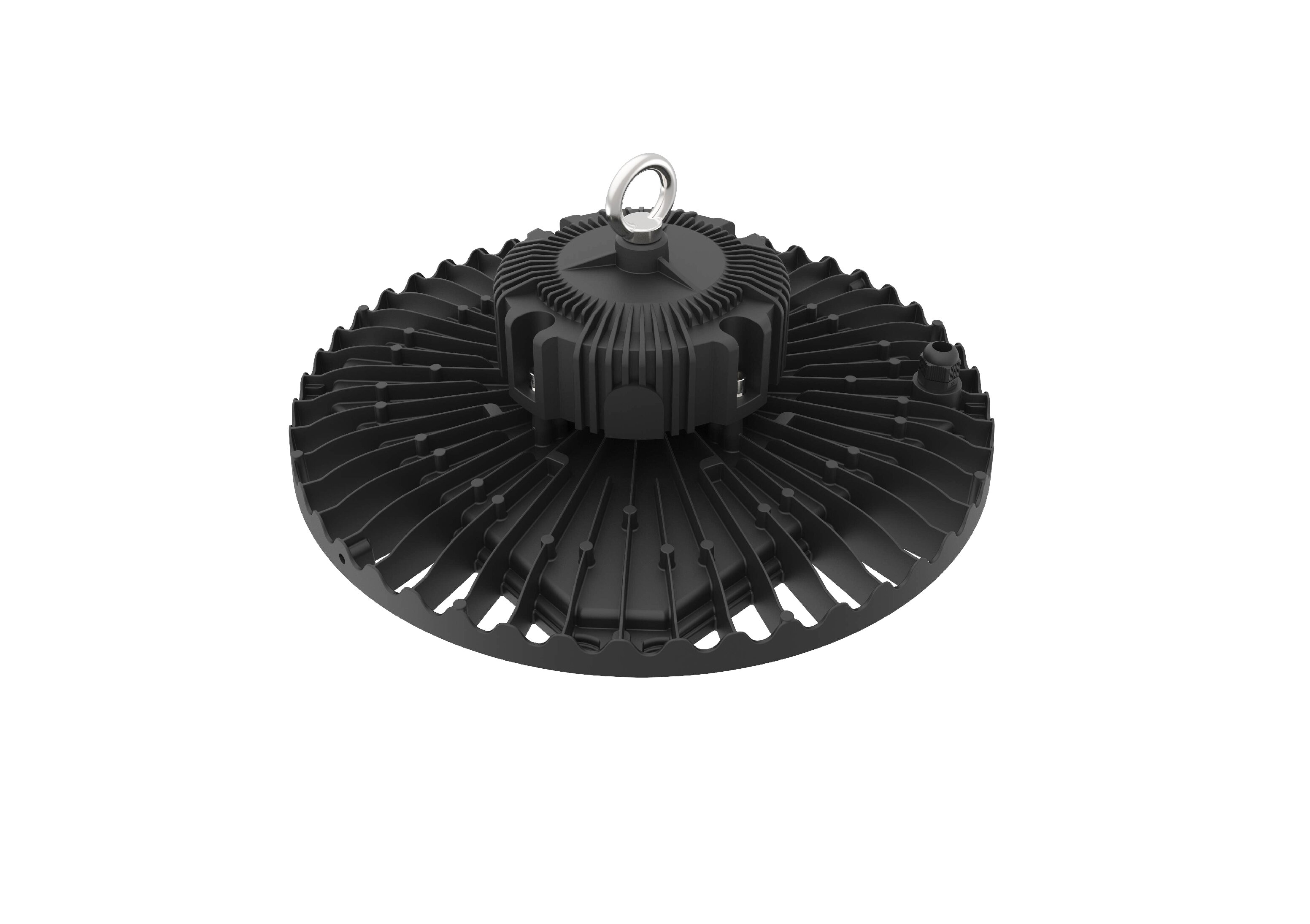

S-COB UFO Highbay Light|Ceramic Substrate SMT Light Source|Anti-sulfurization|Low Decay|High Lumen|Highly Energy-efficient|100W-240W

S-COB UFO Highbay Light|Ceramic Substrate SMT Light Source|Anti-sulfurization|Low Decay|High Lumen|Highly Energy-efficient|100W-240W

1. Application scenarios: high-speed rail maintenance stations, production workshop lighting;

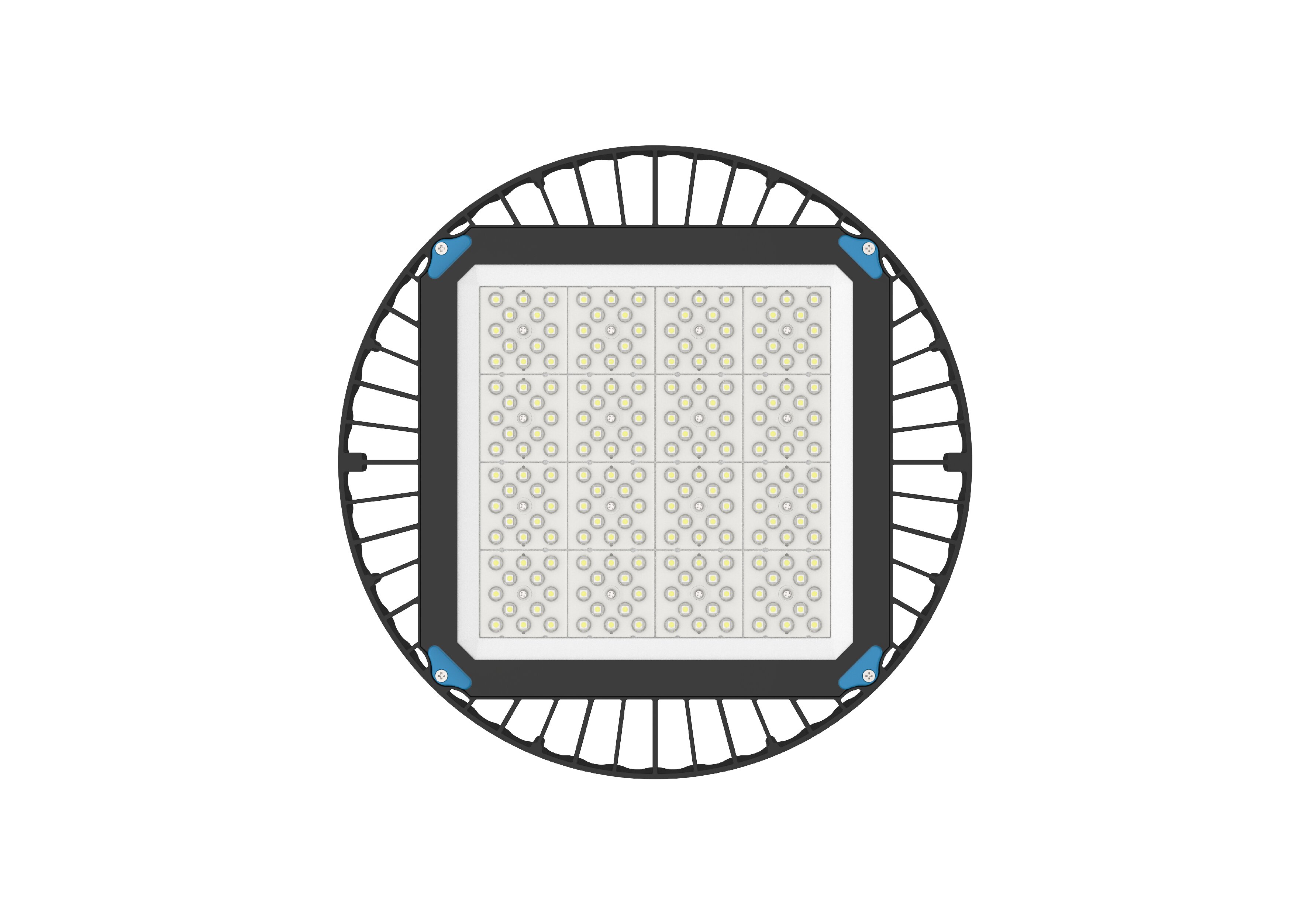

2. Light source features: KWCOB's ceramic COB surface mount light source S-COB, low thermal resistance packaging process, significantly reduces the center temperature of the light source. Adopting high-reflection ceramic substrate, there is no risk of silver plating sulfide, no resin bracket aging trouble, and longer service life design;

3. Heat dissipation: excellent heat dissipation solution, the lamp adopts die-casting integrated solution, the light source array is dispersed, natural heat diffusion, and reduces the heat dissipation cost.

4. Optics: high-efficiency lighting design, after careful design, the whole lamp light effect reaches ≥180lm/w, which is in line with the modern trend of energy saving and environmental protection.

5. Reliability: conventional 5-year warranty;

    Related Products

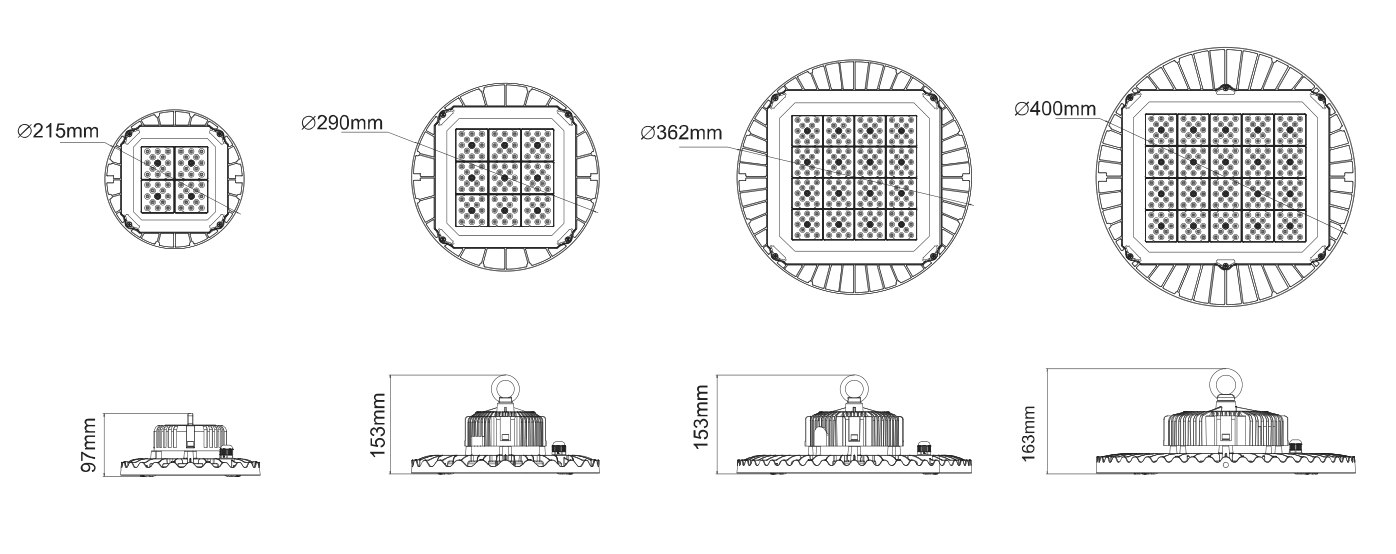

    Installation Type

    wechat-image_20260103204517_128_3

    Technical Parameters

    Item

    KWCOB-G10HB01Y100A

    KWCOB-G10HB01Y150A

    KWCOB-G10HB01Y200A

    Power

    100W

    150W

    200W

     Luminous Efficiency

    ≥160lm/w

    ≥160lm/w

    ≥160lm/w

    Product Dimensions

    φ290mm*H153mm

    φ362mm*H153mm

    φ400mm*H163mm

    Net Weight

    2.2KG

    2.6KG

    3.25KG

    CRI(Ra)

    ≥70

     Color Temperature

    2700-6500K(Standard 4000K)

    IP Rating

    IP65

    The Beam Angle

    15°、30°、45°、60°、90°、120°(Other beam angle available by customization)

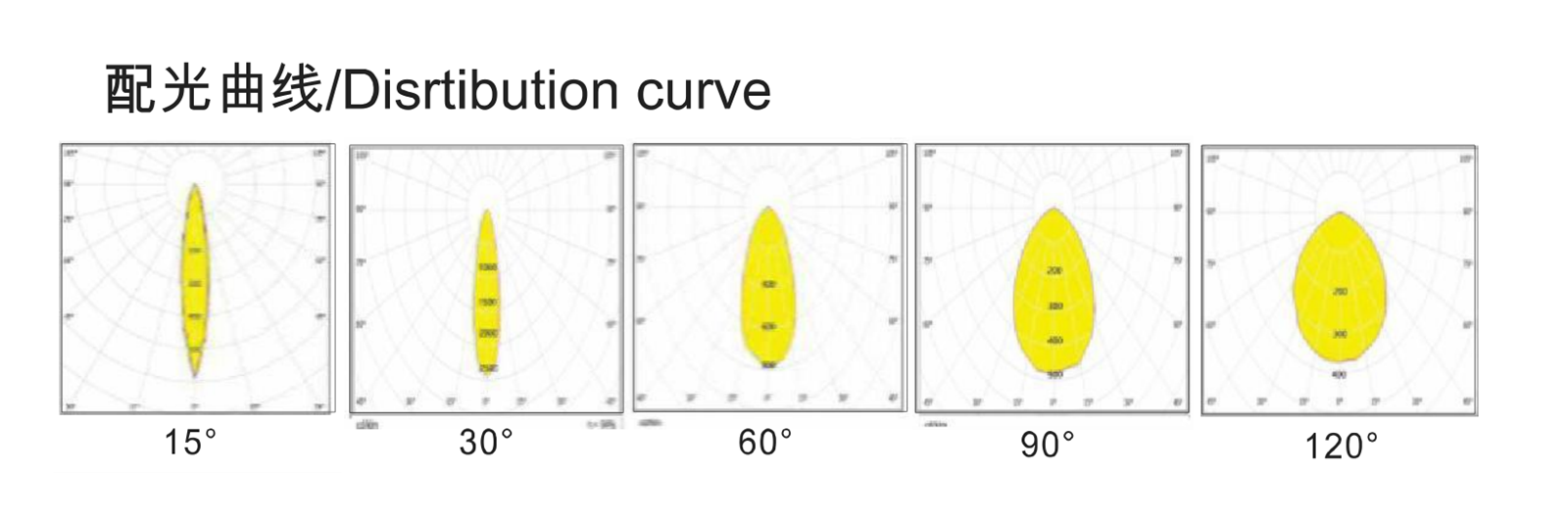

    Part of the light distribution curves
