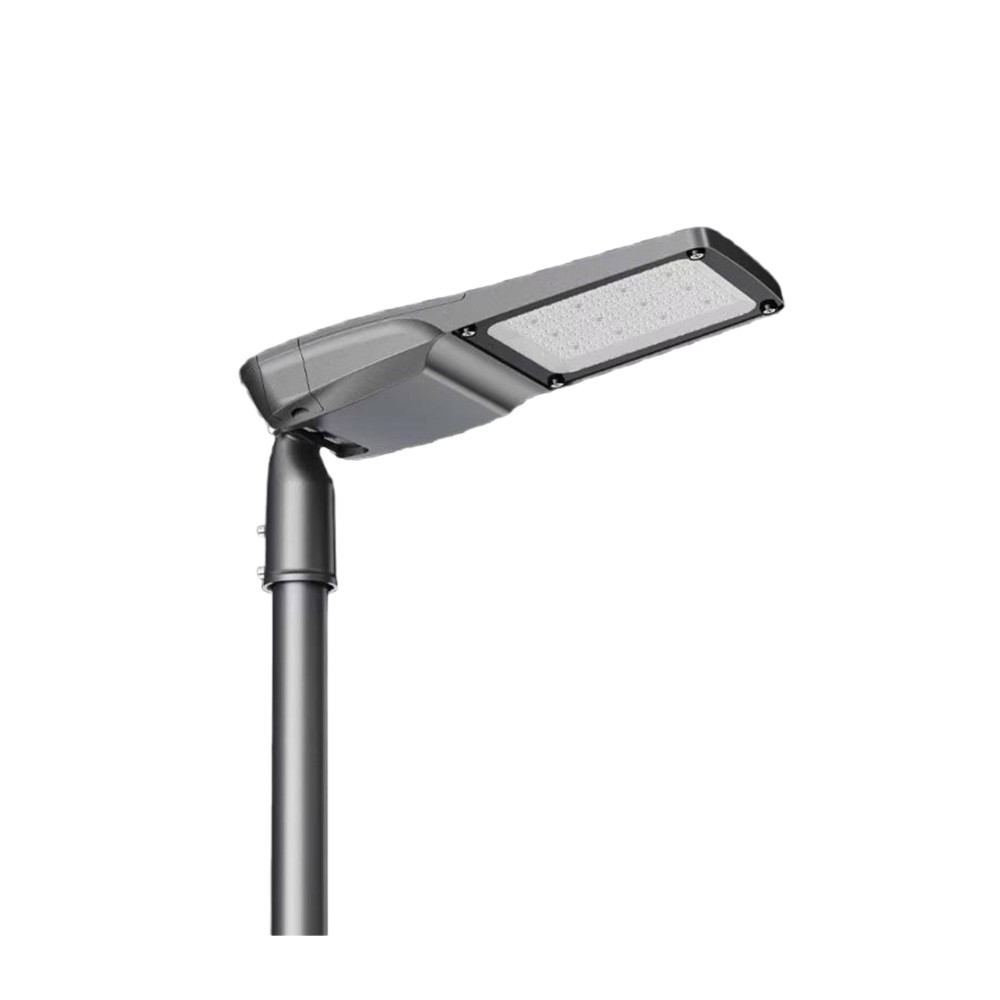

S-COB Low Glare Road Light|Ceramic Substrate Light Source|Equipped with ZHAGA Optics Module|High Lumen|60W-200W

S-COB Low Glare Road Light|Ceramic Substrate Light Source|Equipped with ZHAGA Optics Module|High Lumen|60W-200W

1. Application scenarios: lighting products are designed for a variety of scenarios and are suitable for main roads, secondary roads, branch roads and rural roads, ensuring efficient and uniform lighting effects in different environments to meet the diverse needs of users;

2. Light source features: Light source features: KWCOB's ceramic COB surface mount light source S-COB, low thermal resistance packaging process, significantly reduces the center temperature of the light source. Adopting a highly reflective ceramic substrate, there is no risk of silver plating sulfide, no resin bracket aging trouble, and a longer service life design;

3. Heat dissipation: Excellent heat dissipation solution, the lamp adopts a die-casting integrated solution, the light source array is dispersed, natural heat diffusion, and reduces the heat dissipation cost;

4. Energy efficiency: high-efficiency lighting design, light efficiency greater than 180lm/w, high cost-effective solution. In line with the trend of modern energy saving and environmental protection;

5. Matching matrix optical platform, a variety of optical solutions to meet the lighting needs of different scenes

6. Reliability: conventional 5-year warranty;

    Related Products

    Installation Type

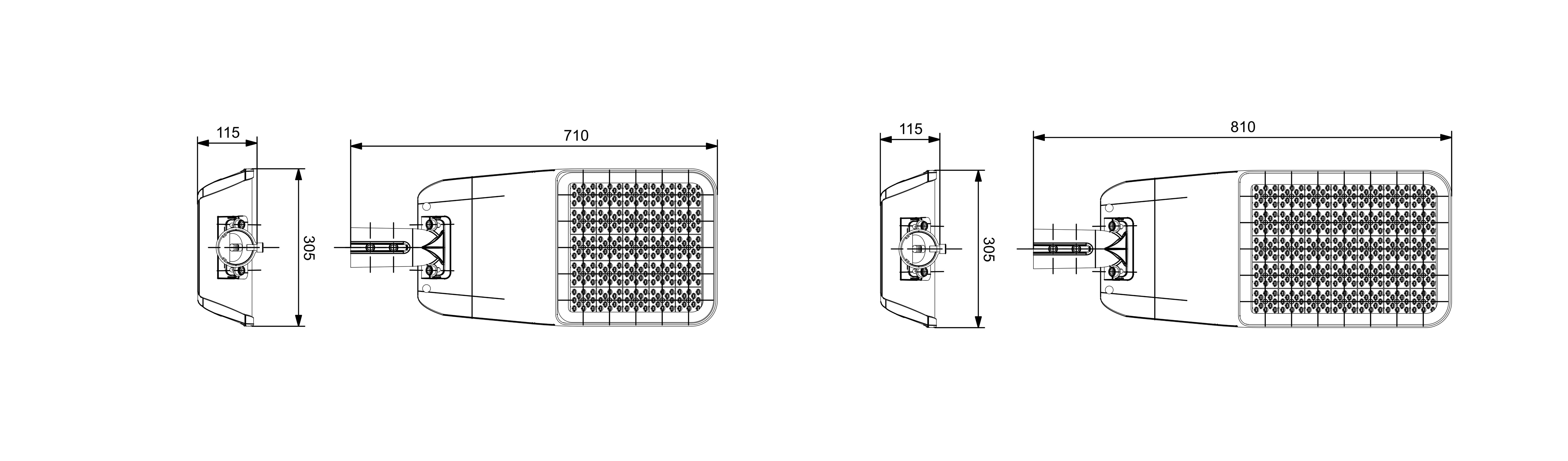

    Ceramic Substrate COB SMT light source road light 2 size

    Technical Parameters

    Item

    ZKCOB-M11LD03K100A

    ZKCOB-M11LD03K200A

    Power

    60-100W

    100-200W

     Luminous Efficiency

    ≥160lm/w

    ≥160lm/w

    Product Dimensions

    L710*W305*H115mm

    L810*W305*H115mm

    CRI(Ra)

    ≥70

     Color Temperature

    2700-6500K(Standard 3000K)

    IP Rating

    IP65

    The beam angle

    as attached curves(Other beam angle available by customization)

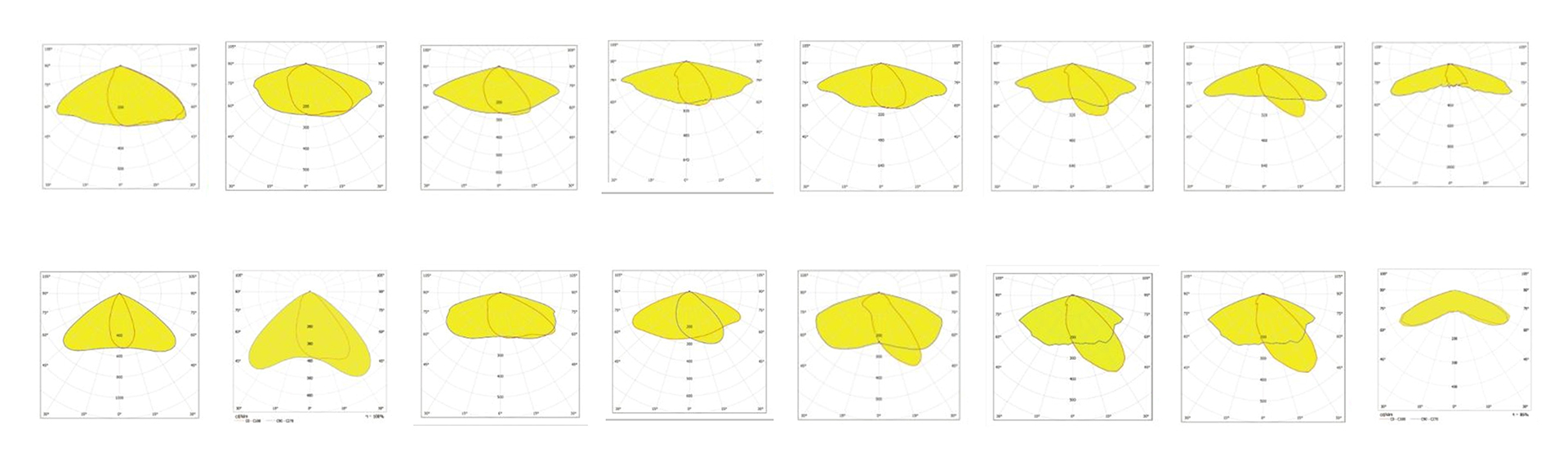

    Part of the light distribution curves

    Ceramic Substrate COB SMT light source road light 1 distribution curve (2)
