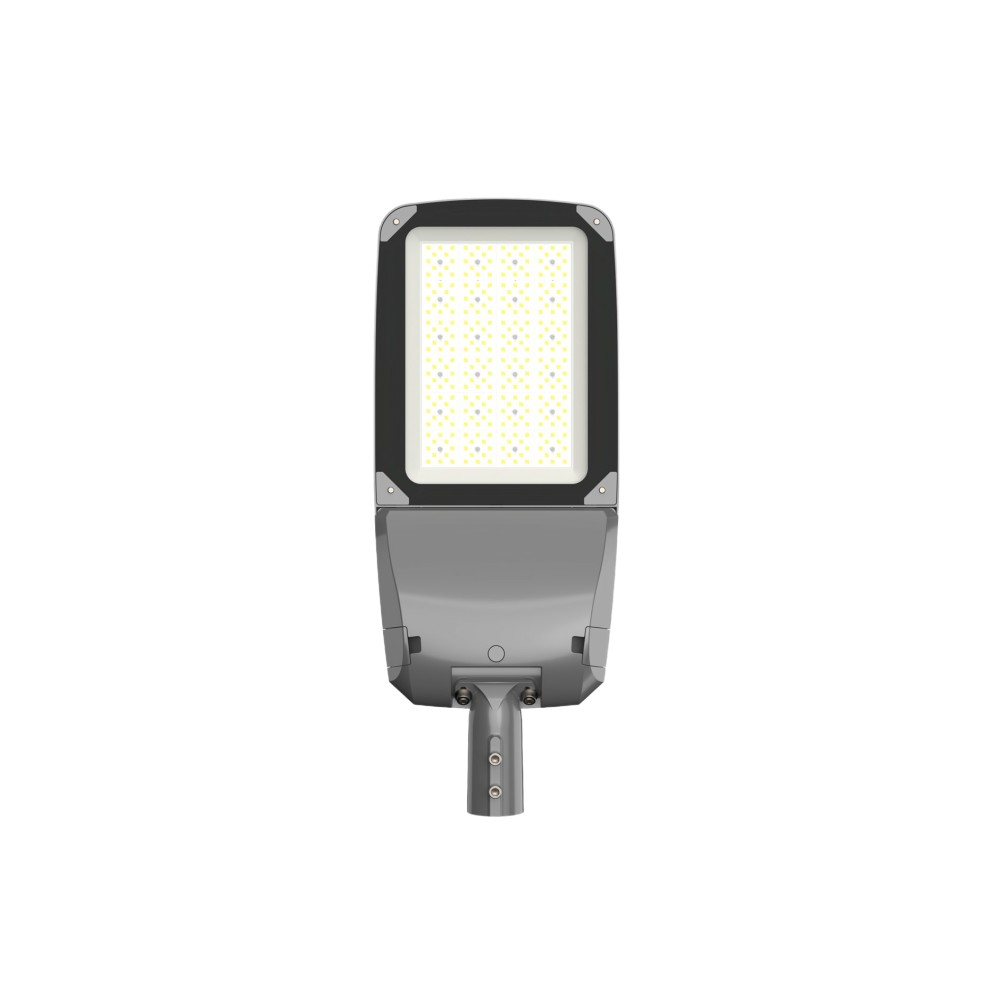

S-COB Low Glare Road Lamp|Ceramic Substrate Light Source|Equipped with ZHAGA Optics Module|High Lumen|Customized Optics|60W-200W

S-COB Low Glare Road Lamp|Ceramic Substrate Light Source|Equipped with ZHAGA Optics Module|High Lumen|Customized Optics|60W-200W

1. Application scenarios: The lamp design is suitable for a variety of scenarios, including main roads, secondary roads, branch roads and rural roads, ensuring high-quality lighting effects in different environments and meeting various lighting needs;

2. Light source characteristics: Light source characteristics: KWCOB's ceramic COB surface mount light source S-COB, low thermal resistance packaging process, significantly reduces the center temperature of the light source. Adopting a highly reflective ceramic substrate, there is no risk of silver plating sulfide, no resin bracket aging trouble, and a longer service life design;

3. Heat dissipation: Excellent heat dissipation solution, the lamp adopts a die-casting integrated solution, the light source array is dispersed, natural heat diffusion, and reduces the heat dissipation cost;

4. Energy saving: high-efficiency lighting design, light efficiency greater than 180lm/w, high cost-effective solution. In line with the trend of modern energy saving and environmental protection;

5. Matching matrix optical platform, a variety of optical solutions to meet the lighting needs of different scenes

6. Reliability: conventional 5-year warranty;

    Related Products

    Installation Type

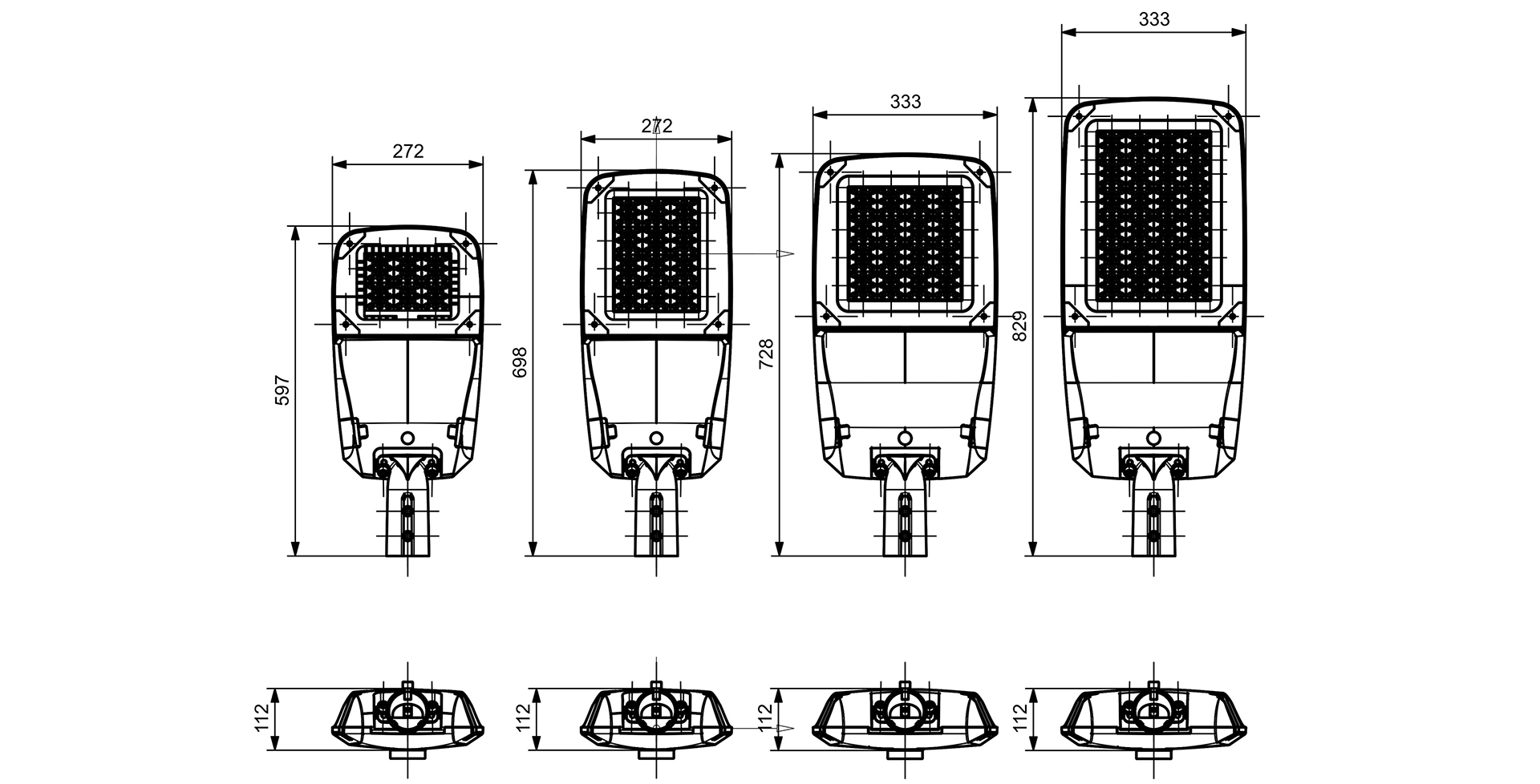

    Ceramic Substrate COB SMT light source road light 1 size

    Technical Parameters

    Item

    ZKCOB-M11LD03K100A

    ZKCOB-M11LD03K200A

    Power

    60-100W

    100-200W

     Luminous Efficiency

    ≥160lm/w

    ≥160lm/w

    Product Dimensions

    L710*W305*H115mm

    L810*W305*H115mm

    CRI(Ra)

    ≥70

     Color Temperature

    2700-6500K(Standard 3000K)

    IP Rating

    IP65

    The beam angle

    as attached curves(Other beam angle available by customization)

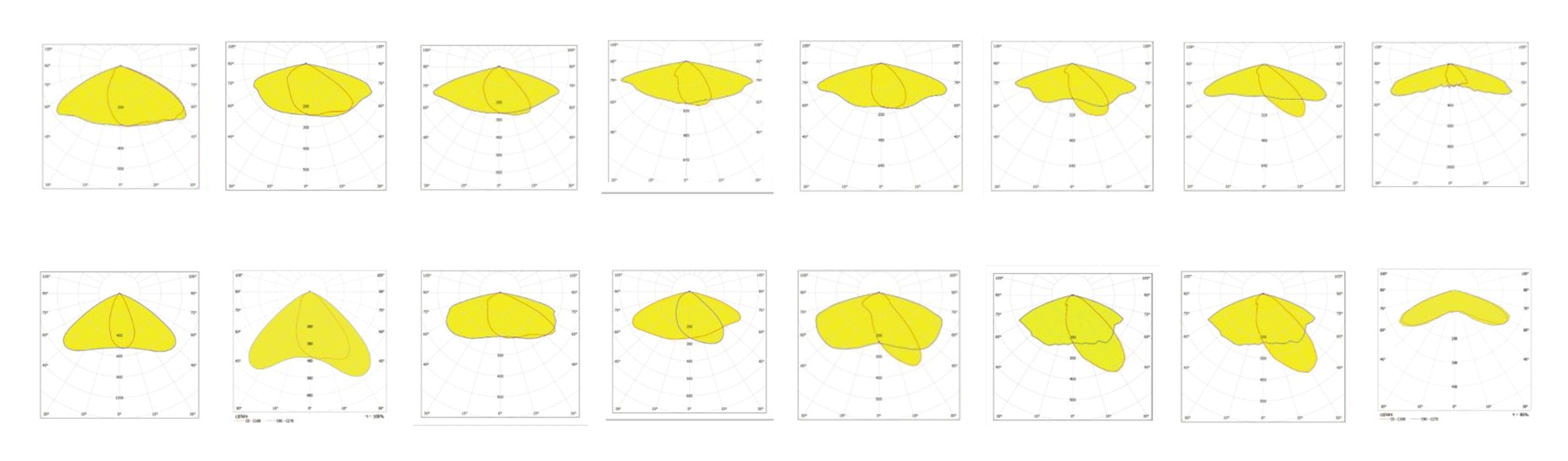

    Part of the light distribution curves

    Ceramic Substrate COB SMT light source road light 2 distribution curve
