SCOB Highbay Lamp| Ceramic Substrate SMT Light Source|Anti-sulfurization|Low Decay|High Lumen|Highly Energy-efficient|High Building|Aircraft Maintenance Hangar|Ultra-high Power|300W-1200W

SCOB Highbay Lamp| Ceramic Substrate SMT Light Source|Anti-sulfurization|Low Decay|High Lumen|Highly Energy-efficient|High Building|Aircraft Maintenance Hangar|Ultra-high Power|300W-1200W

1. Application scenarios: covers high-power lighting above 300W, used in airport maintenance warehouses, high-speed rail maintenance stations, production workshops, indoor gymnasiums, and outdoor stadium lighting;

2. Light source characteristics: KWCOB's ceramic COB surface mount light source S-COB, low thermal resistance packaging process, significantly reduces the center temperature of the light source. Adopting high-reflection ceramic substrate, there is no risk of silver plating sulfide, no resin bracket aging trouble, and longer service life design;

3. Heat dissipation: excellent heat dissipation solution, the lamp adopts die-casting integrated solution, the light source array is dispersed, natural heat diffusion, and reduces the heat dissipation cost.

4. Optics: high-efficiency lighting design, multiple optical angles design, meet the lighting needs of large spaces above 30 meters, in line with the trend of modern energy saving and environmental protection.

5. Reliability: conventional 5-year warranty;

    Related Products

    Installation Type

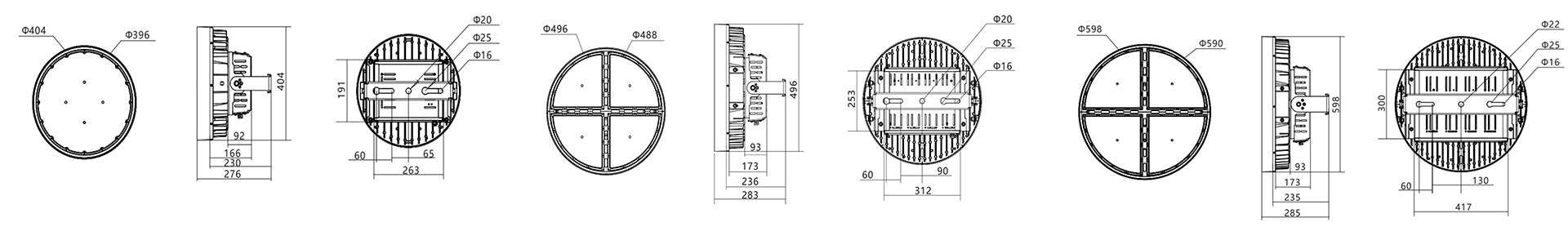

    Ceramic Substrate COB SMT light source high bay light2 size

    Technical Parameters

    Item

    KWCOB-G20HB01Y400A

    KWCOB-G20HB01Y500A

    KWCOB-G20HB01Y1200A

    Power

    300-400W

    500-600W

    800-1200W

     Luminous Efficiency

    ≥150lm/w

    ≥150lm/w

    ≥150lm/w

    Product Dimensions

    φ404*H276mm

    φ496*H283mm

    φ590*H285mm

    Net Weight

    11.5KG

    18.0KG

    23.0KG

    CRI(Ra)

    ≥70

     Color Temperature

    2700-6500K(Standard 4000K)

    IP Rating

    IP65

    The Beam Angle

    10°/30°/45°/60°/90°,Other beam angle available by customization

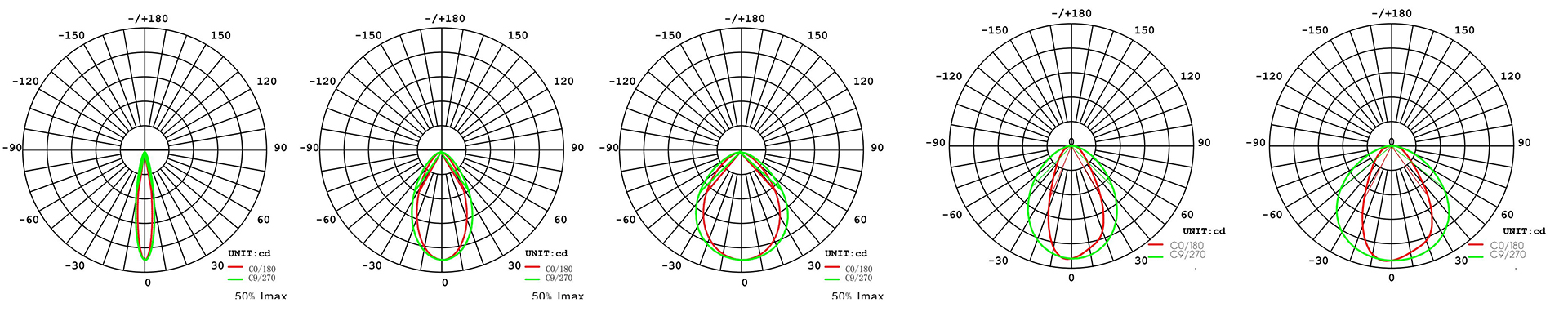

    Part of the light distribution curves

    Ceramic Substrate COB SMT light source high bay light2 distribution curve
