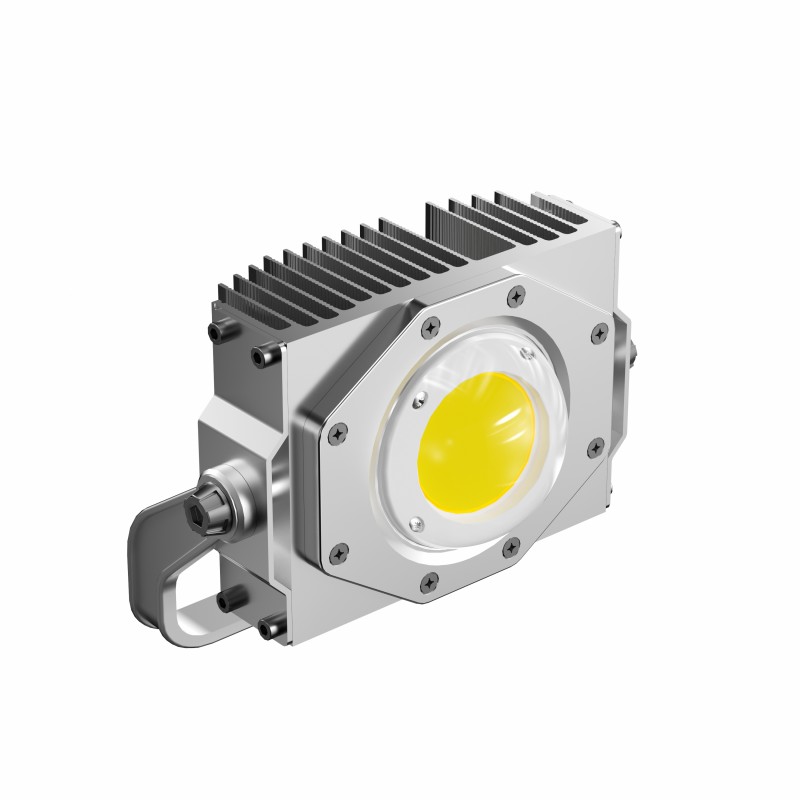

CAS KWCOB Lighting-LED module optics electrical and thermal management integrated lighting module——2023 Alighting Magic Lamp Award Best Product Award

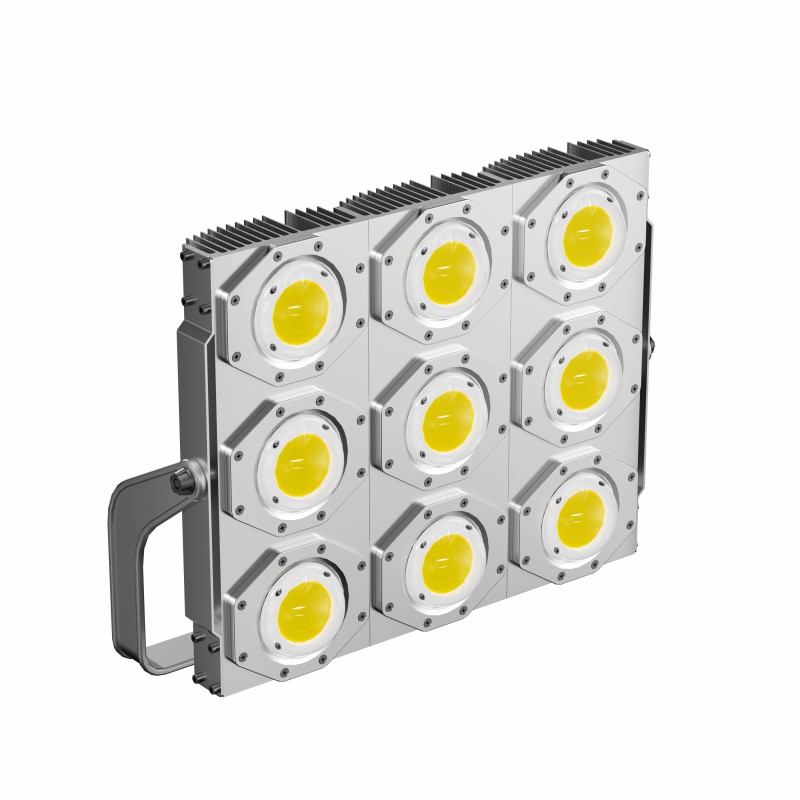

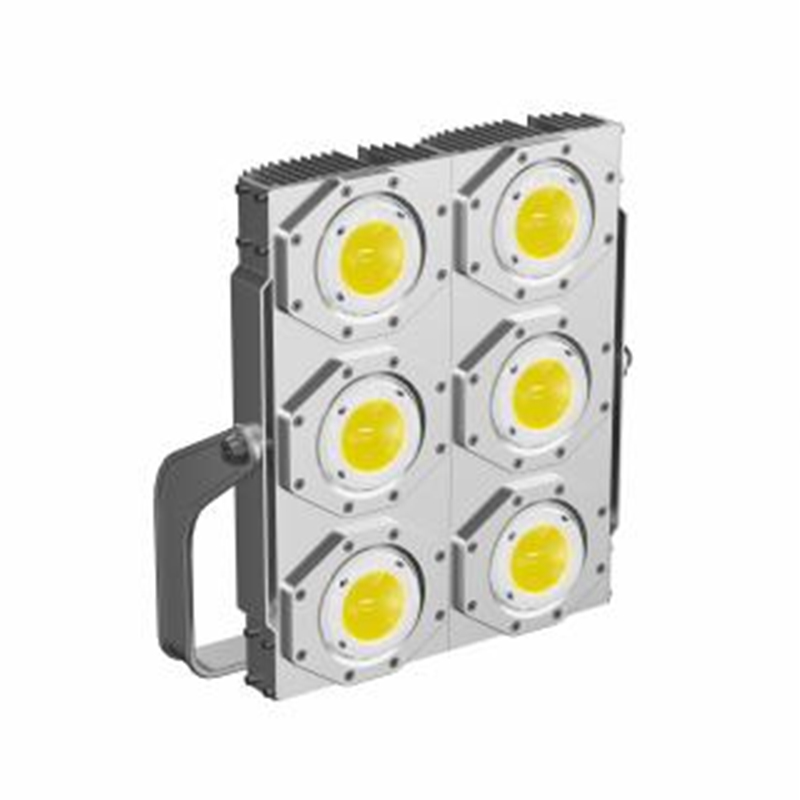

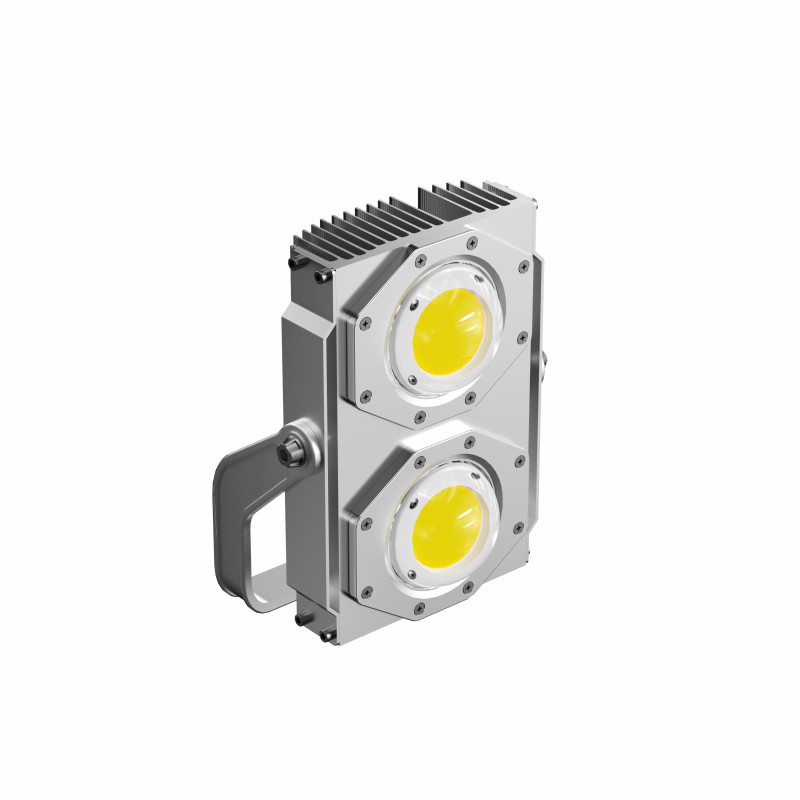

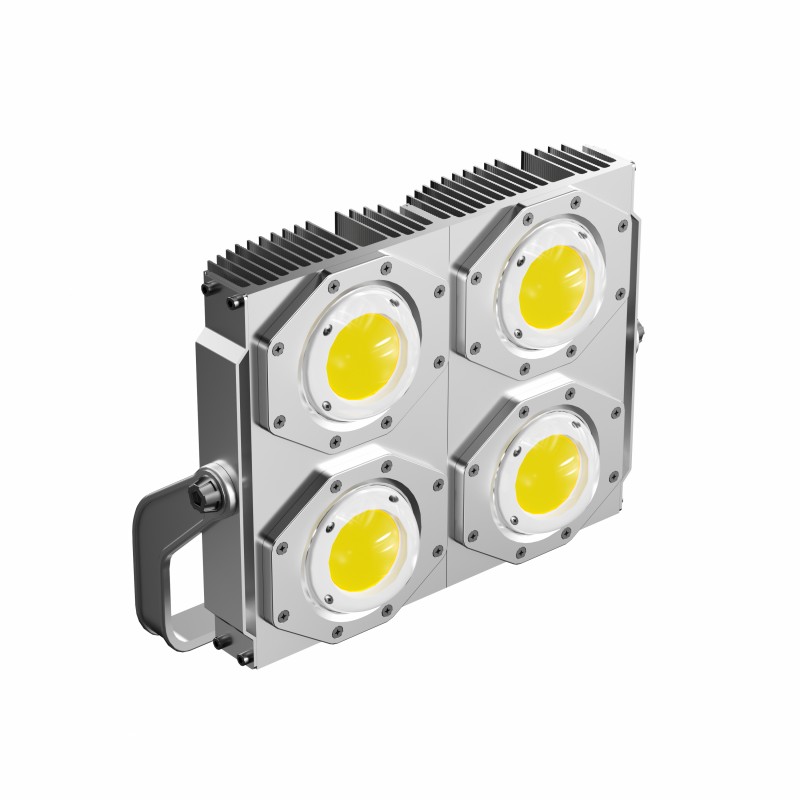

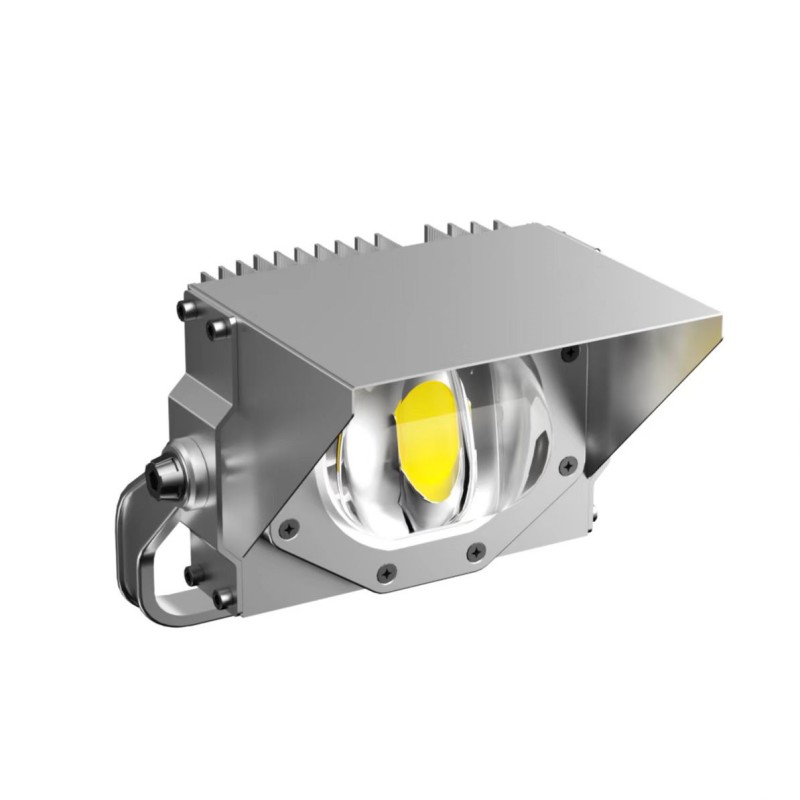

LED optics electrical and thermal management integrated modules meet the lighting products of roads, tunnels, floodlights and other scenes. They develop and design products that meet high light quality, high density and High cost efficiency, and solve the problems of light quality and product heat dissipation reliability of lighting scenes such as roads, tunnels and mid-pole floodlights;

1. Adopt COB light source and optical glass lens light distribution solution to solve the quality impact of yellowing and other quality effects of long-term use of products, overcome the product attenuation caused by aging of optical materials, and improve the service life;

2. COB light source and lens are conducive to optical design, optics are more precise, and the light cutting effect is better. The product solves the lighting quality such as low glare and illumination uniformity. The product application project can design an effective light cutting structure and effectively control the light at the far end of the lighting scene to ensure effective light output and improve lighting efficiency;

3. The power of a single module is 150W, and the phase change superconducting thermal conductivity technology is adopted to solve the heat conduction on a certain luminous area and ensure the quality of the light source.

1. Technical highlights

A. Beautiful appearance, simple and tasteful;

B. High-quality and accurate light distribution, meeting low glare and high-quality lighting requirements in different occasions;

C. High-quality heat dissipation design;

D. High cost efficiency;

E. COB light source and lens are conducive to optical design, the optics are more accurate, the light cutting effect is better, the product solves the lighting quality such as low glare and illumination uniformity, the product application project can design an effective light cutting structure, and the lighting scene can be effectively controlled at the remote end to ensure effective light output and improve lighting efficiency;

F. The COB light source and optical glass lens light distribution solution are used to solve the quality impact of yellowing and other products after long-term use, overcome the product limitation of optical material aging and attenuation, and increase the service life;

G. The power of a single module is 150W, and the phase change superconducting thermal conductivity technology is used to solve the heat conduction on a certain luminous area and ensure the quality of the light source.

2. Functional parameters

A. Power 150W; Product light effect: ≥140lm/W; Color temperature: 2700-6500K; Color rendering index: Ra=65/70/80/90;

B. Use COB integrated light source;

C. Application: lighting for roads, tunnels, building exterior walls, etc.

3. Product size: 200*165*230mm

4. Single module 150W, breaking through the current power of single module, solving the problem of reliability of high-power module application within a certain area

5. Material selection

A. Sealing fixings use die-cast aluminum and waterproof silicone rings;

B. Optics use tempered glass;

C. Hardware stainless steel screws, copper waterproof nuts, galvanized brackets, etc.

1. Beautiful appearance, simple and tasteful;

2. High-quality and accurate light distribution, meeting low glare and high-quality lighting requirements in different occasions;

3. High-quality heat dissipation design;

4. High cost efficiency;

5. COB light source and lens are conducive to optical design, with more accurate optics and better light cutoff effect. The product solves lighting quality problems such as low glare and uniform illumination. The product application project can design effective light cutoff structure and effectively control light at the remote end of the lighting scene to ensure effective light output and improve lighting efficiency;

6. Use COB light source and optical glass lens light distribution method Solution, solve the quality impact of yellowing and other problems caused by long-term use of products, overcome the attenuation caused by aging of optical materials, and increase the service life;

7. The power of a single module is 150W, and the phase change superconducting thermal conductivity technology is used to solve the heat conduction on a certain luminous area and ensure the quality of the light source;

8. The power of a single module is 150W; product light efficiency: ≥130lm/W; color temperature: 2700-6500K; color rendering: Ra=65/70/80/90;

9. Application occasions: lighting of roads, tunnels, building exterior walls, etc.

Key points of technical and process innovation:

1. The COB light source and optical glass lens light distribution solution are used to solve the quality impact of yellowing and other quality problems caused by long-term use of the product, overcome the product attenuation caused by aging of optical materials, and increase the service life;

2. COB light source and lens are conducive to optical design, the optics are more precise, and the light cutting effect is better. The product solves the lighting quality such as low glare and uniform illumination. The product application project can design an effective light cutting structure and effectively control the light at the remote end of the lighting scene to ensure effective light output and improve lighting efficiency;

3. The power of a single module is 150W, and the phase change superconducting thermal conductivity technology is used to solve the heat conduction on a certain luminous area and ensure the quality of the light source.

Comparison with similar products or technologies within China and abroad:

1. High-quality lighting, meeting the lighting standard requirements of uniform lighting and low glare in different scenes;

2. innovative, simple and elegant appearance;

3. High cost efficiency;

4. The power of a single module is 150W, which exceeds the power of the current single module and solves the problem of reliability of high-power module application within a certain area;

5. The module is 360 degrees adjustable, and heat dissipation is not affected.

Economic evaluation analysis:

1. The development of this product solves the heat conduction and heat dissipation problems of high-power modules, which is conducive to cost control in the same area;

2. The optical design with high light quality has good scene lighting effect and high light quality utilization, which reduces the investment of project cost;

3. The product has strong comprehensive usability and is used for street lights, floodlights, tunnel lights, etc., which is conducive to saving mold development costs.

Actual application cases and user evaluation opinions:

1. Fujian Fuhaichuang Factory Road Lighting Project;

2. Fujian Longyan Longlin Cement Factory Road Lighting Project;

3. Shenyang Airport Avenue Road Lighting and Crossroads Pole Lighting Project;

4. Sichuan Anxinrui Factory Area Lighting Project.

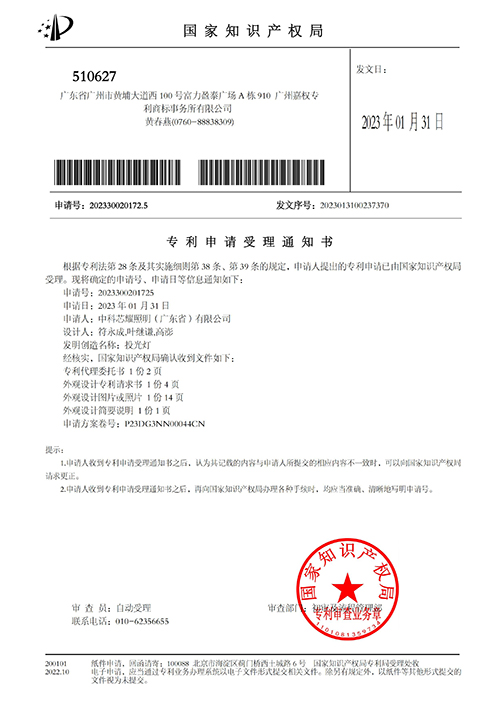

Awards and patents:

We hold 1 design patent

Application number: 202330020172.5

Name: floodlight

Introduction to the applicant:

CAS KWCOB Lighting Co., Ltd. is one of the first batch of key industry transformation companies of the model factory team of Songshan Lake Materials Laboratory of the Chinese Academy of Sciences(CAS). It is equipped with the scientific achievement transformation platform of Dongguan Advanced Ceramics and Composite Materials Research Institute. It has established a professional LED lighting company integrating R&D, design, production and technical services. Starting from the "COB" and illuminating the five continents, with the ingenuity of "we who are quarrying should have the vision of the cathedral", we insist on creating a good lamp for professional lighting, hoping to create customer value with social significance at an appropriate cost. Strive to establish a brand image of professional technical services. In different fields such as industrial special professional lighting, large space lighting, and stadium lighting, we have made further improvements than previous achievements by using our own technological advantages. Provide professional customers with the right solutions in harsh environments.

Provide professional customers with reliable solutions in important environments. Developed a series of high-power COB professional lamps: professional stadium lamp series, terminal and airport High Mast Lighting series, industrial high bay lamp, and explosion-proof lamp series.

The founder of the company has many years of experience in the industrialization of the technical achievements of the Chinese Academy of Sciences(CAS). It is the first team in China to realize the industrialization of fluorescent crystals from military to civilian use of laser crystal technology. It makes full use of the excellent thermal quenching characteristics of fluorescent crystal materials and focuses on the research of KWCOB integrated photothermal application technology. It achieves heat homogenization and smooth heat conduction channels through proprietary thermal structure technology in high-density space, solves the technical bottleneck of high-power lighting thermal structure, and achieves the reliability and stability of long-term use of high-power lighting, laying a technical foundation for the overall solution of 1000W-level professional lighting and maintaining its technological advantages.

The company is committed to providing overall solutions for industrial special environment LED explosion-proof lighting, indoor or outdoor lighting of large building spaces, and high-altitude lighting of industrial ports, terminals and airports. It provides overall solutions for professional lighting and energy-saving transformation and replacement solutions for various sports venues, and can provide application solutions and customized products for deep-sea lighting and underwater lighting for fisheries.

CAS KWCOB Lighting Lighting (Guangdong Province) Co., Ltd. adheres to the corporate philosophy of "technology-oriented, customer-first, integrity-based, and win-win cooperation" to provide users with considerate technical services and professional products and correct solutions for professional customers within China and abroad.
