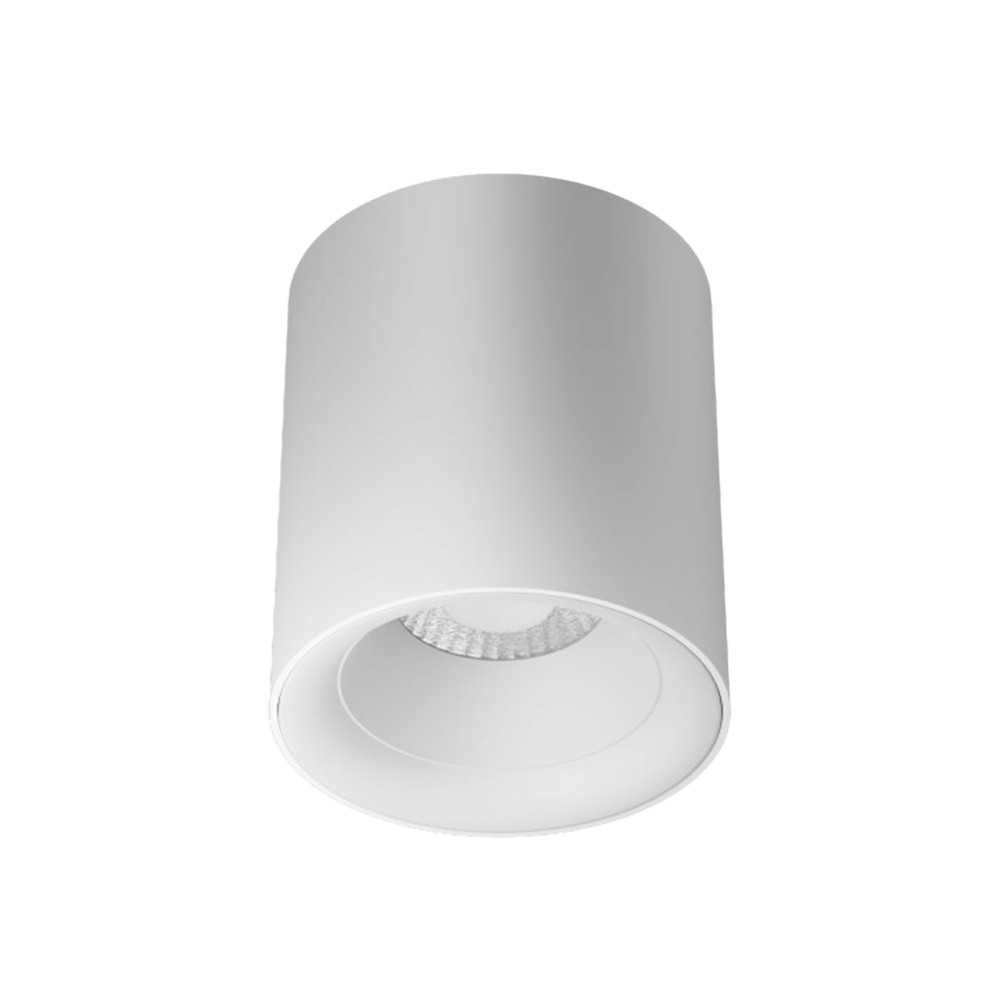

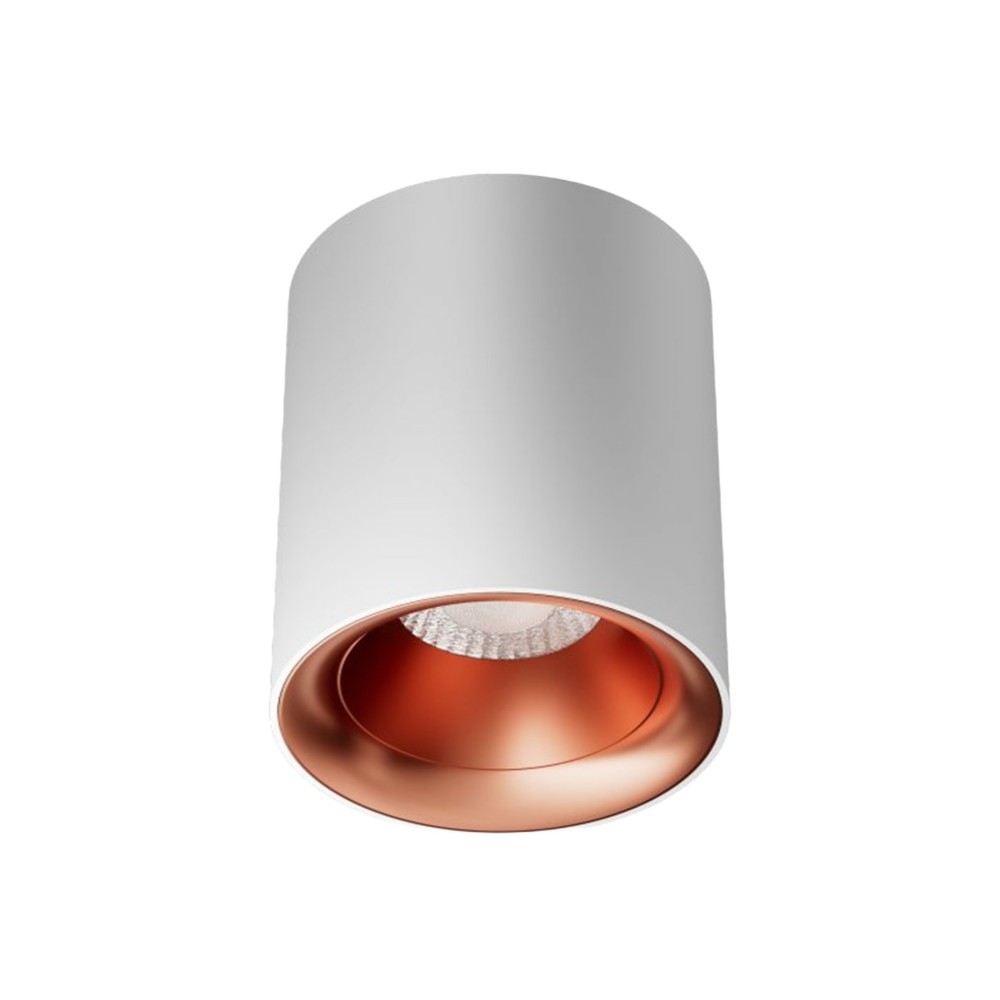

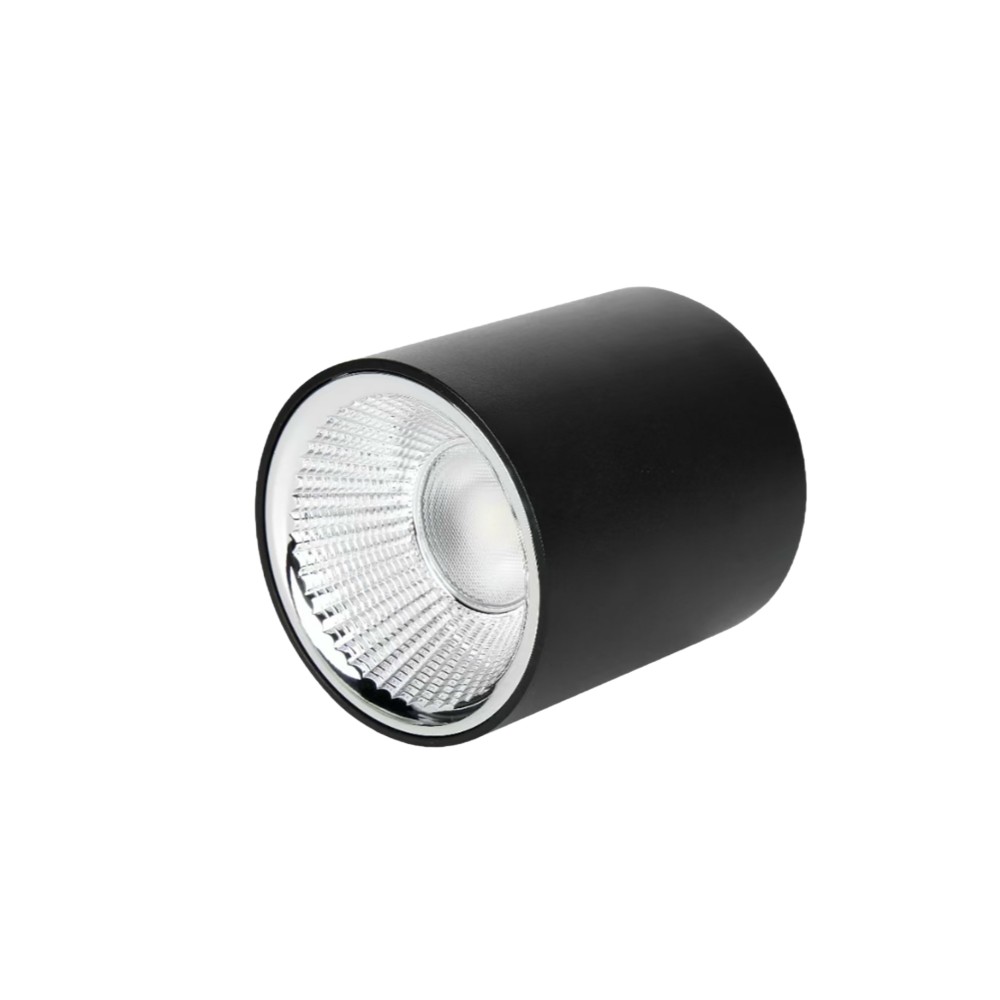

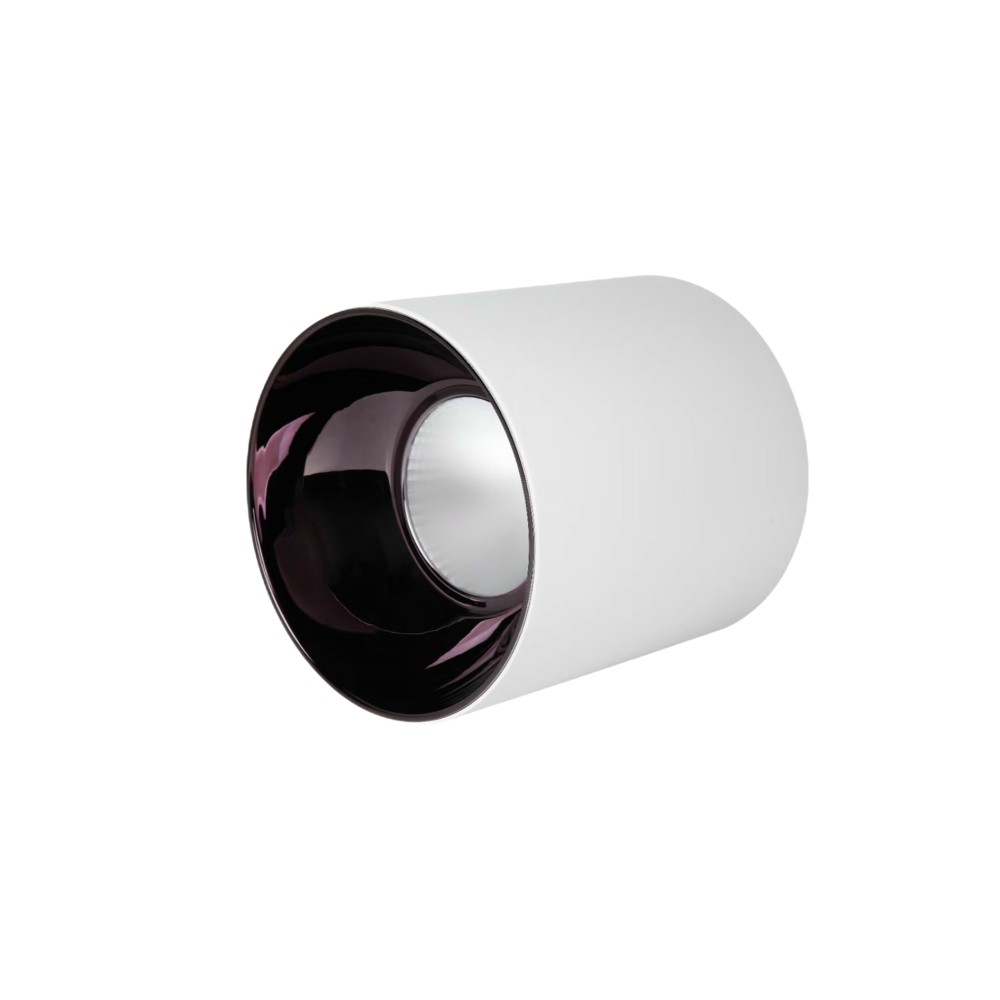

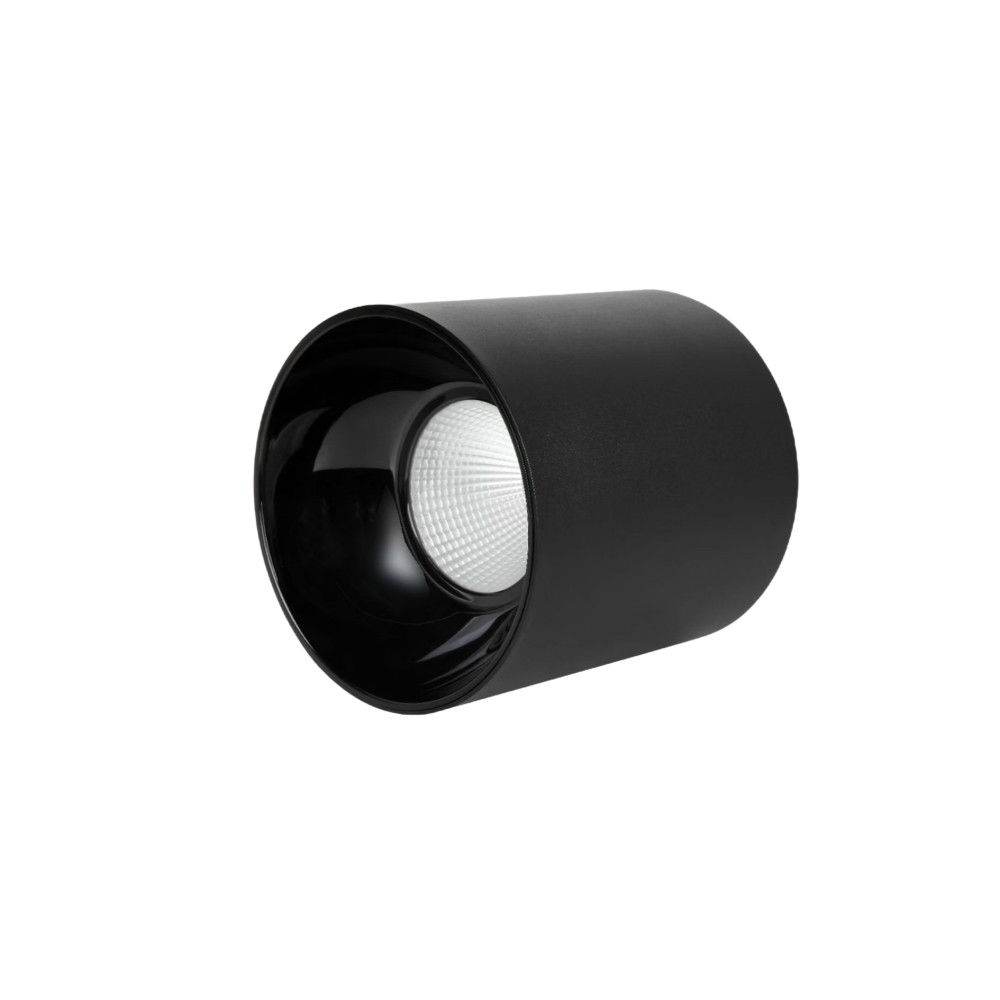

Low Glare Surface Mounted Downlight for Commercial and Industrial Space Lighting Needs

Low Glare Surface Mounted Downlight for Commercial and Industrial Space Lighting Needs

1. Application scenarios: indoor shopping malls, offices, hotels, exhibition halls and other large commercial spaces;

2. Light source characteristics: KWCOB new ceramics phosphor packaging 1000W-level light source packaging technology, low thermal resistance packaging process, reduce the center temperature of the light source, and significantly delay the light decay process;

3. Heat dissipation: Adopting die-casting integrated structure solution, central heat extraction combined with vertical fin structure design, with higher heat dissipation efficiency to ensure that the light source works at a safe temperature for a long time.

4. Optics: The light downlight has a variety of light distribution solutions, and the required optics can be customized to provide uniform and soft lighting effects;

5. Deep anti-glare design to improve comfort

6. Reliability: standard 5 years warranty

    Related Products

    Installation Type

    Low Glare Surface Mounted Downlight Installation Type

    Technical Parameters

    Item

    KWCOB-B10MT01Y030A

    KWCOB-B10MT01Y040A

    KWCOB-B10MT01Y050A

    KWCOB-B10MT01Y060A

    Power

    30W

    40W

    50W

    60W

     Luminous Efficiency

    ≥100lm/w

    ≥100lm/w

    ≥100lm/w

    ≥100lm/w

    Product Dimensions

    φ115mm*H150mm

    φ140mm*H162mm

    φ170mm*H180mm

    φ170mm*H180mm

    Net Weight

    0.9KG

    1.4KG

    2.0KG

    2.0KG

    CRI(Ra)

    80、90、95(Standard CRI 80)

     Color Temperature

    2700-6500K(Standard 4000K)

    IP Rating

    IP65

    The Beam Angle

    12°/24°/36°/40°/50°/Other beam angle available by customization

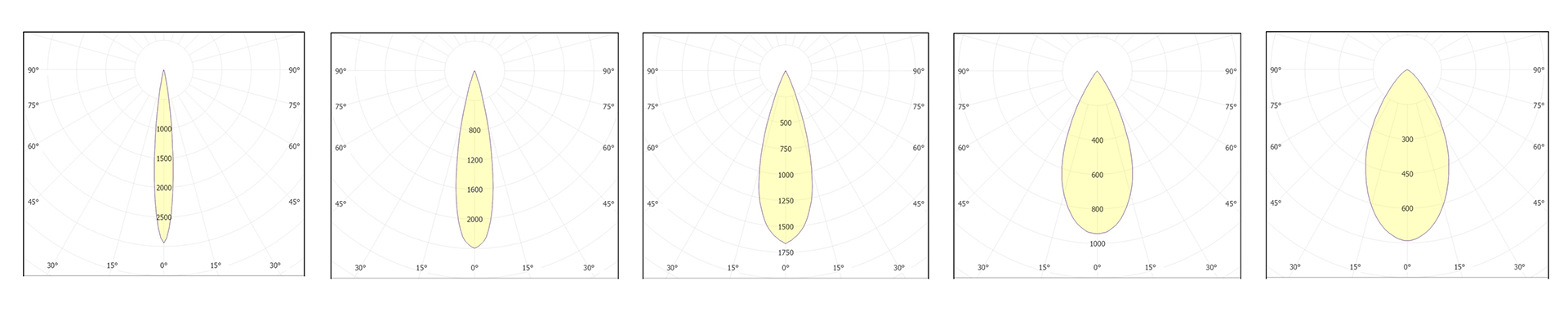

    Part of the light distribution curves

    Low Glare Surface Mounted Downlight Distribution Curve
