Deep Anti-glare Recessed Downlight- suitable for commercial lighting

Deep Anti-glare Recessed Downlight- suitable for commercial lighting

Adaptation to multiple scenarios: specially customized for large commercial spaces such as indoor shopping malls, high-end offices, star-rated hotels, art exhibition halls, etc., accurately matching multiple lighting needs to create an ideal light environment.

Advanced light source technology: equipped with KWCOB new ceramics phosphor light source, with high-voltage resistant ceramic substrate as the carrier, low thermal resistance packaging process, effectively reducing the center temperature of the light source, delaying the light decay process, and providing constant illumination.

Efficient heat dissipation design: aluminum integrated die-casting, up and down convection heat dissipation structure, high-power die-cast downlights above 50W can also achieve efficient heat dissipation.

Excellent optical structure: deep anti-glare structure design, effectively controlling glare, meeting the light quality requirements of high-end commercial space lighting.

Full power series: the most complete power and size combination, power range 10W-80W, face ring caliber covers φ90-φ350, a total of nine specifications.

Quality is trustworthy: standard 5 years warranty service.

    Related Products

    Installation Type

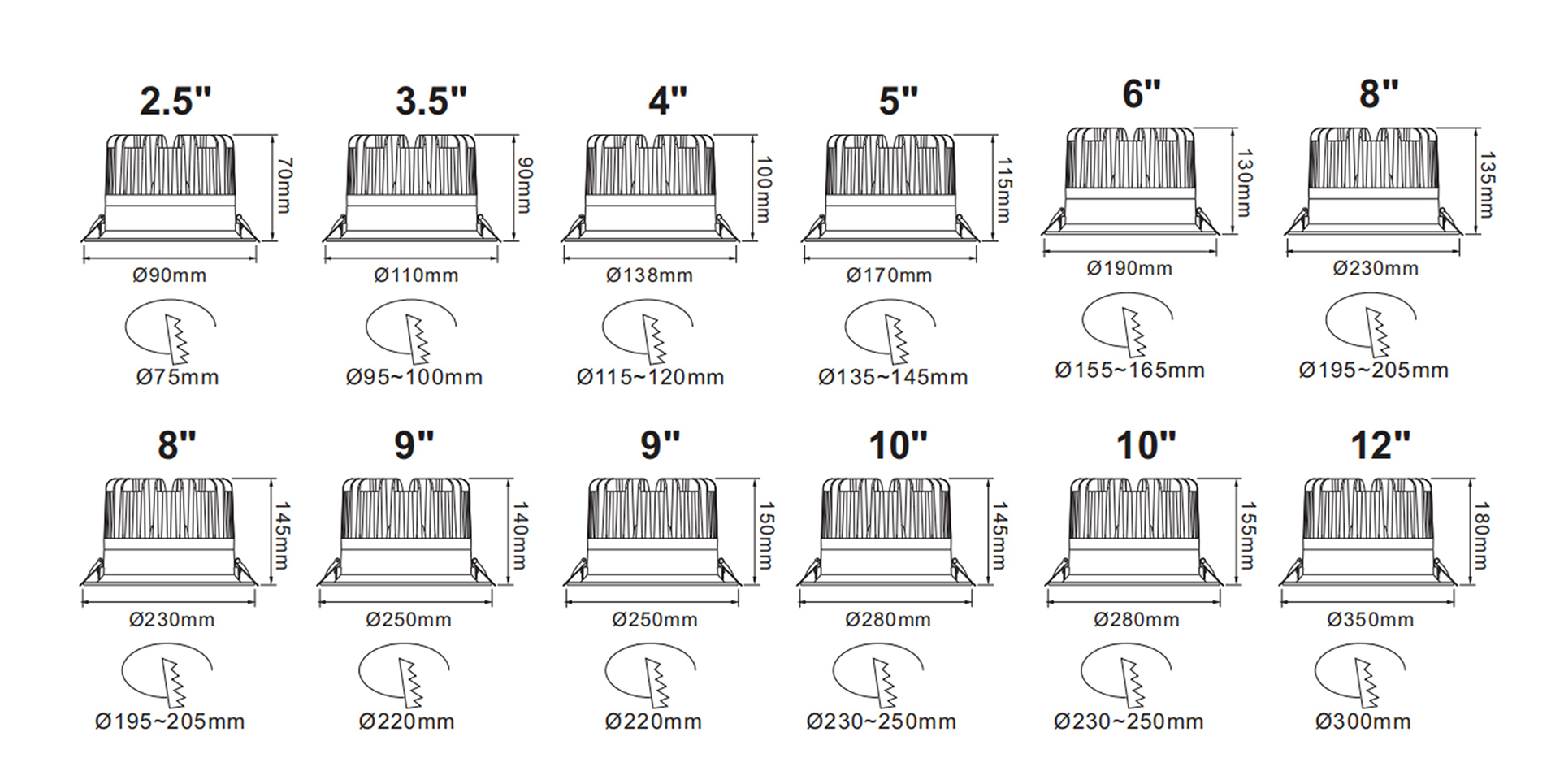

    Deep Anti-glare Recessed Downlight size

    Technical Parameters

    Item

    KWCOB-B20QR04Y010A

    KWCOB-B20QR04Y020A

    KWCOB-B20QR04Y030A

    KWCOB-B20QR04Y040A

    KWCOB-B20QR04Y050A

    KWCOB-B20QR04Y060A

    KWCOB-B20QR04Y070A

    KWCOB-B20QR04Y080A

    Power

    10W

    20W

    30W

    40W

    50W

    60W

    70W

    80W

     Luminous Efficiency

    ≥100lm/w

    ≥100lm/w

    ≥110lm/w

    ≥110lm/w

    ≥110lm/w

    ≥110lm/w

    ≥120lm/w

    ≥120lm/w

    Product Dimensions

    φ90*H70mm

    φ110*H90mm

    φ138*H100mm

    φ170*H115mm

    φ190*H130mm

    φ230*H135mm

    φ230*H135mm

    φ250*H150mm

    Cutout Diameter

    φ75mm

    φ95mm

    φ115-125mm

    φ135-145mm

    φ155-165mm

    φ200mm

    φ200mm

    φ220mm

    Net Weight

    0.2KG

    0.35KG

    0.52KG

    0.84KG

    1.0KG

    1.4KG

    1.4KG

    1.4KG

    CRI(Ra)

    80、90、95(Standard CRI 80)

     Color Temperature

    2700-6500K(Standard 4000K)

    IP Rating

    IP65

    The Beam Angle

    24°/50°/Other beam angle available by customization

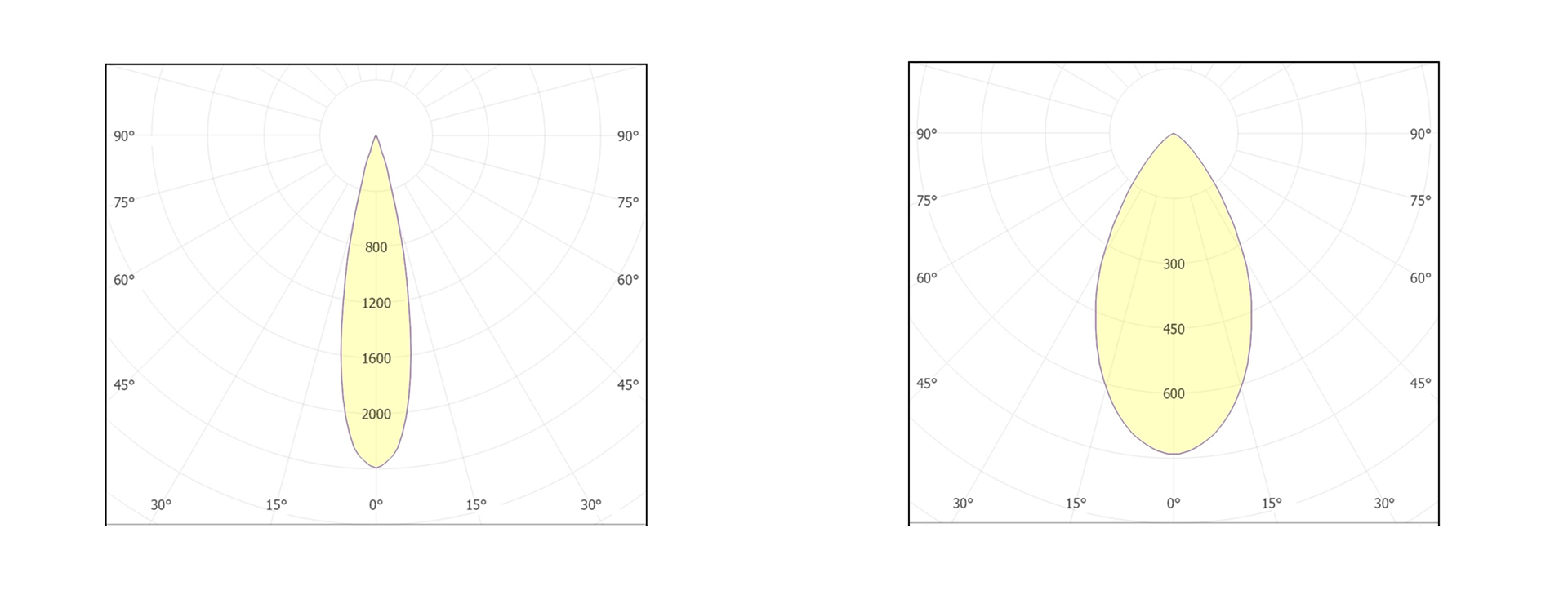

    Part of the light distribution curves

    Deep Anti-glare Recessed Downlight distribution curve
