Customized High Power Square Deep Anti-glare Surface Mounted Downlight

Full scene adaptation, reshaping the benchmark of commercial lighting

Tailored for large commercial spaces such as airport terminals, high-speed railway stations, auditoriums, exhibition halls, commercial complexes, etc., accurately meeting the stringent lighting requirements of various scenes

Advanced light source technology, customizable

KWCOB new ceramics phosphor 1000W-level low thermal resistance packaging process, low thermal resistance packaging process, reduce the center temperature of the light source, and significantly delay the light decay process.

Innovative heat dissipation architecture, customizable

Strengthen the heat transfer solution of the central heat extraction structure, optimize the temperature uniformity of the radiator, power coverage 80W - 200W+, support one-to-one replacement of old downlights of international brands, and easily fill the market gap.

Precise optical configuration, customizable

Select high-quality optical materials such as mirror aluminum and glass windows, excellent weather resistance, and good maintenance of constant illumination.

Deep anti-glare design

Innovative deep anti-glare design, anti-glare angle>35°, achieve lower UGR (unified glare value), and create a comfortable and glare-free visual experience for users.

Ultra-long warranty commitment, customizable

8-10 years long-life warranty customized solution.

Why choose us

Ø Deep Anti-Glare Design：KWCOB light source has high power and small emitting surface, with optical design advantages. The anti glare cutting angle is greater than 35 degrees, providing a low glare and high comfort lighting environment；

Ø High-power fills the gap in the large-space lighting market：A more flexible lighting solution for high-power tube lights, covering the full power range of 50W-200W, and customizable product solutions for 200W and above；

Ø The design employs mirror reflector cups and glass lenses for optics, avoiding the use of PC and PMMA plastic optical materials, ensuring the long service life of optical components is not constrained by material aging；

Ø Mature light source packaging technology：

n Fluorescent Crystal New Materials: Excellent Thermal Quenching Characteristics, Higher Light Conversion Efficiency, Lower Attenuation；

n Independent packaging patent technology: Fluorescent crystal kilowatt level COB light source packaging technology invention team；

n Super high conductivity heat disspation technology: high heat conductivity aluminum strengthening center for heat extraction, providing reliable heat dissipation for high-power COB；

n We can provide aluminum substrate COB and ceramic substrate COB light sources, which can be replaced and adapted to high-voltage isolation and non isolation drivers, filling the gaps in the lamp life cycle

Ø Long lifespan cycle: can provide customized products with a lifespan of 5-10 years；

Ø High protection design: can provide personalized customization for IP65-IP67 protection requirements and adapt to more environmental requirements；

Ø Personalized customization development: OPM specializes in designing customized services, focusing on providing full lifecycle cost reduction solutions for large-scale commercial spaces worldwide；

Installation Type

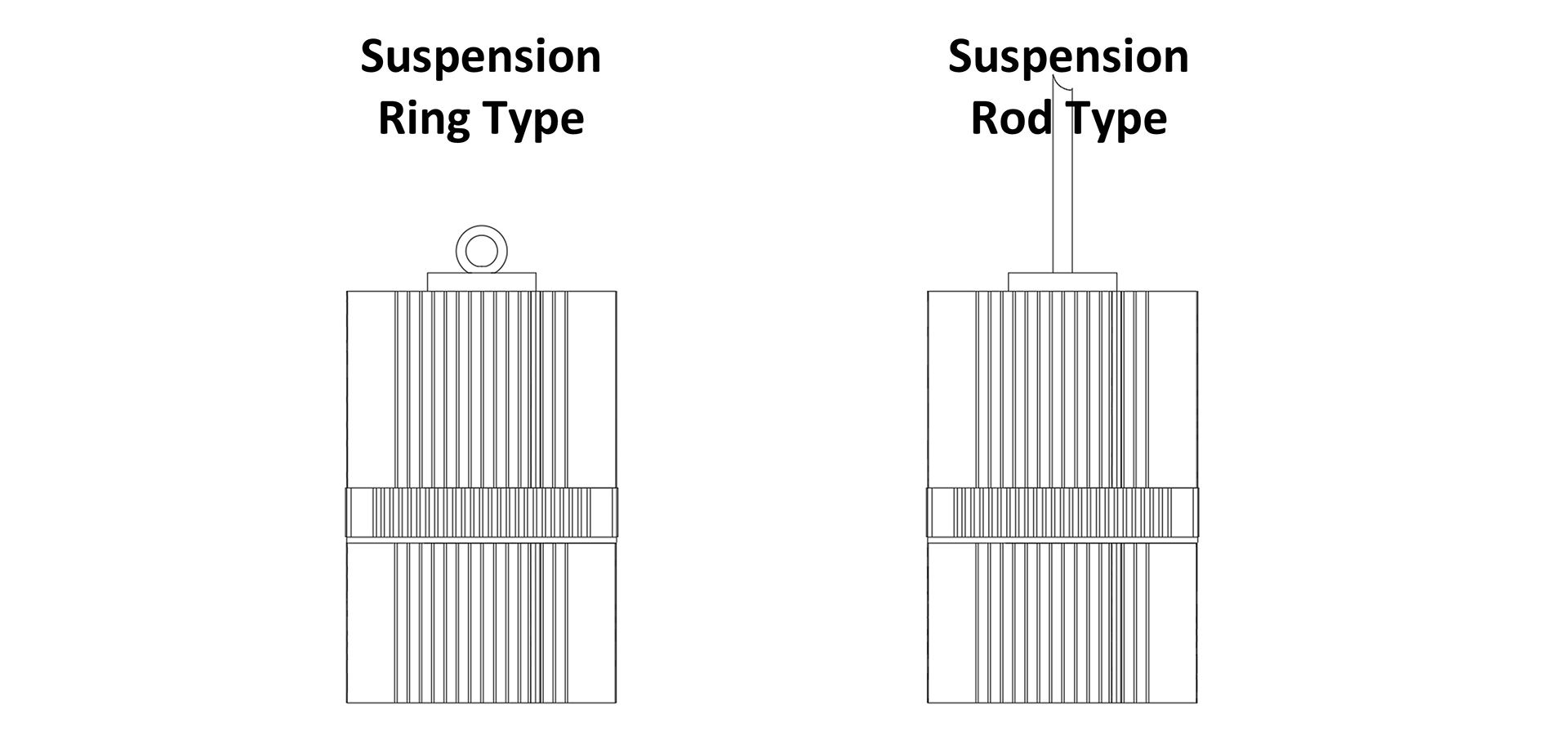

Customized High Power Square Deep Anti-glare Surface Mounted Downlight installation

Technical Parameters

Item	KWCOB-C10MT01F080A	KWCOB-C10MT01F100A	KWCOB-C10MT01F120A
Power	80W	100W	120W
Luminous Efficiency	≥130lm/w	≥130lm/w	≥130lm/w
Net Weight	6.9KG	7.1KG	7.5KG
Product Dimensions	L220W220H350mm	L220W220H350mm	L220W220H350mm
CRI(Ra)	80、90、95（Standard CRI 80）
Color Temperature	2700-6500K（Standard 4000K）
IP Rating	IP65
The Beam Angle	30°/35°/40°/68°/Other beam angle available by customization

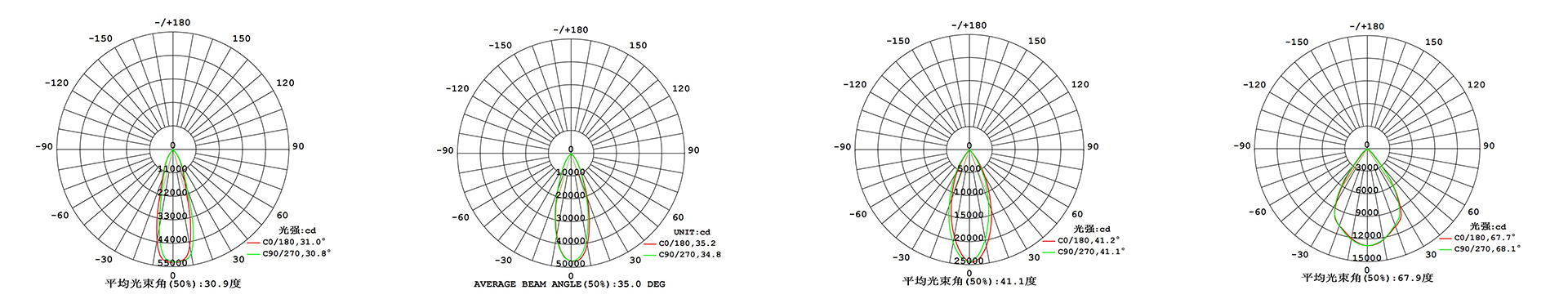

Part of the light distribution curves

Customized High Power Square Deep Anti-glare Surface Mounted Downlight distribution
